Product introduction:
Henan Taiguo Boiler Product Co., Ltd., founded in 1976, is a professional manufacturer, engaged in the research, development, production, sales and service of steam boiler, hot water boiler, hot oil boiler, and hot air boiler. Product production adopts technologies such as cutting, rolling plates, drilling, and cylindrical welding. We obtained ISO 9 0 0 1, ISO 1 4 0 0 0 1, C E, SGS, EAC certification. Our boilers are sold to 108 countries around the world.
We also sell various gas/oil burners, infrared gas burners, and different brands in China and foreign brands. We have obtained a strong team that can be trusted and follows the contractor to ensure the quality of the product, have various operating characteristics, short -term profits and more product sales principles, and win the trust of customers.
Product advantage:

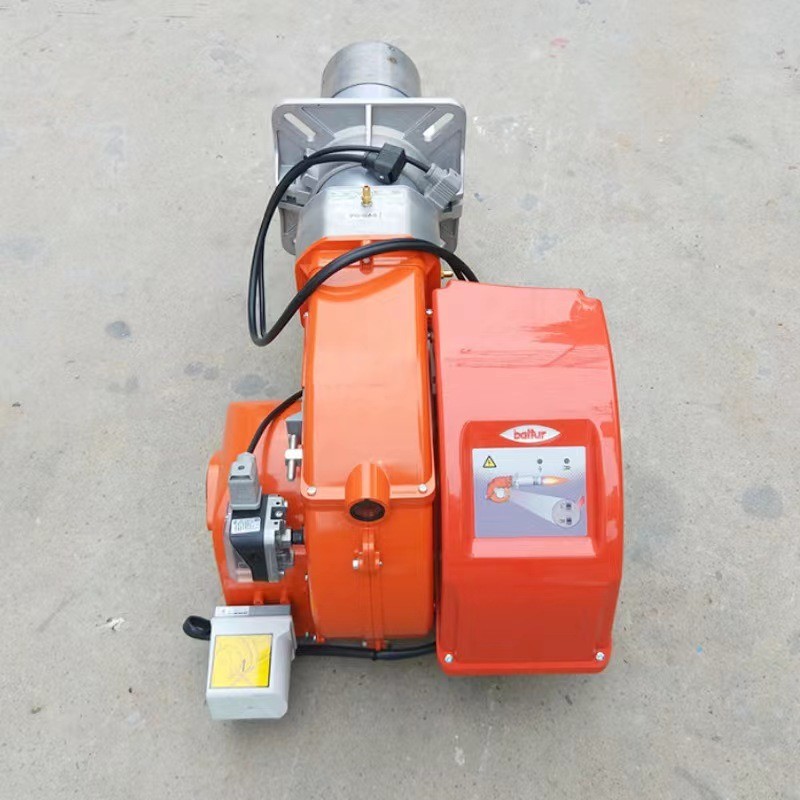

A. The burner is made of integral cast aluminum shell.
B, the fan has a special structural design with strong pressure resistance, which can not only make the burner installed on the semi-positive pressure and positive pressure boiler, but also can operate safely.
C. The sliding connection flange of the burner allows the installer to install the burner in the exact position for the furnace and connect them precisely.
D. The structure of the combustion head enables the burner to obtain the best combustion ratio at each point within its operating range
E, electronic equipment control the entire operation process and safety guarantee function.
Technical parameter:
| Model | TBL 85P
TBL 85P
DACA | TBL 105P
TBL 105P
DACA | TBL 130P
TBL 130P
DACA | TBL 160P
TBL 160P
DACA | TBL 210P DACA |
Thermal power most kW
Minimum kW | 850 | 1,050 | 1,300 | 1,600 | 2,100 |
| 200 | 320 | 400 | 500 | 800 |
| Operation mode | Two -stage fire |
| NOx emission mg/kWh | < 185 (Classe II EN 267) |
Motor kW
r.p.m. | 1.1 | 1.5 | 2.2 | 2.2 | 3 |
| 2,800 | 2,800 | 2,800 | 2,800 | 2,800 |
| * Consumption power kW | 1.50 | 1.90 | 2.60 | 2.60 | 3.40 |
| safety | A 400 V | 6 | 6 | 10 | 10 | 16 |
| Ignition transformer | 2 x 5 kV - 30 mA - 230 V/ 50 Hz |
| Voltage | 3N ~ 400 V ±10%- 50Hz |
| Protection level | IP 40 |
| Flame detection | Photoresistance |
| ** noise dBA | 73 | 75.5 | 79 | 79 | 87 |
| Weight kg | 82 | 88 | 92 | 92 | 95 |
| Maximum fuel viscosity (light oil) | 5.5 cst/20°C - 1.5° E / 20°C |
Flow rate most kg/h
Minimum kg/h | 71.6 | 88.5 | 109.6 | 134.9 | 177 |
| 16.9 | 27 | 33.7 | 42.2 | 67.4 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
