Equipment Overview:
The softener is a sodium ion exchanger, which is composed of an ion exchange pressure vessel (or ion exchange column), a sodium type positive resin, a multi-way valve and a salt box regeneration system.
The shell of the ion exchange column (device) is generally made of hard polyvinyl chloride (PVC), hard polyvinyl chloride composite glass (PVC-FRP), Plexiglass (PMMA), plexiglass composite transparent glass steel (PMMA-FRP), steel liner (JR), stainless steel liner and other materials.
Conditions of use:
1. Working pressure: 0.2-0.6MPa
2. Raw water hardness: ≤6mmol/L(if raw water hardness >6mmol/L, lime softening should be used first)
3. Raw water temperature: 5℃-50℃
4. Power source: AC220V, 50Hz; Power: 10-40W
5. Water hardness: ≤0.03mmol/L
Equipment characteristics:
1. High degree of automation, stable water supply conditions, long service life, automatic, no manual intervention.
2. Regeneration does not require acid and alkali, just add salt regularly, and the salt content in the wastewater is the same as that in the water.
3. High efficiency, low energy consumption and economical operation cost.
4. Compact and reasonable equipment structure, easy operation and maintenance, small footprint, saving investment.
5. Easy to use, easy to install, debug and operate, stable performance of control components.
Technical parameter:
| model number | Treated
water volume T/H | Resin tank specification×quantity | Salt shaker x number | Equipment size (mm) |
| YF-0.5 | 0.5T/H | 200*1100×1 | 340*700×1 | 600*400*1200 |
| YF-1 | 1T/H | 250*1370×1 | 340*700×1 | 800*500*1500 |
| YF-2 | 2T/H | 300*1320×1 | 340*700×1 | 900*500*1500 |
| YF-3 | 3T/H | 350*1650×1 | 390*850×1 | 1000*500*1800 |
| YF-4 | 4T/H | 400*1650×1 | 500*1020×1 | 1100*700*1800 |
| YF-6 | 6T/H | 530*1750×1 | 500*1020×1 | 1300*900*2000 |
| YF-8 | 8T/H | 600*1850×1 | 580*1200×1 | 1600*1000*2100 |
| YF-10 | 10-12T/H | 750*1850×1 | 730*1310×1 | 2000*1200*2150 |
| YF-15 | 15T/H | 900*1850×1 | 875*1350×1 | 2300*1500*2400 |
| YF-20 | 18-22T/H | 1000*1850×1 | 980*1400×1 | 2500*2200*2400 |
| YF-35 | 25-35T/H | 1200*2400×1 | 1300*1310×1 | 3000*2700*3000 |
| YF-50 | 50T/H | 1500*2400×1 | 1300*1310×1 | 4000*2700*3000 |
Scope of application:
Widely used in chemical, petroleum, manufacturing, air conditioning, central heating and other industries. Mainly used for boiler, thermal power station, chemical, light industry, textile, biology, electronics, atomic energy and pure water treatment of the front treatment, industrial production required for hard water softening, deionized water preparation occasions, can also be used for food decolorization purification, precious metals, chemical raw materials recovery, electroplating wastewater treatment.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
|
|

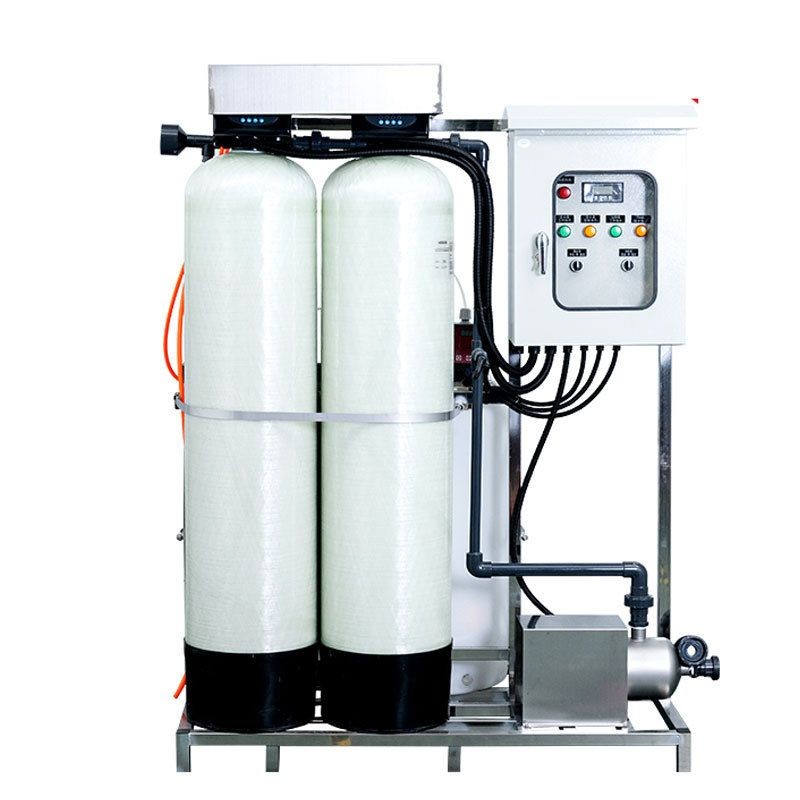

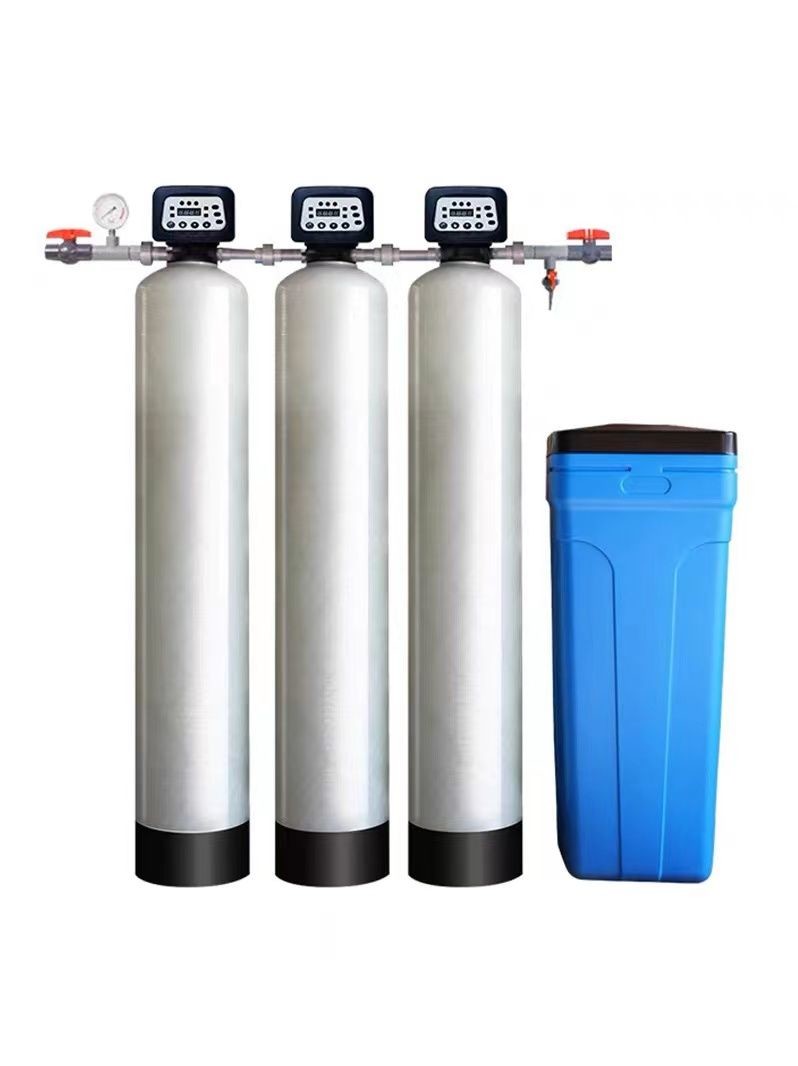

Industrial Softener System Compact and Reasonable Structure for Easy Maintenance Images
|
