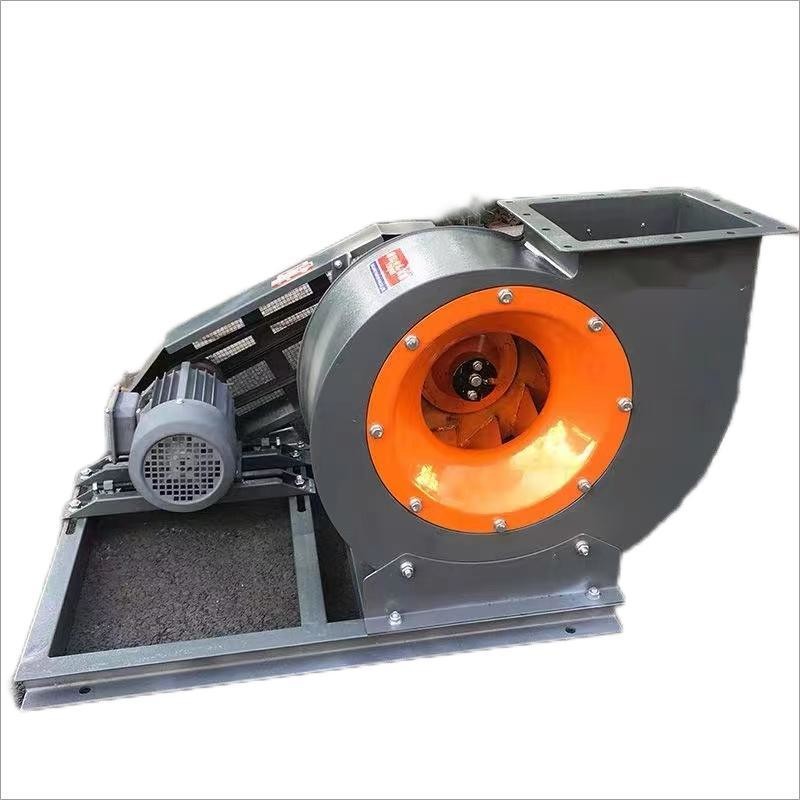

Product introduction:
The conveying medium of blower is mainly clean air, clean gas, sulfur dioxide and other inert gases. Therefore, it can be widely used in metallurgy, chemical industry, chemical fertilizer, petrochemical, food, building materials, petroleum, mine, textile, gas station, pneumatic conveying, sewage treatment and other industrial departments can be divided into general fans, dust exhaust fans, industrial ventilation fans, boiler induced draft fans, mining fans and so on.
Product advantage:
1, impeller and spindle materials, we will be based on different working conditions of temperature and working speed, choose to use high-strength carbon steel, low alloy steel, high temperature resistant alloy steel, high temperature resistant high strength alloy steel, so that the impeller and spindle still maintain reliable strength at high temperatures.
2, the impeller nominal diameter below 1400mm running at room temperature fan system, no additional configuration of bearing cooling device, reducing the user's investment and maintenance workload.
3, the impeller is annealed to eliminate the structural stress generated during welding to ensure that the impeller will not creepage and crack.
4, the impeller weld and the main shaft through ultrasonic inspection, to ensure that there are no welding defects and material defects, to ensure strength. The impeller is calibrated by high standard dynamic balance to ensure stable operation of the fan.
5, there are a variety of optional accessories to choose from.
Technical parameter:
| device number(No) | Rotational speed
(r/min) | Auxiliary motor(KW) | Flow rate
(m³/h) | Total pressure(Pa) |
| 3.2C | 2200 | 0.75 | 1483-2273 | 725-579 |
| 3.6C | 2200 | 1.5 | 2310-3434 | 881-723 |
| 4C | 1700 | 1.1 | 2641-4055 | 675-501 |
| 2300 | 2.2 | 3573-5491 | 1238-917 |
| 4.5C | 2000 | 3.0 | 4428-6799 | 1187-879 |
| 2300 | 4 | 5088-7819 | 1570-1163 |
| 5C | 2000 | 5.5 | 6106-9881 | 1495-1110 |
| 2300 | 7.5 | 7022-11363 | 1978-1468 |
| 6C | 2000 | 11 | 9209-18418 | 2176-1380 |
| 2240 | 15 | 10314-20628 | 2734-1737 |
| 7.1C | 1800 | 18.5 | 15736-25265 | 2422-1801 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
