product introduction:
Steam generator, also known as steam heat source machine (commonly known as boiler), is a mechanical device that uses the heat energy of fuel or other energy sources to heat water into hot water or steam. The original meaning of the pot refers to the water container heated on the fire, the furnace refers to the place of burning fuel, the boiler includes the pot and the furnace two parts.The scope of the boiler stipulated in the Regulations on the Safety Supervision of Special Equipment stipulates that the inner tank water capacity of the boiler is > 30L, which belongs to the pressure vessel and the national special equipment. The internal structure of the DC pipeline of the module steam generator does not require water storage, and the water capacity of the small inner boiler (steam generator) is mostly less than 30L, so it is not subject to the supervision of the technical supervision department, saving the installation and use costs.
Product characteristics:
The steam generator is a kind of heat exchanger, which mainly uses the reactor power device to push the cooling machine to pressurize the temperature and then carry out the heat transfer process. Steam generator according to the different products, its characteristics are also different, the following electric heating steam generator as an example:
1. The electric steam generator has a unique water cycle electric heating steam generator, which can quickly and efficiently heat up the steam generator to reach the set working temperature and pressure, and there will be no temperature and pressure fluctuations during the water refill process.
2. The built-in steam separator of the electric steam generator: it perfectly separates the water and water vapor, so that the technology of the steam generator has ascended to another level;
3. Fast and convenient automatic control system: as long as you press a button, the boiler immediately enters the fully automatic operation state, saving time and labor, which is greatly convenient to use;
4. The vertical arrangement of the top installation of the electric heating element: the scale attached to the electric heating element can be rapidly peeled off and shed under the action of thermal expansion and cold contraction, and excluded through the sewage pipe to extend the service life of the electric heating element;
5. Electric heating steam generator has small size, light weight, and is equipped with four universal wheels, easy to move. And equipped with all imported pressure switches and safety valves, extremely low water level immediately cut short the safety of the power supply triple protection.
technical specification:
|
Model
|
Rated
Capacity
(t/h)
|
Rated
Pressure
(Mpa)
|
Rated
Temperature
(C)
|
Maximum
transport weight
of boiler(t)
|
Maximum transport size of boiler( mm)
| Fuel Consumption |
|
diesel oil (Kg/h)
|
Natural
gas (m³/h)
|
LPG (kg/h)
|
| LHS0.05 | 0.05 |
0.4
|
151
| 0.37 | 700× 650×1700 | 8.2 | 10.2 | 6.45 |
| LHS0.1 | 0.1 | 0.59 | 800×750 ×2000 | 11.3 | 13.6 | 13 |
| LHS0.2 | 0.2 |
0.4~0.7
|
151~170
| 0.68 | 900× 850×2000 | 15.6 | 18.7 | 19.4 |
| LHS0.3 | 0.3 | 0.83 | 1000×950×2000 | 22.5 | 26.8 | 25.6 |
|
LHS0.5
|
0.5
|
1.07
|
1100×1050×2000
|
32.5
|
36.8
|
32
|
|
LHS0.7
|
0.7
|
0.4~0.7
|
151~170
|
1.45
|
1200×1150×2200
|
40.6
|
48.5
|
50
|
|
LHS1
|
1
|
1.78
|
1300×1250×2450
|
45.9
|
65.3
|
65
|
|
LHS1.5
| 1.5 |
1.9
|
1780×1600×3200
|
78.4
|
102.1
|
97
|
|
LHS2
|
2
|
5.2
|
2000×2000×4000
|
91.8
|
130.6
|
130
|
| | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |

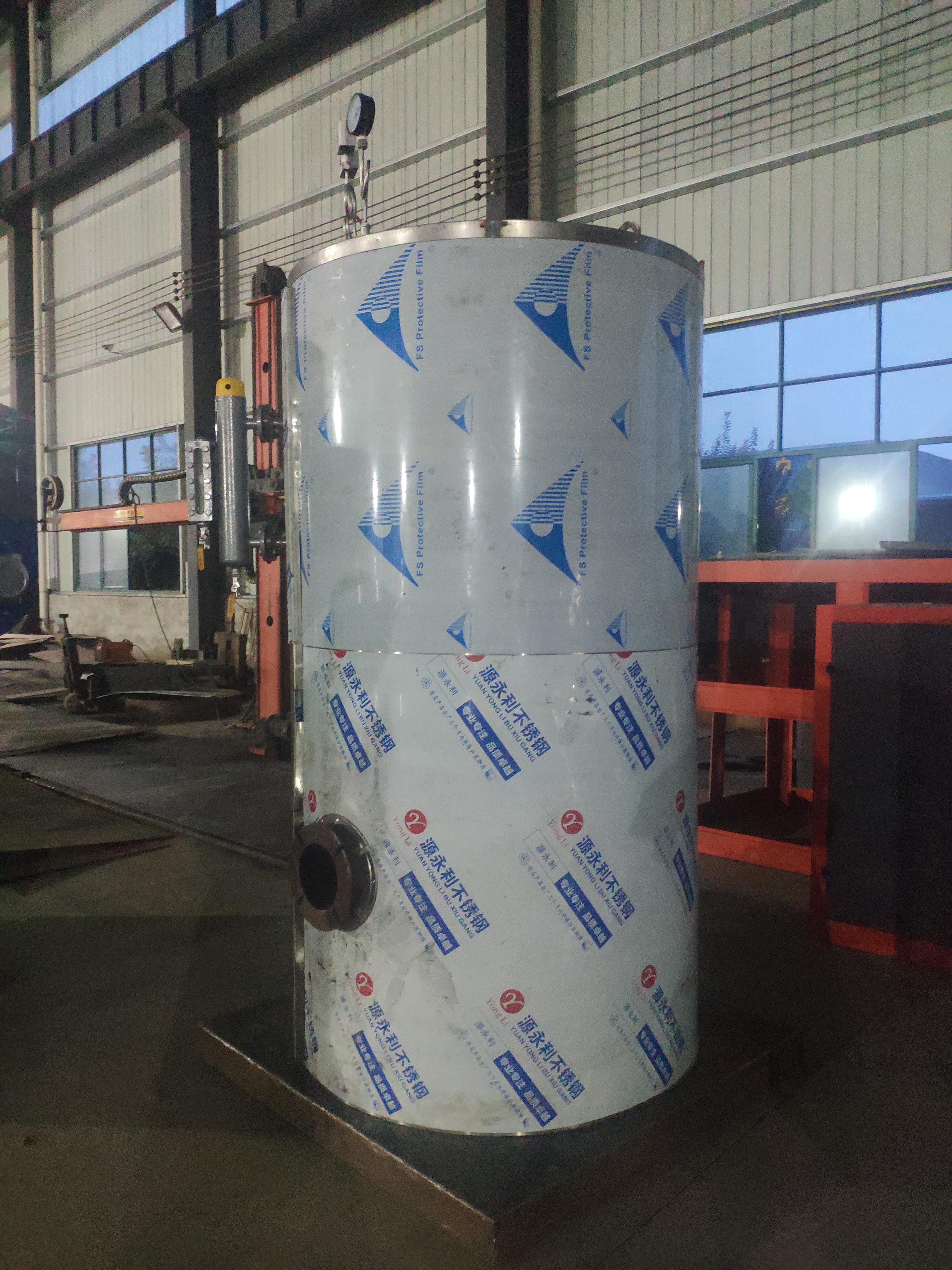

product picture:
