Easy To Operate Vertical Steam Boiler For Industrial Production And Domestic Heating

Name: Easy To Operate Vertical Steam Boiler For Industrial Production And Domestic Heating
Brand: taiguo boiler
Price: 1699 USD

Easy To Operate Vertical Steam Boiler For Industrial Production And Domestic Heating Manufactures

Brand Name : taiguo boiler

Model Number : LHS

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 1699-3200USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Warranty : 1 year

Certifications : CE, CSA

Advantage : Full Automatic

Drum Placement : Vertical Boiler

Working Pressure : Depends on customer's need

Heat Efficient : 85%

Operating Temperature : 212°F

Feed Water Temperature : 30C

Steam Temperatur : 170C

Boiler Structure : Tubular

Dimension : Depends

Contact Now

Product Introdution

The steam generator is composed of combustion chamber, upper water and water, which is led to the lower boiler through the SAIC tube and then condensed into water by the water wall. High thermal efficiency, simple structure, stable operation, safe and reliable, high degree of automation, easy to operate. Suitable for boilers, pressure vessels, heat exchangers, heat exchangers, industrial boilers, hot blast furnaces and other high temperature and high pressure equipment heating, hot water recycling. The equipment is safe and reliable, and can meet the requirements of industrial production and domestic boiler feed water heating,

product feature

Manual automatic: one-click automatic use, no need for full-time personnel control, the size of the firepower can be adjusted according to the actual use of steam, easy to operate.
Cost saving: The steam generator has low power consumption, does not belong to the pressure vessel, is exempt from relevant management inspections, and does not require certified staff, thus reducing operating costs.
The selection of all stainless steel manufacturing, microcomputer motherboard use, multiple devices, with no water power failure, overvoltage power failure deflating, multi-directional protection and other functions to ensure the use of safety.
Does not belong to the pressure boiler, does not need to report for approval and annual inspection, easy installation, no special duty operation, steam use department can be managed.
Compared with traditional coal-fired boilers, electric heating steam generators are more energy saving and environmental protection, and are recommended as substitutes by various local departments, especially in chemical manufacturing and other manufacturers basically replace coal-fired boilers with electric heating steam generators.

Technical Paramet

Model	Rated Capacity (t/h)	Rated Pressure (Mpa)	Rated Temperature (C)	Maximum transport weight of boiler(t)	Maximum transport size of boiler( mm)	Fuel Consumption
Model	Rated Capacity (t/h)	Rated Pressure (Mpa)	Rated Temperature (C)	Maximum transport weight of boiler(t)	Maximum transport size of boiler( mm)	diesel oil (Kg/h)	Natural gas (m³/h)	LPG (kg/h)
LHS0.05	0.05	0.4	151	0.37	700× 650×1700	8.2	10.2	6.45
LHS0.1	0.1	0.4	151	0.59	800×750 ×2000	11.3	13.6	13
LHS0.2	0.2	0.4~0.7	151~170	0.68	900× 850×2000	15.6	18.7	19.4
LHS0.3	0.3			0.83	1000×950×2000	22.5	26.8	25.6
LHS0.5	0.5			1.07	1100×1050×2000	32.5	36.8	32
LHS0.7	0.7	0.4~0.7	151~170	1.45	1200×1150×2200	40.6	48.5	50
LHS1	1			1.78	1300×1250×2450	45.9	65.3	65
LHS1.5	1.5			1.9	1780×1600×3200	78.4	102.1	97
LHS2	2			5.2	2000×2000×4000	91.8	130.6	130
	Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.

Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.

Easy To Operate Vertical Steam Boiler For Industrial Production And Domestic Heating

FAQ

Q1:How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenientfor our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3:What is the using life of your boiler?

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

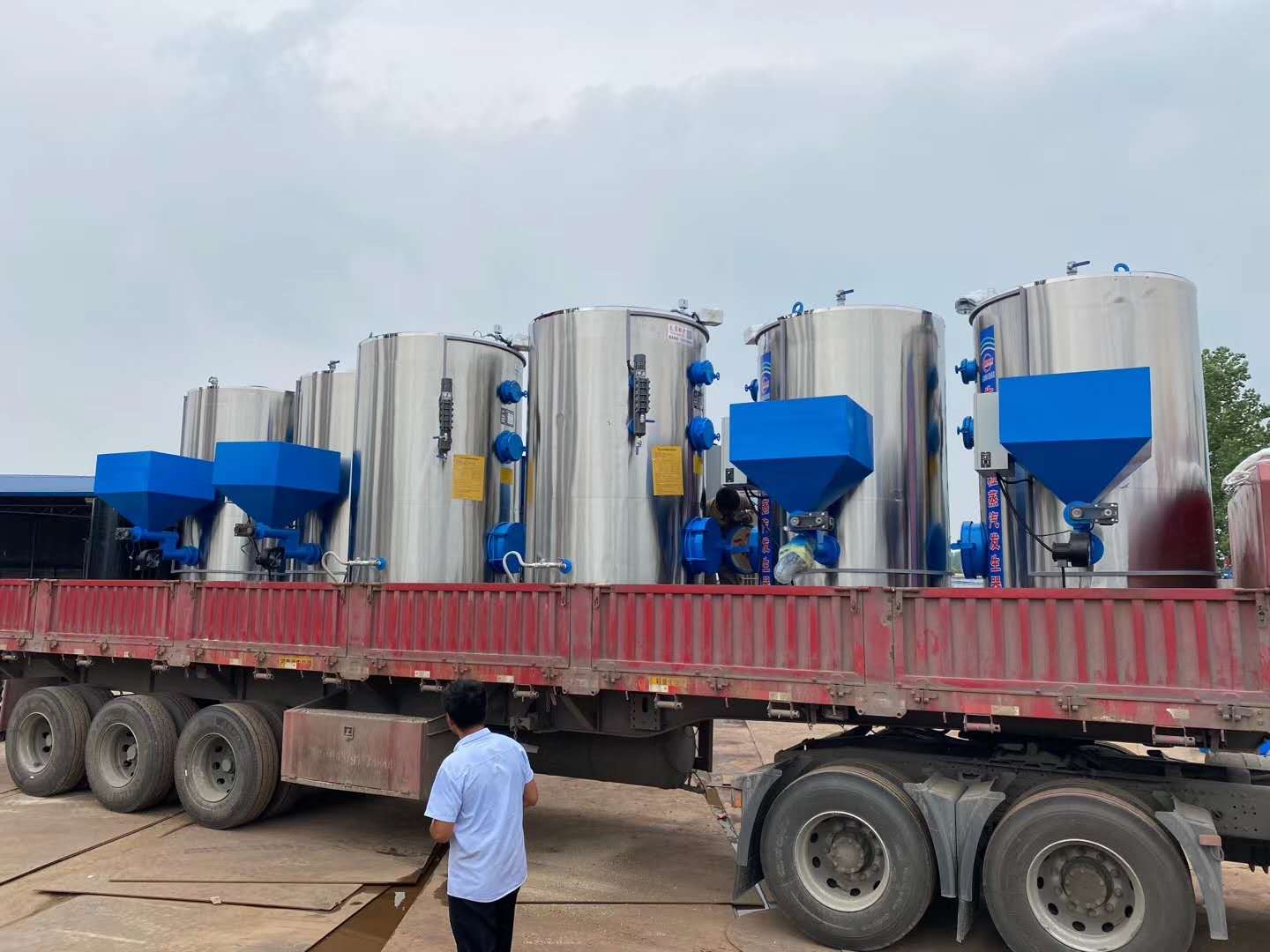

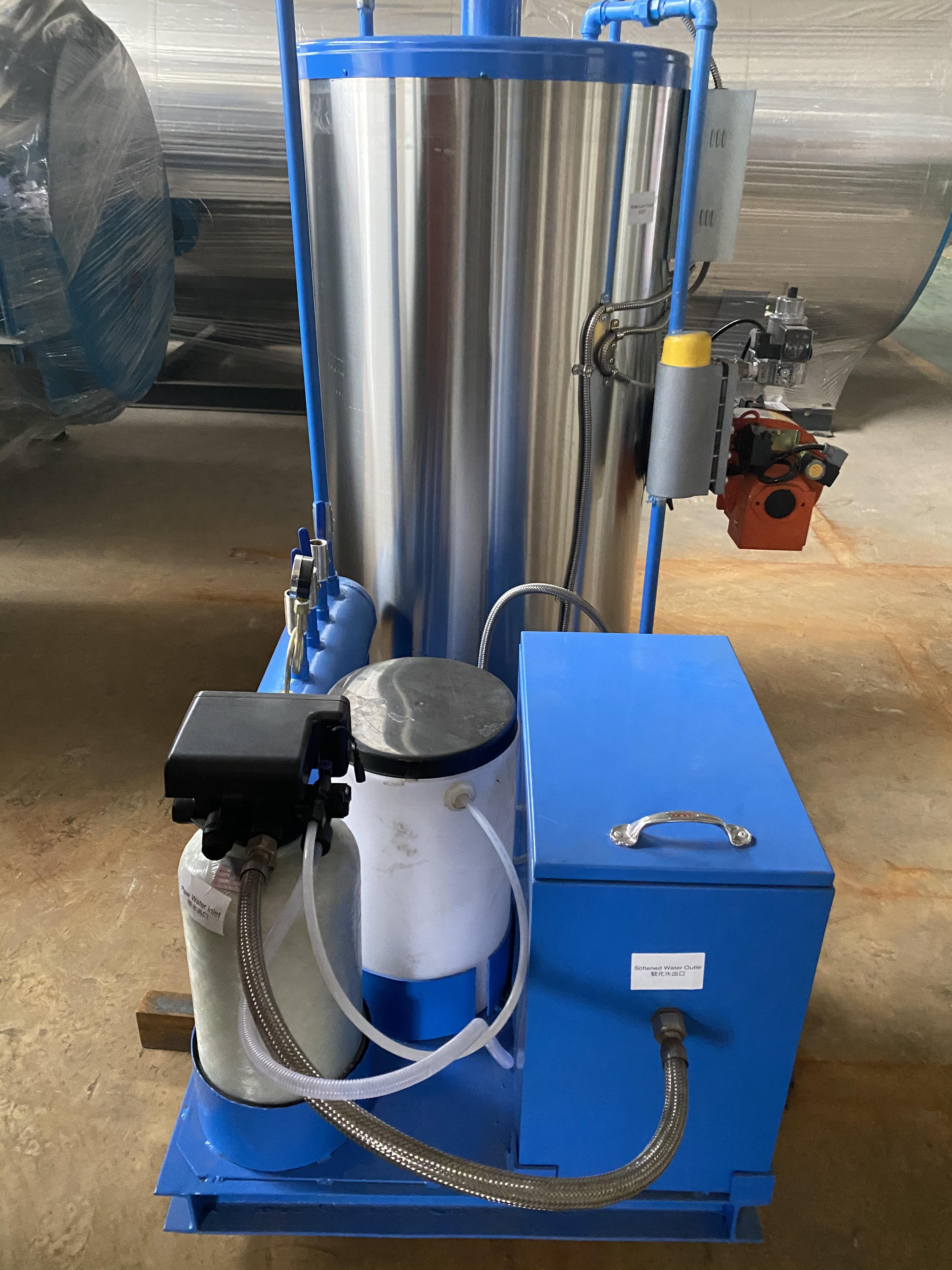

product picture
