Product introduction:

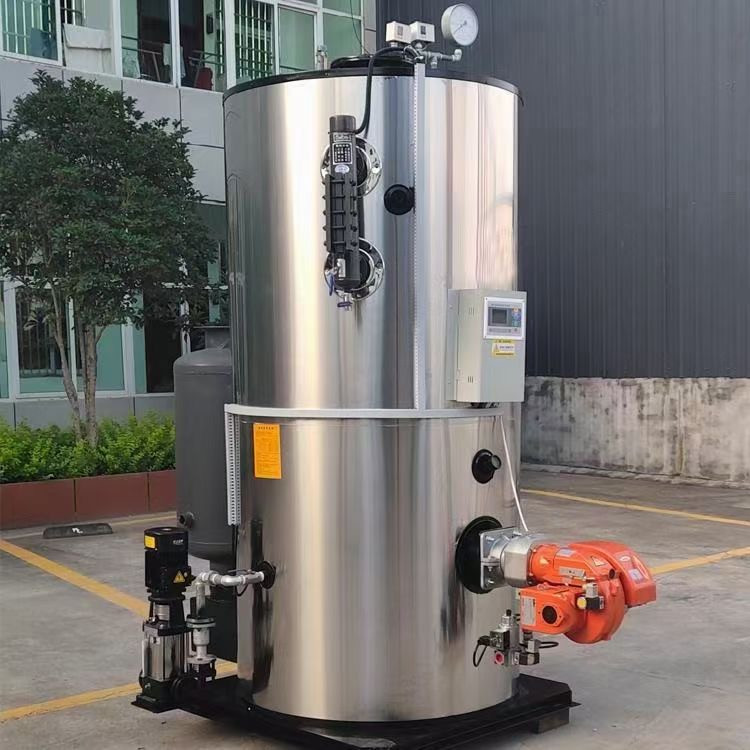

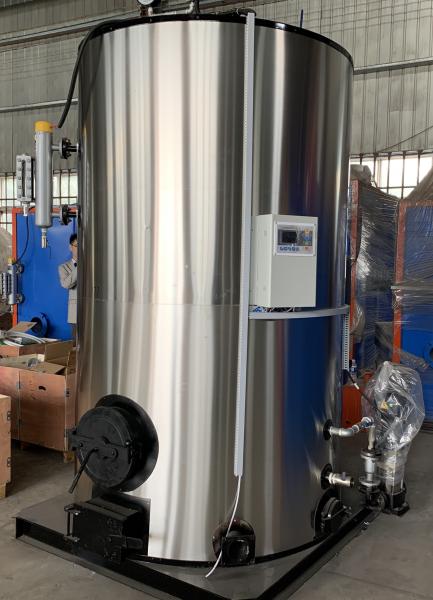

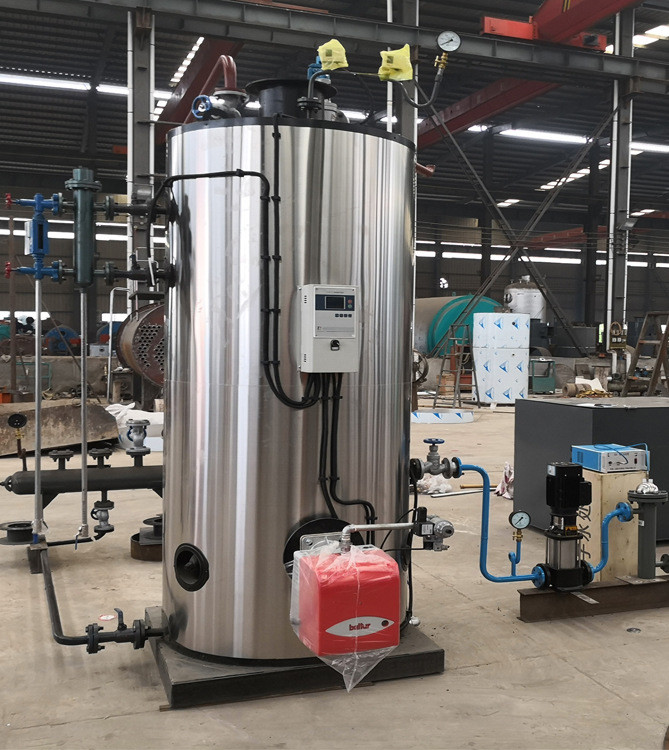

Small vertical gas steam boiler welding adopts seamless welding to ensure welding quality. The boiler uses high thermal resistance materials and closed metal cover as insulation layer, with good thermal insulation performance. It is equipped with one-button start and stop full intelligent touch screen operation, using industrial automatic control program system, water supply and gas supply mode. All protection functions are complete, just connect water, electricity and gas to debug and use.
Product Advantages:
1. Reasonable design structure is conducive to installation, operation and energy saving.
2. The equipment is made of high-quality steel with high strength and corrosion resistance.
3. The stainless steel water pump is used, which has short water supply time and is durable.
4. The heating time is short and steam can be generated continuously.
5. The structure is compact, simple and consumes less materials.
6. It is shipped quickly. After arriving at the site of use, it only needs to install pipes, instruments, valves and other accessories before it can be operated.
7. It is easy to install and move, and the customer only needs to provide a reasonable location for the steam generator.
Use Industry:
1. Food processing: food processing plants, bean product plants, condiment plants, sandwich pots, rice steamers, seafood steamers, sterilization and disinfection.
2 Feed processing, brewing industry, biological industry: feed processing plants, brewing and cooking grain, distilled wine, biological purification, sulfidation, sterilization.
3. Tobacco drying, chemical industry: tobacco, tea, food drying, chemical reactors, purification tank heating, electroplating oxidation heating.
4. Washing industry, clothing industry, washing equipment, ironing machines, dryers, clothing ironing, shaping.
Technical Parameters:
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Maximum transport weight of boiler(t) | Maximum transport size of boiler( mm) | Fuel Consumption |
| diesel oil (Kg/h) | Natural gas (m³/h) | LPG (kg/h) |
| LHS0.05 | 0.05 | 0.4 | 151 | 0.37 | 700× 650×1700 | 8.2 | 10.2 | 6.45 |
| LHS0.1 | 0.1 | 0.59 | 800×750 ×2000 | 11.3 | 13.6 | 13 |
| LHS0.2 | 0.2 | 0.4~0.7 | 151~170 | 0.68 | 900× 850×2000 | 15.6 | 18.7 | 19.4 |
| LHS0.3 | 0.3 | 0.83 | 1000×950×2000 | 22.5 | 26.8 | 25.6 |
| LHS0.5 | 0.5 | 1.07 | 1100×1050×2000 | 32.5 | 36.8 | 32 |
| LHS0.7 | 0.7 | 0.4~0.7 | 151~170 | 1.45 | 1200×1150×2200 | 40.6 | 48.5 | 50 |
| LHS1 | 1 | 1.78 | 1300×1250×2450 | 45.9 | 65.3 | 65 |
| LHS1.5 | 1.5 | 1.9 | 1780×1600×3200 | 78.4 | 102.1 | 97 |
| LHS2 | 2 | 5.2 | 2000×2000×4000 | 91.8 | 130.6 | 130 |
| | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |
Products:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
