Boiler softening water equipment working principle:
The boiler softened water equipment uses strong acidic cationic resin to replace calcium and magnesium (scale) ions in the raw water, and the water flowing out of the equipment is softened water with very low hardness. Its chemical reaction is: 2RNa+Ca2+(Mg2)=R2Ca(Mg)+2Na+. When the resin adsorbs a certain amount of calcium and magnesium ions, it must be regenerated, and the hardness of calcium and magnesium ions in the resin is replaced by soaking the resin in saturated salt water, so as to restore the softening exchange ability of the resin, and discharge the waste liquid. Its chemical reaction is: R2Ga=2RNa+Ca2+. The whole regeneration process includes: backwashing - loosening the resin layer, slow washing with salt absorption - exchange reaction, washing (forward washing) - flushing the calcium and magnesium ions exchanged by the chemical reaction, water injection - for the next regeneration.
Boiler softening water equipment (installation) to meet the main technical indicators:
1.one Inlet pressure: 0.2~0.5Mpa
2. Raw water hardness: <12mmol/L (when raw water hardness >8 mmol/L, should be declared in advance)
3. Water hardness: <0.03mmol/L;
4. Salt content of raw water <1000mg/L, turbidity <5
5. Power supply: ~220V, 50HZ
6. Salt consumption <100g/ g equivalent (related to the hardness of raw water);
Seven. Water consumption <2%; Power consumption <40W
Boiler softening water equipment features:
1.one Selection of high-performance ion exchange resin, large working exchange capacity, low energy consumption, the longest service life.
2, advanced program control device, accurate and reliable operation, instead of manual operation, fully realize the automatic conversion of all aspects of water treatment.
3. High efficiency, low energy consumption and economical operating costs.
4. The equipment is compact in structure, covers a small area, saves capital investment, installation, commissioning, easy to use, safe and reliable operation, easy to install and operate.
5. According to the actual use needs, personalized design of the corresponding equipment.
6, automatic control system high degree of automation, stable water supply conditions, easy to use and fast operation.
Widely used: can be used in steam boiler, hot water boiler, air conditioning, steam condenser, heat exchanger and other water supply equipment. It can also be used for domestic water treatment in hotels, restaurants, office buildings, apartments and soft water treatment in food, beverage, wine, chemical and other industries.
Technical parameter:
| model number | Treated
water volume T/H | Resin tank specification×quantity | Salt shaker x number | Equipment size (mm) |
| YF-0.5 | 0.5T/H | 200*1100×1 | 340*700×1 | 600*400*1200 |
| YF-1 | 1T/H | 250*1370×1 | 340*700×1 | 800*500*1500 |
| YF-2 | 2T/H | 300*1320×1 | 340*700×1 | 900*500*1500 |
| YF-3 | 3T/H | 350*1650×1 | 390*850×1 | 1000*500*1800 |
| YF-4 | 4T/H | 400*1650×1 | 500*1020×1 | 1100*700*1800 |
| YF-6 | 6T/H | 530*1750×1 | 500*1020×1 | 1300*900*2000 |
| YF-8 | 8T/H | 600*1850×1 | 580*1200×1 | 1600*1000*2100 |
| YF-10 | 10-12T/H | 750*1850×1 | 730*1310×1 | 2000*1200*2150 |
| YF-15 | 15T/H | 900*1850×1 | 875*1350×1 | 2300*1500*2400 |
| YF-20 | 18-22T/H | 1000*1850×1 | 980*1400×1 | 2500*2200*2400 |
| YF-35 | 25-35T/H | 1200*2400×1 | 1300*1310×1 | 3000*2700*3000 |
| YF-50 | 50T/H | 1500*2400×1 | 1300*1310×1 | 4000*2700*3000 |
|
|

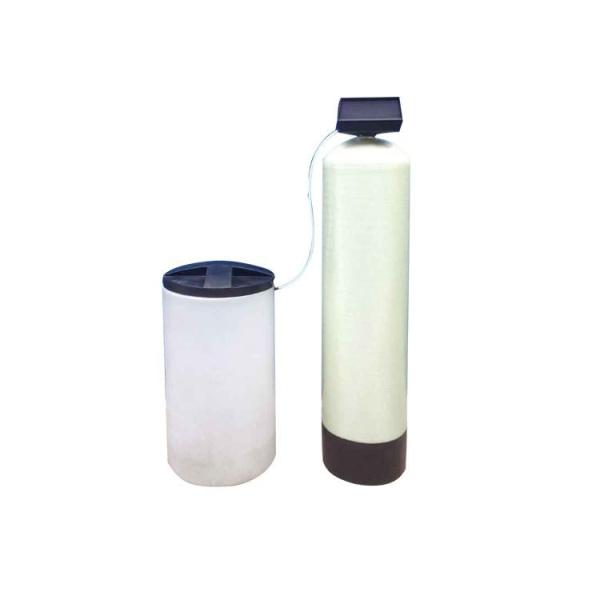

Boiler Auxiliaries Softening Water Equipment for Water Treatment System Images
|
