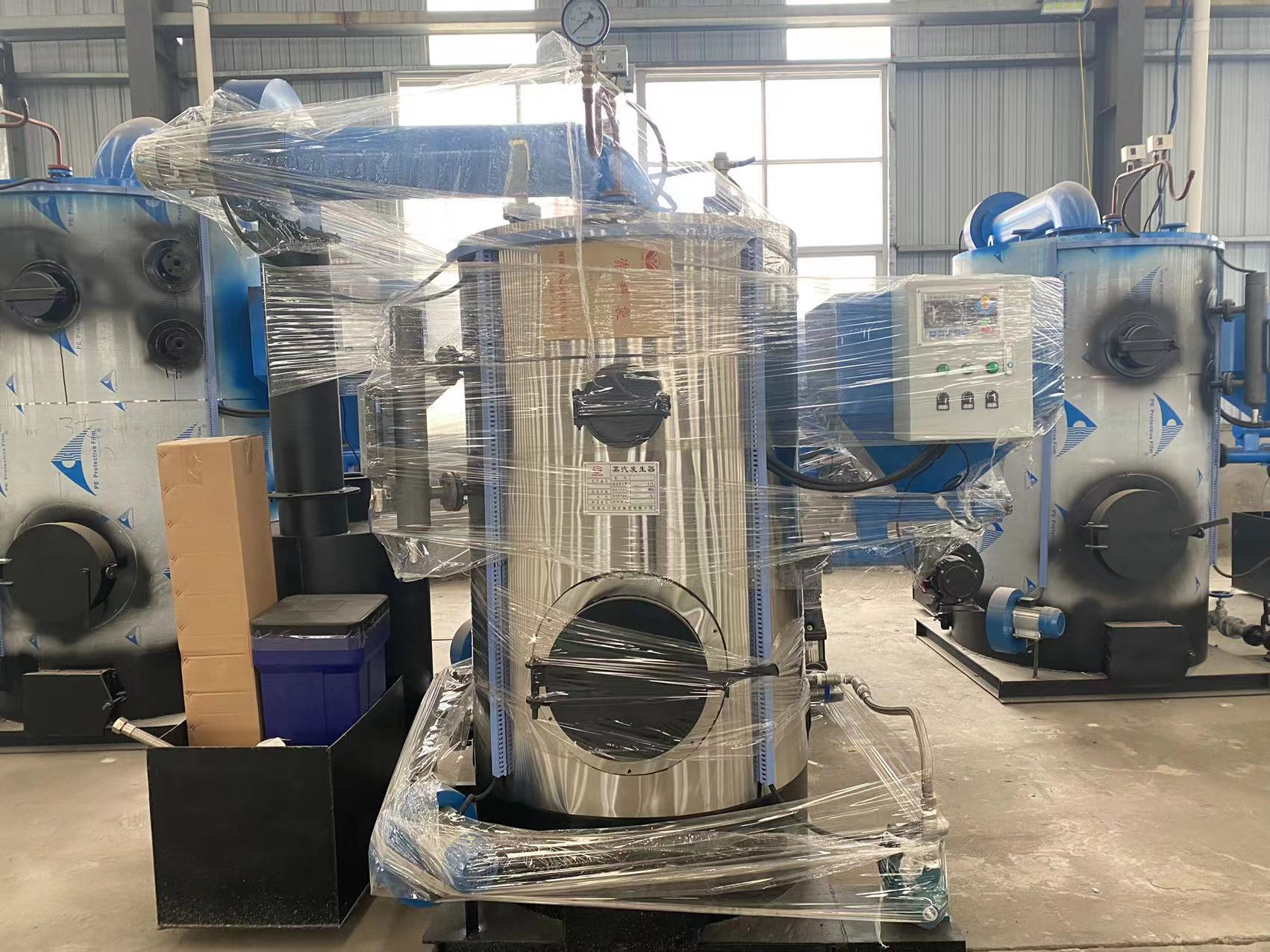

200kg Per Hour Vertical Steam Boiler Biomass Wood Steam Generator
Product introduction:
Biomass steam generator is a kind of small boiler with circulating water pipe.
Water circulation is smooth, heating area layout is scientific and reasonable, heat conduction is fast, steam pressure rises fast.
Automatic feed, blower induction fan frequency regulation, boiler automatic operation, according to the load changes can automatically adjust the amount of fuel, steam output stability.
With pressure, water level, smoke exhaust temperature and other protection and alarm measures to ensure safe operation of the boiler.
Product characteristics:
1.Forced circulation structure, fast water flow speed, and high heat transfer efficiency.
2. Full touch screen controller, intelligent operation, adjustable 5-speed firepower size
3. The combination of built-in energy-saving device and external waste heat recovery device can double absorb the heat of flue gas, making it more energy-efficient.
4. The steam production speed is fast, and after normal fuel combustion, it only takes 4-5 minutes to increase the pressure to 0.4Mpa
5. Specially designed large furnace with wide fuel applicability.
Technical parameter:
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Maximum transport weight of boiler(t) | Maximum transport size of boiler( mm) | Fuel Consumption |
| diesel oil (Kg/h) | Natural gas (m³/h) | LPG (kg/h) |
| LHS0.05 | 0.05 | 0.4 | 151 | 0.37 | 700× 650×1700 | 8.2 | 10.2 | 6.45 |
| LHS0.1 | 0.1 | 0.59 | 800×750 ×2000 | 11.3 | 13.6 | 13 |
| LHS0.2 | 0.2 | 0.4~0.7 | 151~170 | 0.68 | 900× 850×2000 | 15.6 | 18.7 | 19.4 |
| LHS0.3 | 0.3 | 0.83 | 1000×950×2000 | 22.5 | 26.8 | 25.6 |
| LHS0.5 | 0.5 | 1.07 | 1100×1050×2000 | 32.5 | 36.8 | 32 |
| LHS0.7 | 0.7 | 0.4~0.7 | 151~170 | 1.45 | 1200×1150×2200 | 40.6 | 48.5 | 50 |
| LHS1 | 1 | 1.78 | 1300×1250×2450 | 45.9 | 65.3 | 65 |
| LHS1.5 | 1.5 | 1.9 | 1780×1600×3200 | 78.4 | 102.1 | 97 |
| LHS2 | 2 | 5.2 | 2000×2000×4000 | 91.8 | 130.6 | 130 |
| | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
