LHS Series Low Pressure Steam Boiler Automatic Control Runs Stably
Product introduction:
The steam generator produced by the company is a three-return fire tube heating type, fuel gas steam generator, arranged in the equipment multi-layer heating surface, after improvement, external water level electrode control external insulation material after insulation, and then covered with stainless steel shell, the appearance is clean and beautiful. After the user purchases, it can be used after connecting the power supply and water source. This product has a high degree of automation, personalized design, all programs are concentrated on one button, and extraordinary simpleton fuzzy control is convenient for every operator.
LCD display automatic intelligent electronic control system:
The steam generator operating system is fully automatic control, and all operating states can be clearly seen in the LCD screen. You can observe the steam generator working status, steam generator water level status, steam pressure high and low status, pump operating status, fault alarm status, etc., so that you can grasp the steam generator operating status at any time, the use of more assured.
Product characteristics:
1. Economy
The use of the latest energy-saving and environmental protection technology, can save about 28% of the monthly cost, the use of efficient insulation materials, heat loss is very low, saving fuel costs;
2. Security
With water shortage, overpressure, overtemperature protection functions, safe and reliable;
3. Practicality
The steam generator has the advantages of simple structure, small footprint, convenient installation and maintenance, and long service life.
Technical parameter:
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Maximum transport weight of boiler(t) | Maximum transport size of boiler( mm) | Fuel Consumption |
| diesel oil (Kg/h) | Natural gas (m³/h) | LPG (kg/h) |
| LHS0.05 | 0.05 | 0.4 | 151 | 0.37 | 700× 650×1700 | 8.2 | 10.2 | 6.45 |
| LHS0.1 | 0.1 | 0.59 | 800×750 ×2000 | 11.3 | 13.6 | 13 |
| LHS0.2 | 0.2 | 0.4~0.7 | 151~170 | 0.68 | 900× 850×2000 | 15.6 | 18.7 | 19.4 |
| LHS0.3 | 0.3 | 0.83 | 1000×950×2000 | 22.5 | 26.8 | 25.6 |
| LHS0.5 | 0.5 | 1.07 | 1100×1050×2000 | 32.5 | 36.8 | 32 |
| LHS0.7 | 0.7 | 0.4~0.7 | 151~170 | 1.45 | 1200×1150×2200 | 40.6 | 48.5 | 50 |
| LHS1 | 1 | 1.78 | 1300×1250×2450 | 45.9 | 65.3 | 65 |
| LHS1.5 | 1.5 | 1.9 | 1780×1600×3200 | 78.4 | 102.1 | 97 |
| LHS2 | 2 | 5.2 | 2000×2000×4000 | 91.8 | 130.6 | 130 |
| | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |

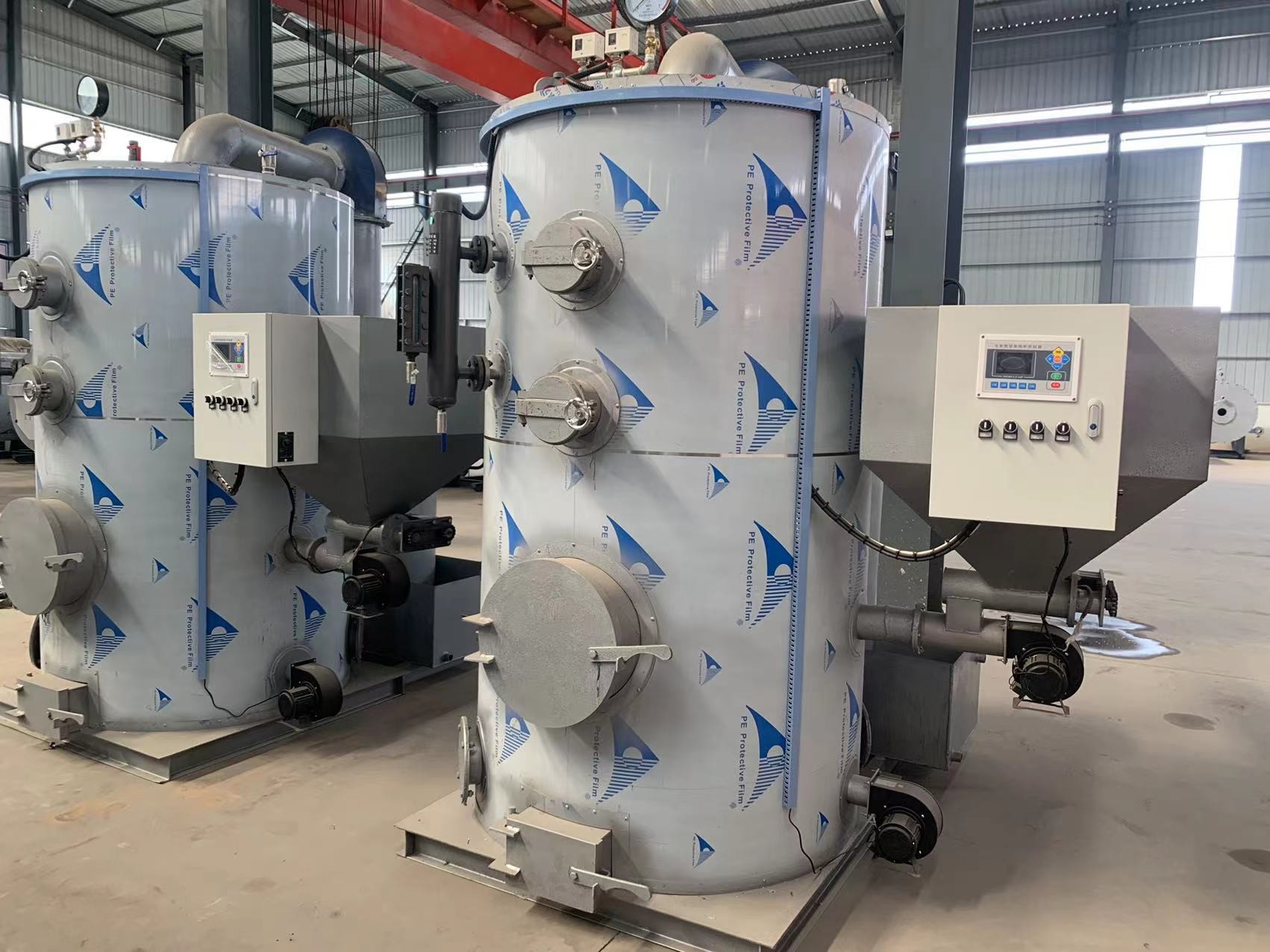

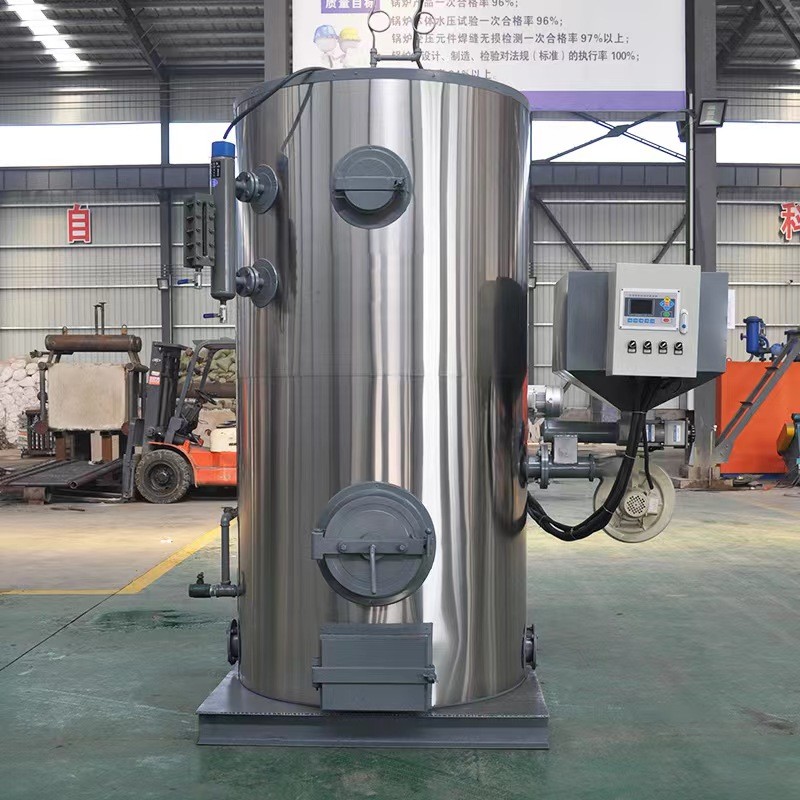

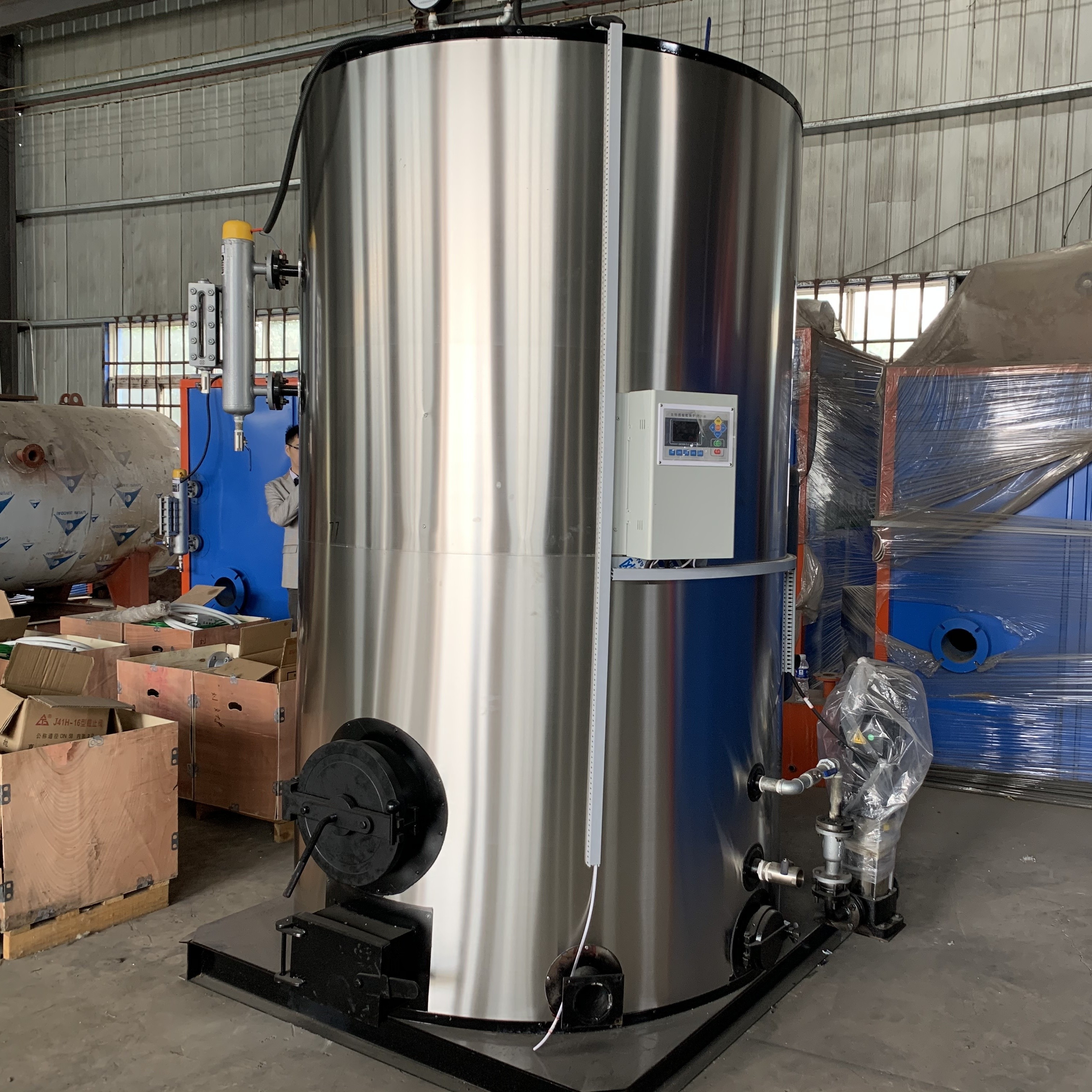

Product display:
