Working principle:
Electric heating boilers use metal tubular electric heaters to heat water so that electrical energy is directly converted into heat energy (to produce hot water or steam). It does not need to use combustion to convert chemical energy into heat energy, and it does not need to supply air and fuel required for combustion, and will not emit harmful gases and ash, which fully meets the requirements of environmental protection. The body structure of the electric heating boiler is relatively simple, the electric heating tube is connected by triangle method, a number of electric heating tubes are connected into a group, the external face mask has a nozzle, installed on the flange to connect with the external electrical equipment, the electric heating tube group has an electric heating shield, the heating process of the medium is all completed in the cylinder, there is no need to arrange the pipeline. A water inlet, a hot water (or steam) outlet, a safety valve, a pressure gauge, a wiring panel and a blowdown valve are arranged on the simplified part.
Product advantages:
1, automatic intelligent control technology, no need for special duty. Flexible working mode, can be set to manual or automatic mode.
2, according to the need to set the boiler automatic operation period, a day can be set up a number of different working periods, so that the boiler automatically time-sharing start each heating group, heating group cycle switching, so that the use of the contactor time, frequency is the same, improve the service life of the equipment.
3, the boiler body adopts the boiler pressure vessel steel plate, the furnace body longitudinal and annular welds are automatic welding, and X-ray detection, small boiler furnace body, mechanical and electrical integration, easy to install and connect; Large boiler furnace body and electronic control body separate design, prevent the electrical control part affected by the high temperature of the furnace body, ensure the stable operation of the electronic control device.
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electric heating efficiency (%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Number of heating tube groups (group)) | 2 | 2 | 4 | 6 | 10 | 14 | 20 | 30 | 40 |
| Working pressure (Mpa) | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 |
| Evaporation (kg/h) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | 1500 | 2000 |
Air outlet/ sewage outlet (DN) | 25/40 | 25/40 | 25/40 | 25/40 | 40/40 | 50/50 | 50/50 | 65/50 | 65/50 |
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) | 85 | 150 | 318 | 450 | 750 | 1000 | 1300 | 2100 | 2600 |
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
Product Tags:
|
|

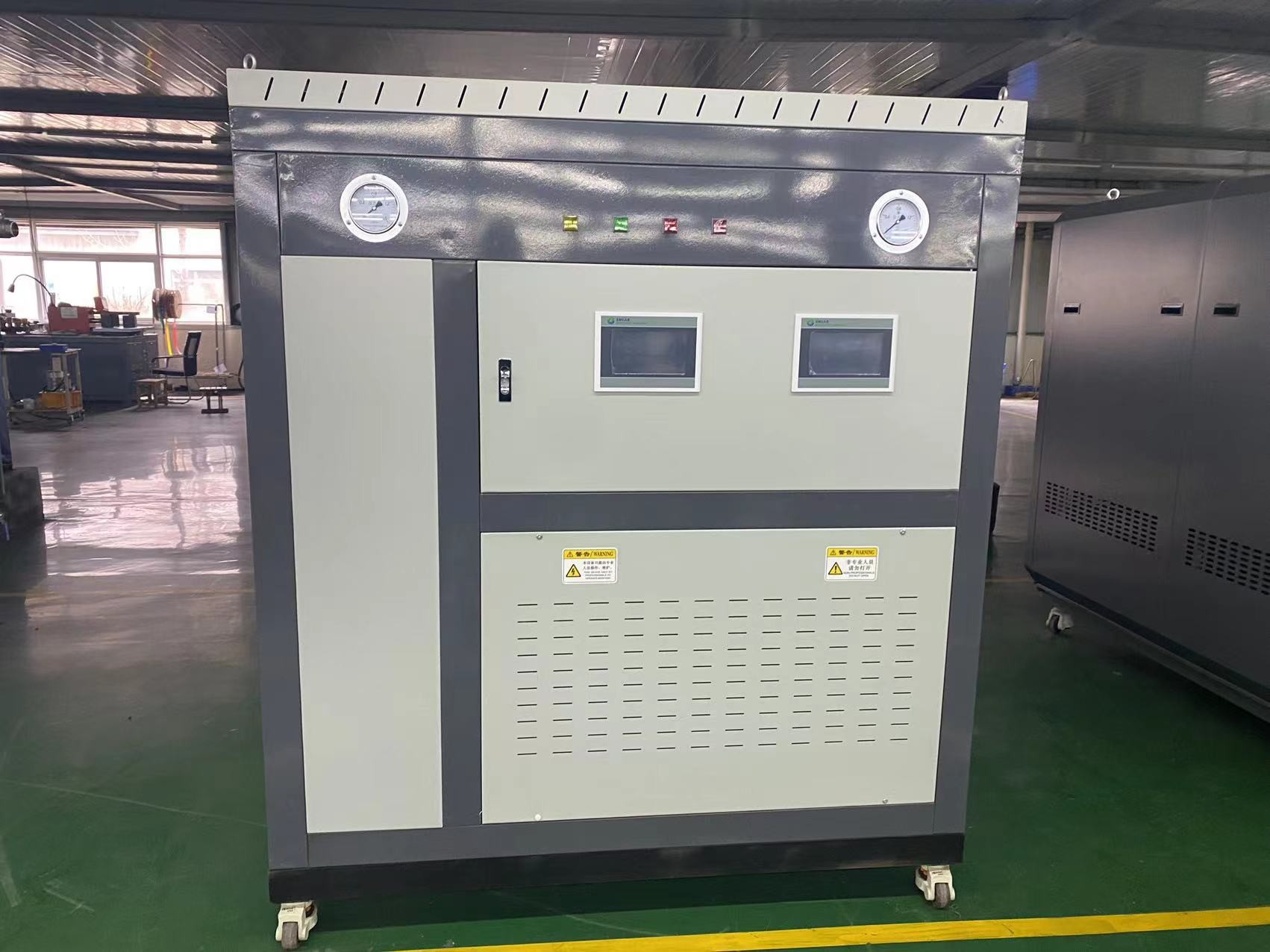

Electric Heating Resistance Steam Generator Energy Saving And Environmental Protection Images
|
