Product Description:

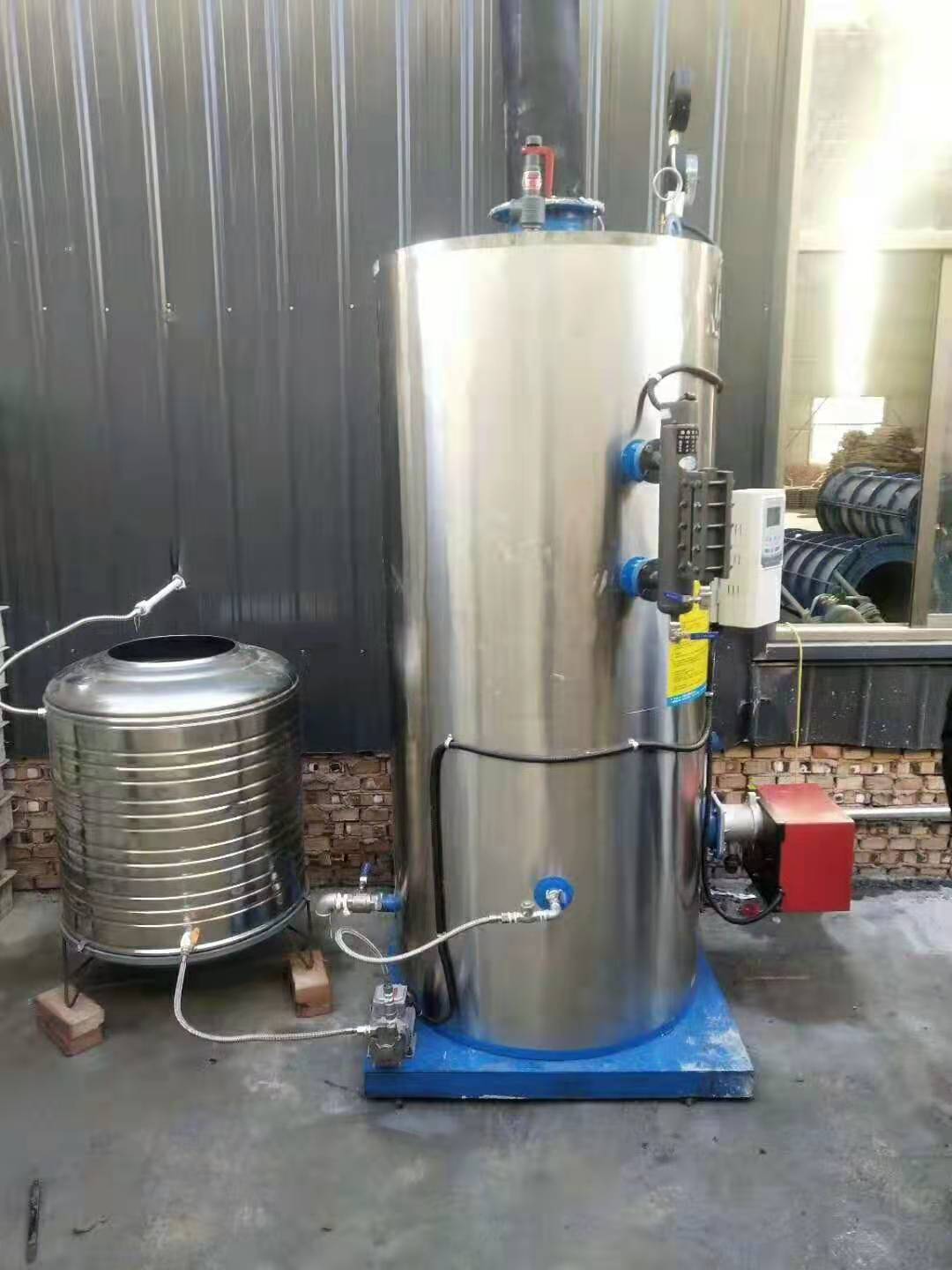

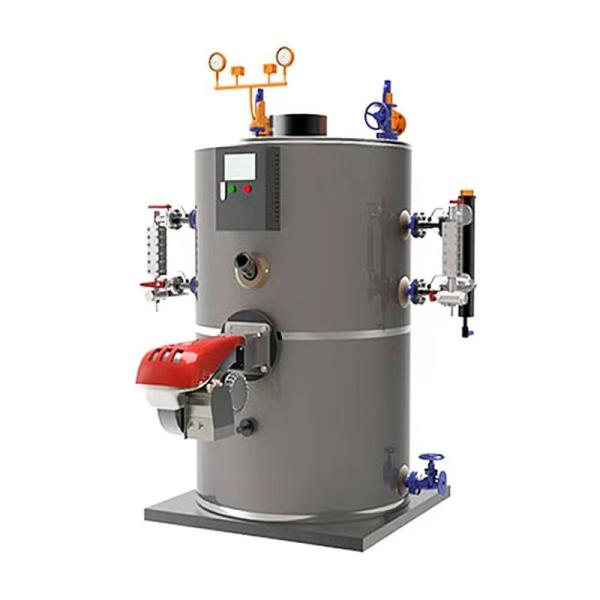

The LHS type gas oil fired steam generator is designed to prevent heat loss and save energy. This is achieved by encircling the combustion chamber with water. The structure is made with special materials, and its thickness complies with European and American standards. It is high strength and provides security, stability and reliability for its users. In addition, it offers a long service life.
Furthermore, reliable and safe boiler auxiliary equipment and devices such as pressure controllers, pressure transmitters, water level alarms, and safety valves are installed. This ensures that the LHS type gas oil fired steam generator is able to provide a more secure and efficient experience.
Features:
1.Integration of burning configuration system.
Design the boiler with consideration of steam generator and burner to make generator burning system has the best matching,it is organic combination for energy-saving and environment protection.
2.Advanced fully automatic control function.
Adopt automatic micro computer program to control,automatic pressure control, flame detection,water shortage protect, auto alarm etc.Just push the button and come to automatic running statue, all safety protection device start work, unnecessary for person on duty.
3.Safe and scientific structure design.
Equipped with safe valve, pressure controller, water level controller safety interlock device, absolutely safe and reliable. Adopt fin type tubular furnace structure to compensate the thermal expansion,avoid thermal expansion and contraction stress, make boiler structure safe and reliable, prolong service life.
4.Produce good quality steam quickly.
Small water capacity and big steam tank design to produce steam quickly,steam-water separator inside to guarantee high quality saturated steam.
Technical Parameters:
| Property | Value |
| Burning Style | Chamber Combustion Boiler |
| Application | Industrial |
| Size | 1300×1250×2450 |
| Capacity | 1t/h |
| Trademark | TAIGUO |
| Manufacturing Level | A |
| Media | Steam |
| Design | Vertical |
| Pressure | Low Pressure |
| Warranty | 1 |
| Product Name | Automatic Vertical Fuel (gas) Steam Boiler, Steam Generator, Verticle Oil/Gas Steam Boiler |
Applications:
textile factory, food and beverage, chemical industry, medicine,light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing, laundry, etc.
Packing and Shipping:
The Vertical Steam Boiler will be packaged and shipped in a custom-made wooden crate. The crate is designed to ensure that the boiler is secure and safe during transport. The crate will also include a packing list that will provide details about the product and its contents. The crate will be labeled with the name of the product, the weight, and other relevant information. Once the crate is packed, it will be secured with straps and loaded onto a pallet. The pallet will then be securely strapped and transported to the customer.
