product presentation:
Electric steam generator is also known as a small electric steam boiler, micro-electric steam boiler, etc., is a kind of automatic water supply, heating, while continuously producing low-pressure steam micro-boiler, small water tank, water pump, control and operating system complete integration, no complicated installation, as long as the water source and power can be connected.Mainly for the canteen, dry cleaning, steam room, steam iron to provide the necessary dry steam, in the food factory, soybean products factory, clothing factory is more commonly used. Because the water volume of the electric steam generator is designed to be less than 30L, the installation and use of the electric steam generator is not subject to the inspection and management of the technical supervision department. The boiler defined in the Regulations on the Safety Supervision of Special Equipment refers to the equipment that uses various fuels, electricity or other energy sources to heat the contained liquid to a certain parameter and output heat energy. Its scope is stipulated to be a pressurized steam boiler with a volume greater than or equal to 30L; Pressurized hot water boilers with outlet water pressure greater than or equal to 0.1MPa (gauge pressure) and rated power greater than or equal to 0.1Mw; Organic heat carrier boiler. From the People's Republic of China "Special Equipment Safety Supervision Regulations"
product feature:
The electric steam generator is a special equipment for dry cleaning machine, washing machine, ironing and other washing, and can also be used as a steam source for other purposes, such as canteens, kitchens, medical disinfection, small drying rooms, etc. It is characterized by moderate power, fast heating, large steam production and small volume. Automatic pressure control (double pressure control) and high and low water level control, water shortage automatic compensation, low water level automatic protection and other functions.
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) |
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
| Electric heating efficiency (%) |
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
| Number of heating tube groups (group)) |
2
|
2
|
4
|
6
|
10
|
14
|
20
|
30
|
40
|
| Working pressure (Mpa) |
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
| Evaporation (kg/h) |
50
|
100
|
200
|
300
|
500
|
700
|
1000
|
1500
|
2000
|
| Air outlet/
sewage outlet (DN) |
25/40
|
25/40
|
25/40
|
25/40
|
40/40
|
50/50
|
50/50
|
65/50
|
65/50
|
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) |
85
|
150
|
318
|
450
|
750
|
1000
|
1300
|
2100
|
2600
|
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
Product Tags:
|
|

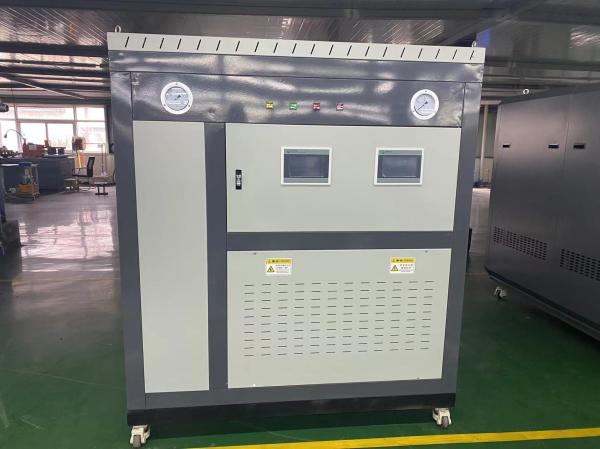

High Thermal Efficiency Vertical Electric Steam Generators With Small Footprint For The Food Processing Industry Images
|
