140kw Vertical Electric Heating Steam Generator Covers An Area Of Small Industrial

Name: 140kw Vertical Electric Heating Steam Generator Covers An Area Of Small Industrial
Brand: taiguo boiler
Price: 4500 USD

140kw Vertical Electric Heating Steam Generator Covers An Area Of Small Industrial Manufactures

Brand Name : taiguo boiler

Model Number : DZZQ

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 4500-9999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Advantage : PLC programming controller

Voltage : 220V/380V/415V/440V

Temperature Range : 50-170℃

Generator Type : Steam Generator

Thermal Efficiency : Customizable

Power Source : Electric

Model Speci Fications : DZZQ-36

Warranty : 1 year

Operation : full automatic

Rated Voltage : 380V

Dimension : 720*490*930mm

Contact Now

Product introduction

The electric heating steam generator mainly refers to a device that uses electric energy as a heat source and uses electric heating technology to heat steam. Electric heating steam generator is mainly used in chemical industry, metallurgy and other industries for liquid gasification, distillation and other processes, is currently recognized at home and abroad the best choice. The electric heating steam generator uses the heat generated by the resistance wire to directly gasify the liquid fuel into high temperature and high pressure gas, and at the same time uses the chemical energy of the liquid fuel under high temperature and high pressure to convert it into heat energy. The device is made of special materials and has high temperature resistance, corrosion resistance and good safety and stability.

Product characteristics

1. This product has the characteristics of small size, large power and high efficiency, and can work continuously at room temperature for a long time;
2. Due to the use of advanced electric heating technology, the steam pressure is high and the thermal efficiency is more than 80%;
3. The product can run continuously at various temperatures and is not deformed by temperature changes;
4. The product has reasonable design, simple and beautiful structure.

Technical Paramet

Model speci fications	DZZQ-36	DZZQ-72	DZZQ-144	DZZQ-216	DZZQ-360	DZZQ-504	DZZQ-720	DZZQ-1080	DZZQ-1400
Rated power (kW)	36	72	144	216	360	504	720	1080	1400
Rated current (A)	54	108	216	324	540	756	1080	1620	2160
Voltage frequency (V/HZ)	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Electric heating efficiency (%)	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95
Number of heating tube groups (group))	2	2	4	6	10	14	20	30	40
Working pressure (Mpa)	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0
Evaporation (kg/h)	50	100	200	300	500	700	1000	1500	2000
Air outlet/ sewage outlet (DN)	25/40	25/40	25/40	25/40	40/40	50/50	50/50	65/50	65/50
Auxiliary control function	Automatic control + remote control
Product weight (kg)	85	150	318	450	750	1000	1300	2100	2600
Appearance size (m)	0.81.01.6	0.81.01.7	1.41.41.7	2.01.61.7	1.41.41.7	1.61.61.7	2.61.61.7	3.71.61.8	4.51.61.8

Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.

140kw Vertical Electric Heating Steam Generator Covers An Area Of Small Industrial

FAQ

Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

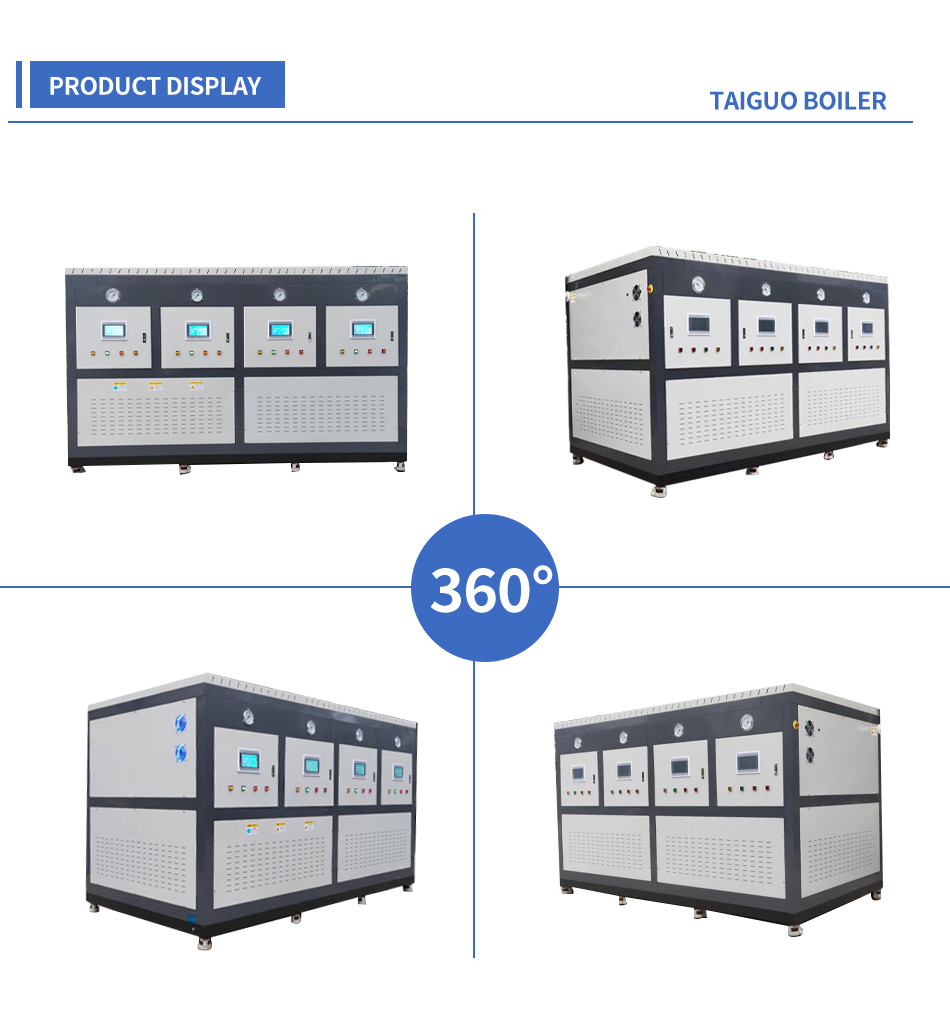

product picture

Product Tags:

140kw vertical electric heating steam generator

vertical electric heating steam generator

140kw Vertical Electric Heating Steam Generator Covers An Area Of Small Industrial Images
