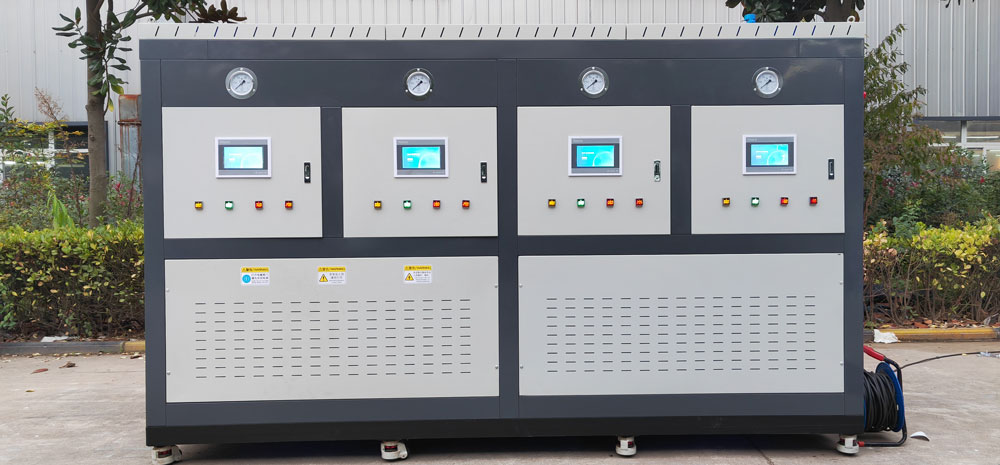

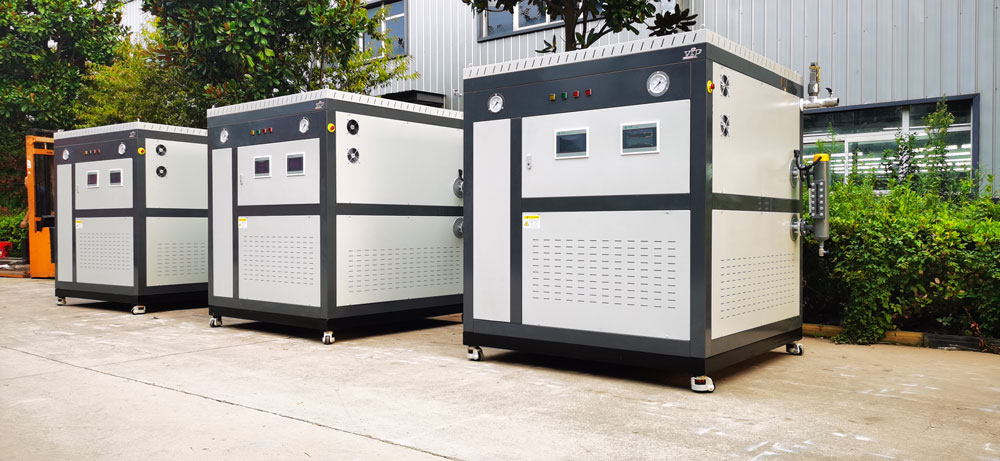

product presentation:
An electric steam generator is an electric boiler that supplies steam to irons and irons. It is composed of water tank, electric heating body, water injection pump, steam supply valve tube, pressure gauge, safety valve, steam regulating valve and so on. Automatic electric steam generator has a perfect automatic control system, the water level detector in the furnace body automatically controls the work of the injection pump to ensure the water level in the boiler, when the water level is lower than the alarm line, the heating power supply will be automatically cut off. The pressure sensor strictly controls the boiler steam pressure, and the pressure is displayed by the steam pressure gauge. Boiler steam supply pressure, steam supply volume, steam supply temperature can be adjusted, pressure relay, temperature relay and boiler safety valve can ensure production safety. Because of its small size, light weight and flexibility, the electric steam generator is a kind of auxiliary equipment for wet heat processing suitable for intermediate ironing.
Working process:
As the electric heating steam generator is a pressure vessel, the equipment has a perfect automatic control system. Water level detection system, when the water level is lower than the critical water level will automatically cut off the power supply to avoid dry burning; The steam supply pressure, steam supply volume and temperature of the generator can be adjusted. Working pressure relays, temperature relays and safety valves ensure production safety. However, in order to ensure safe production, regular inspections should be carried out according to regulations and operation procedures should be strictly followed.
Application and characteristics:
The electric steam generator is a special equipment for dry cleaning machine, washing machine, ironing and other washing, and can also be used as a steam source for other purposes, such as canteens, kitchens, medical disinfection, small drying rooms, etc. It is characterized by moderate power, fast heating, large steam production and small volume. Automatic pressure control (double pressure control) and high and low water level control, water shortage automatic compensation, low water level automatic protection and other functions.
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) |
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
380/50
|
| Electric heating efficiency (%) |
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
| Number of heating tube groups (group)) |
2
|
2
|
4
|
6
|
10
|
14
|
20
|
30
|
40
|
| Working pressure (Mpa) |
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
0.1-1.0
|
| Evaporation (kg/h) |
50
|
100
|
200
|
300
|
500
|
700
|
1000
|
1500
|
2000
|
| Air outlet/
sewage outlet (DN) |
25/40
|
25/40
|
25/40
|
25/40
|
40/40
|
50/50
|
50/50
|
65/50
|
65/50
|
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) |
85
|
150
|
318
|
450
|
750
|
1000
|
1300
|
2100
|
2600
|
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
