Electric Heating Low Pressure Steam Boiler Running Stable High Efficiency

Brand Name : TAIGUO

Model Number : DZZQ

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : 2200-15000 Set

Payment Terms : L/C, T/T

Supply Ability : 100set

Delivery Time : 15-25 days

Packaging Details : Bulk, packaged

Product name : low pressure steam boiler

Fuel : Electric heating

Warranty period : A year

Working pressure : 0.09Mpa

Contact Now

Low Pressure Steam Boiler Electric Heating Low Pressure Steam Boiler Running Stable And High Efficiency

Product introduction:

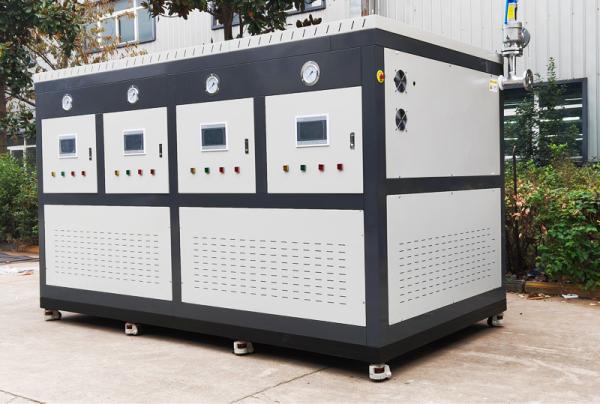

DZZQ series pin automatic electric low pressure steam boiler is a kind of mounted steam generator. It is composed of prefabricated cooling system, LED liquid level lighting, automatic water refill device, 3C national standard heating pipe, liquid level controller, safety valve, reliable, lightning protection device and other components. The boiler can operate safely and efficiently independently. Full automatic operation is simple and saves manpower, small size, small ground and convenient transportation. Energy saving and environmental protection using electricity as fuel. It is your best choice for low pressure steam boilers.

Product characteristics:

1, energy saving: high thermal conversion efficiency in the technical use of electromagnetic induction heating, energy saving, fast heating speed, high thermal efficiency. Compared with other fuel, gas, electric heating equipment can save more than 30%.
2, green environmental protection: no noise after the electric heating equipment starts. When used, it does not release any harmful gases, no fire, smokeless, tasteless, and many pollution problems of traditional heating equipment will not produce open flames in the heating process, and truly protect the environment and save energy.
3, the product size is small: beautiful appearance, electromagnetic heating system can be arranged according to the needs of customers, saving space, and easy installation.
4, intelligent control: touch screen microcomputer control, and equipped with electronic digital signal power sensor (can be freely adjusted), temperature control is accurate and sensitive, so that the use of temperature balance. Constant temperature setting and various alarm functions, easy to operate and easy to learn.

Technical parameter:

Model number power
(KW)
Adapter cable Evaporation capacity
Kg/h
Number of heating tubes Kw*N
A 2
DZZQ24-D 24 36 16 33.3 12*2
DZZQ36-D 36 54 25 50 12*3
DZZQ48-D 48 72 35 66.7 12*4
DZZQ72-D 72 108 50 100 36*2
DZZQ108-D 108 162 95 150 36*3
DZZQ144-D 144 216 120 200 36*4
DZZQ180-D 180 270 150 250 36*5
DZZQ216-D 216 324 185 300 36*6
DZZQ288-D 288 432 240 400 36*8
DZZQ360-D 360 540 240 500 36*10
DZZQ432-D 432 648 300 600 36*12
DZZQ504-D 504 756 2*185 700 36*14
DZZQ576-D 576 864 400 800 36*16
DZZQ720-D 720 1080 2*300 1000 36*20
DZZQ1080-D 1080 1620 2*400 1500 36*30
DZZQ1440-D 1440 2160 2*500 2000 36*40

Application industry:

Clothing washing and ironing industry: dry washing machine, dryer, water washing machine, dehydrator, leveling machine, iron, and other equipment supporting use; Food machinery industry: tofu machine, steaming box, packaging machine, coating equipment, sealing machine, and other equipment supporting the use of packaging machinery industry: labeling machine, set of labeling machine supporting the use of biological chemical industry: fermenter, reaction kettle, sandwich pot, blender, emulsifying machine and other equipment supporting the use of; Other industries :(oil fields, automobiles) steam cleaning industry, (hotels, dormitories, schools, mixing stations) hot water supply, (Bridges, railways) concrete maintenance, (leisure and beauty clubs) sauna bathing, heat exchange equipment.

Performance pledge:

1. Quality assurance first from the technology, from the product selection to meet the user's requirements, we will provide mature technology, and through practice test, stable operation, reliable performance of the product;
2. Strictly develop the process measures, strictly implement, require the operator to self-check according to the drawing standard requirements and process documents, full-time inspection and strict control, unqualified products are eliminated from the factory;
3. During the installation period, technicians can be sent to the site to provide technical services, guide the installation, communicate with Party A and the supervision company in time, and solve problems in time;
4. We have rich experience in the installation, commissioning and operation of boilers. If the user finds technical and quality problems in the process of use, our factory will immediately repair the equipment.
