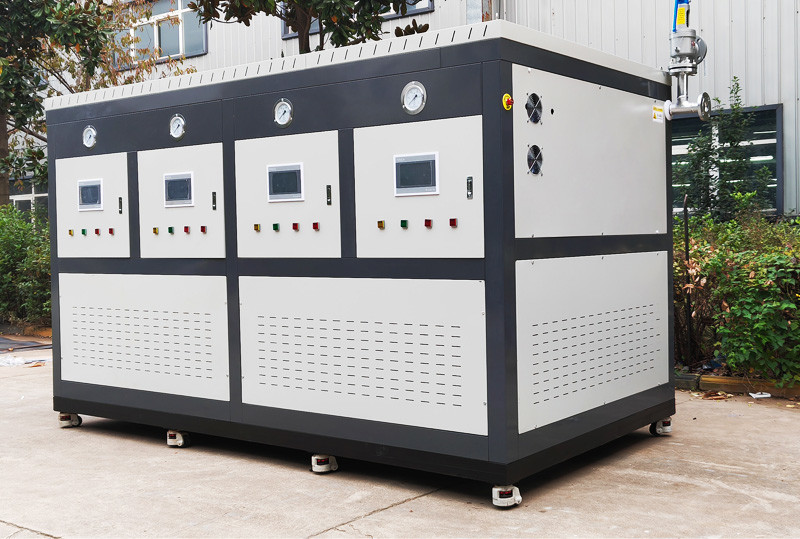

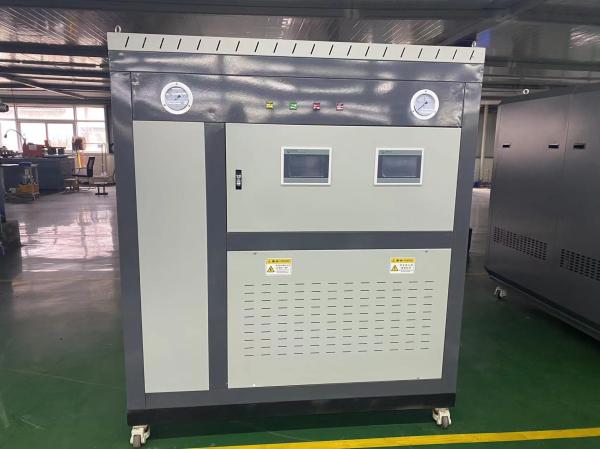

Electric Heating High Temperature Steam Boiler Paper Industry High Efficiency
Product name:
Electric heating steam generator, which is powered by electricity and converts water into steam, brings endless convenience to our life production. Its working principle is simple and efficient, and the electric energy is converted into heat energy through the electric heating element so that the water quickly reaches the boiling point and generates steam. The application of this device is wide, from the home to the factory, from the hospital to the hotel, almost everywhere. It has the advantages of small footprint, simple automatic operation, energy saving and environmental protection, low running noise, no scaling and no corrosion.
Product advantage:
1. Ultra-high thermal efficiency
using frequency conversion heating technology, thermal efficiency up to 95%
2. Intelligent remote control
constant temperature automatic control and mobile phone remote control, more simple operation
3 . Energy saving and environmental protection
saving boiler production electricity cost environmental protection standards
Technical parameter:
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electric heating efficiency (%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Number of heating tube groups (group)) | 2 | 2 | 4 | 6 | 10 | 14 | 20 | 30 | 40 |
| Working pressure (Mpa) | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 |
| Evaporation (kg/h) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | 1500 | 2000 |
| Air outlet/ sewage outlet (DN) | 25/40 | 25/40 | 25/40 | 25/40 | 40/40 | 50/50 | 50/50 | 65/50 | 65/50 |
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) | 85 | 150 | 318 | 450 | 750 | 1000 | 1300 | 2100 | 2600 |
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
