Beiste Laboratory Industrial 36kw 72kw Electric Steam Generator Boiler Machine
Product introduction:
DZZQ series high-quality low-voltage electric heater. This container, control group, water pump, electric heating pipe company, air controller, safety valley and other components. Escape can be very clean.
The small electric low-pressure steam generator is electric, has a good sound, and does not require cleaning. Firstly, high-quality heating elements ensure the highest heat utilization rate of the heat load and high-quality surface protection. Firstly, due to the design and complex structure of the cabinet, its appearance is excellent, making it very suitable for small spaces.
Product characteristics:
1. Quick steam generation (3-5 minutes)
2. High thermal efficiency
3. High-end automatic control system
4. Safety interlock device
5. Safety protection devices
Technical parameter:
| Model number | power
(KW) | Adapter cable | Evaporation capacity
Kg/h | Number of heating tubes Kw*N |
| A | ㎜2 |
| DZZQ24-D | 24 | 36 | 16 | 33.3 | 12*2 |
| DZZQ36-D | 36 | 54 | 25 | 50 | 12*3 |
| DZZQ48-D | 48 | 72 | 35 | 66.7 | 12*4 |
| DZZQ72-D | 72 | 108 | 50 | 100 | 36*2 |
| DZZQ108-D | 108 | 162 | 95 | 150 | 36*3 |
| DZZQ144-D | 144 | 216 | 120 | 200 | 36*4 |
| DZZQ180-D | 180 | 270 | 150 | 250 | 36*5 |
| DZZQ216-D | 216 | 324 | 185 | 300 | 36*6 |
| DZZQ288-D | 288 | 432 | 240 | 400 | 36*8 |
| DZZQ360-D | 360 | 540 | 240 | 500 | 36*10 |
| DZZQ432-D | 432 | 648 | 300 | 600 | 36*12 |
| DZZQ504-D | 504 | 756 | 2*185 | 700 | 36*14 |
| DZZQ576-D | 576 | 864 | 400 | 800 | 36*16 |
| DZZQ720-D | 720 | 1080 | 2*300 | 1000 | 36*20 |
| DZZQ1080-D | 1080 | 1620 | 2*400 | 1500 | 36*30 |
| DZZQ1440-D | 1440 | 2160 | 2*500 | 2000 | 36*40 |

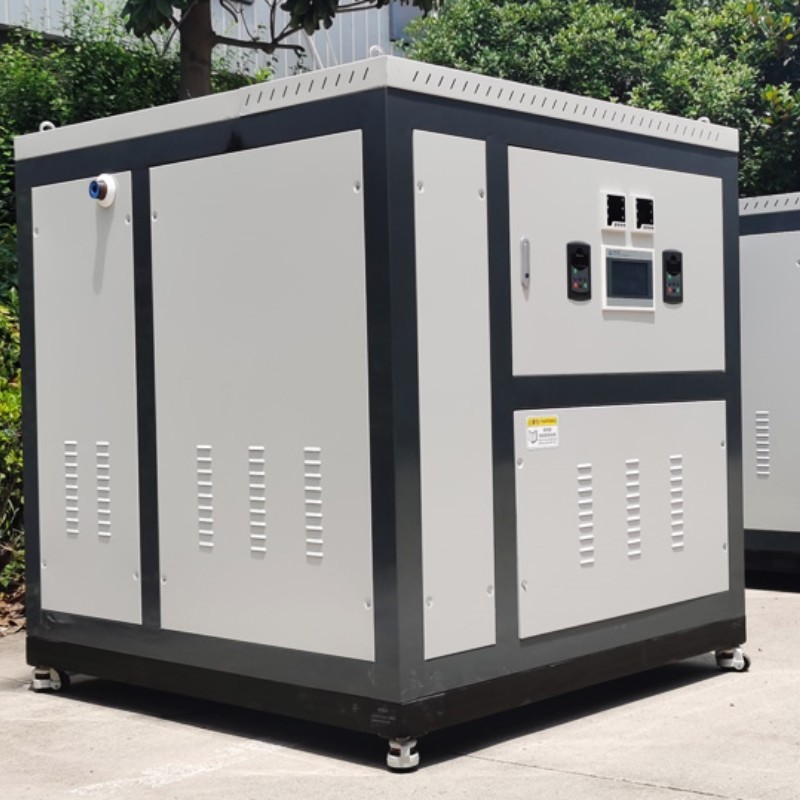

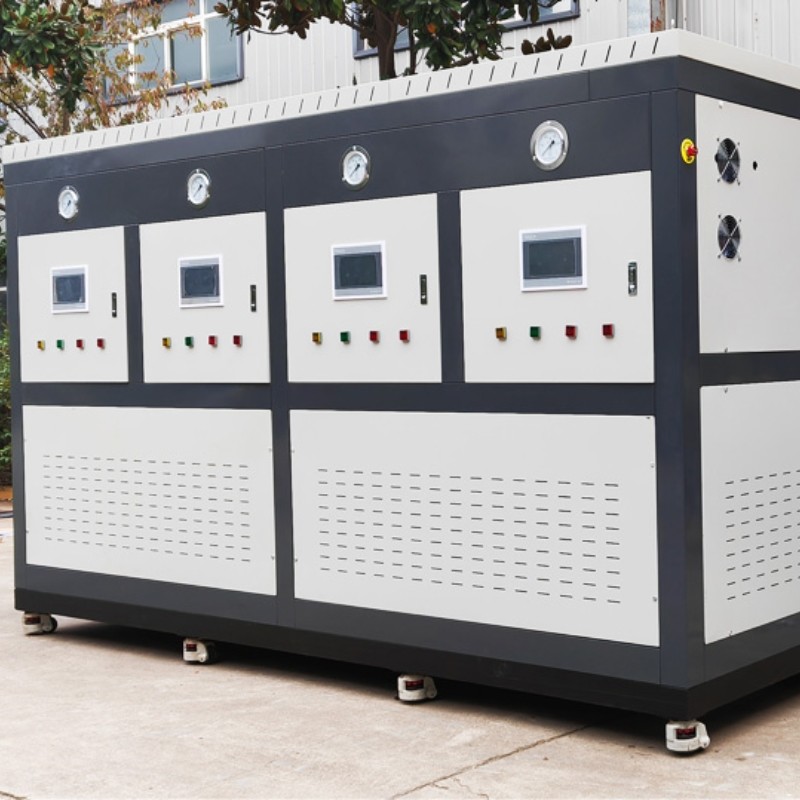

Product display:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
