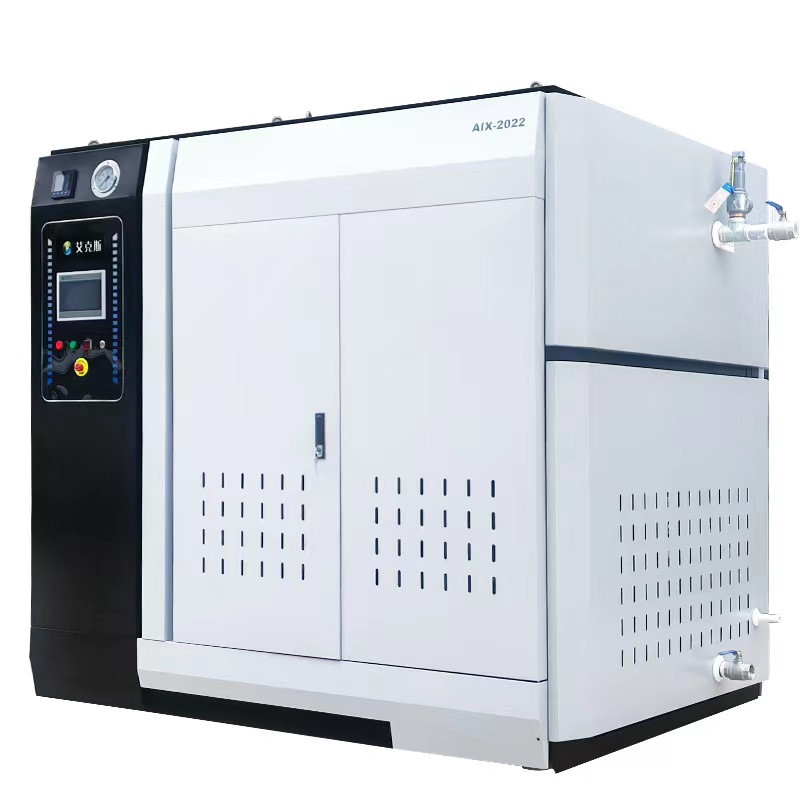

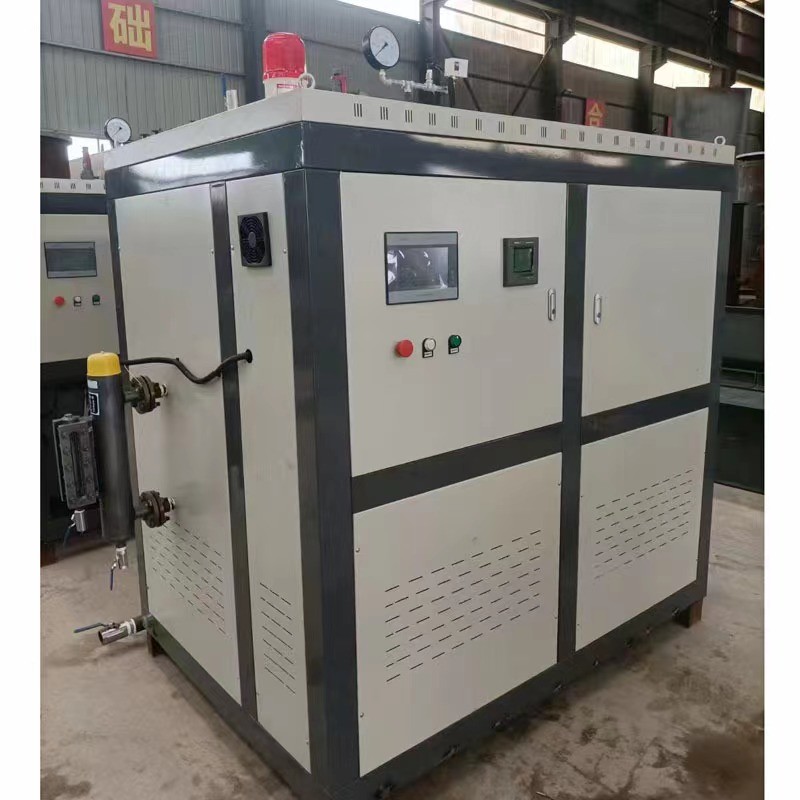

Industrial Resistance Electric Heating Steam Boiler Heating Speed Is Fast And Efficient
Product introduction :
The DZZQ series of high quality automatic electric steam boilers for sale is the perfect choice for those who want to install a steam generator. It consists of components such as containers, electric heat pipes, control units, water supply pumps, level controllers, and relief valves. Automatic the automatic control system is easy to operate and saves labor. It has a small footprint and convenient transportation.
The electric heating steam generator has high heating temperature, low working pressure, energy saving, and can be widely used in various industrial heating processes. Petrochemical industry, synthetic fiber industry, textile printing and dyeing, plastic rubber industry, paper industry, wood industry, building material industry, machinery industry, food industry, electrical equipment, etc.
Product advantage;
Energy saving: high thermal conversion efficiency In the technical use of electromagnetic induction heating, saving energy, fast heating speed, high thermal efficiency. Compared with other fuel, gas, electric heating equipment can save more than 30%.
Green environmental protection: no noise after the electric heating equipment starts. When used, it does not release any harmful gases, no fire, smokeless, tasteless, no traditional heating equipment many pollution problems, and will not produce open flames in the heating process, which truly protects the environment and saves energy
Technical parameters:
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electric heating efficiency (%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Number of heating tube groups (group)) | 2 | 2 | 4 | 6 | 10 | 14 | 20 | 30 | 40 |
| Working pressure (Mpa) | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 |
| Evaporation (kg/h) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | 1500 | 2000 |
Air outlet/ sewage outlet (DN) | 25/40 | 25/40 | 25/40 | 25/40 | 40/40 | 50/50 | 50/50 | 65/50 | 65/50 |
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) | 85 | 150 | 318 | 450 | 750 | 1000 | 1300 | 2100 | 2600 |
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
