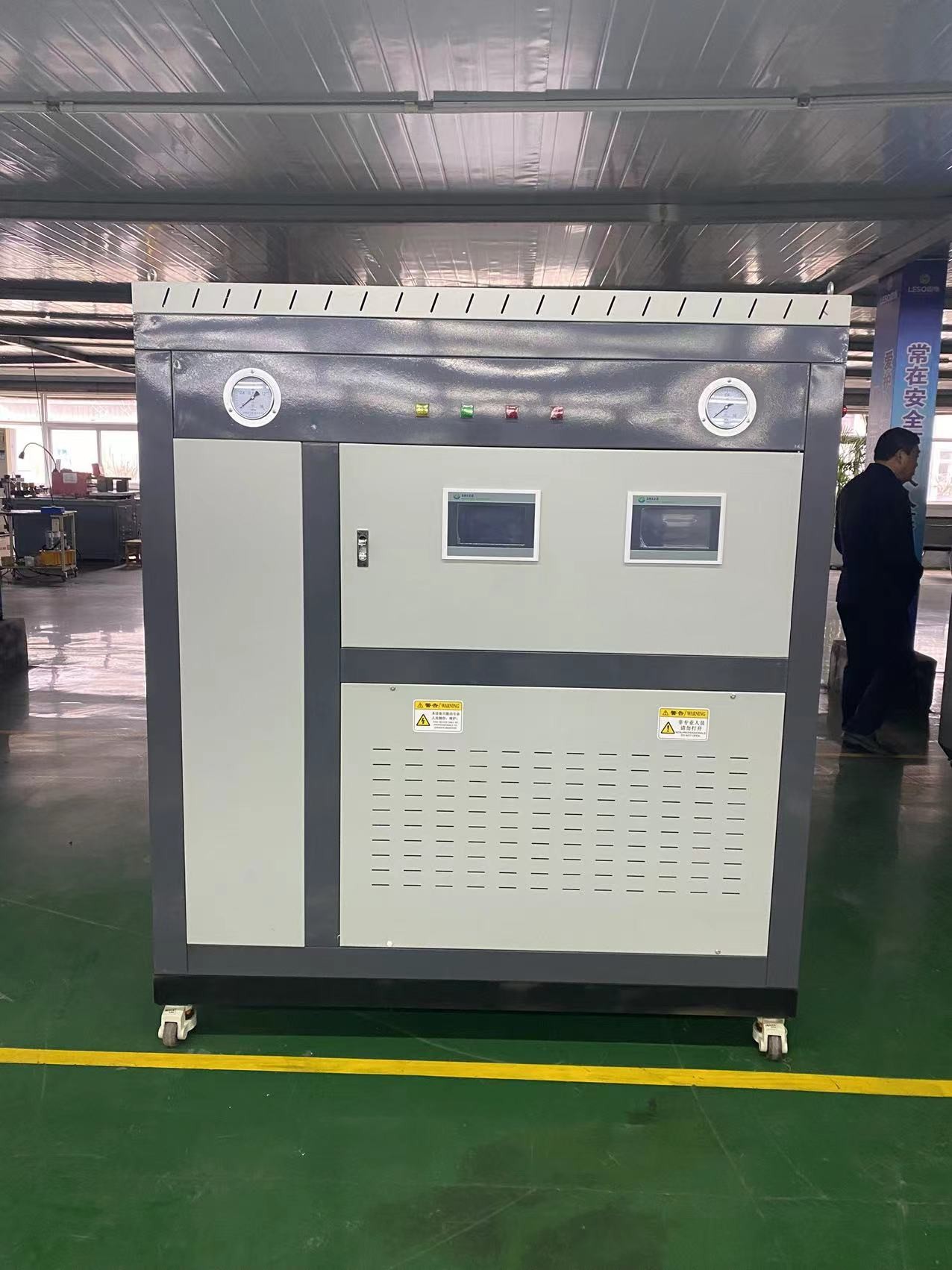

DZZQ Series Electric Heating Steam Boiler Industrial Equipment Is Stable, Safe And Reliable
Product introduction:
DZZQ series sales of high quality fully automatic electric steam boilers. It is composed of container, control group, feed water pump, electric heat pipe assembly, level controller, safety valve and other components. The boiler can be operated independently to reduce manual labor. The small electric steam generator is electric and does not produce noise and pollution. In addition, high quality heating elements ensure low surface heat load and higher thermal efficiency with multiple protections. In addition, thanks to its cabinet design style and compact interior structure, the product has an elegant appearance. Available in sizes from 36KW-1400KW.DZZQ series electric heating steam boiler industrial equipment is stable, safe and reliable.
Product characteristics:
The latest variable frequency heating technology revolutionizes thermal efficiency, reaching up to 98%.
Most importantly, provide a smart remote to make it easier to operate. With the help of mobile remote control, automatically and accurately control the constant temperature.
Last but not least, saving energy and protecting the environment are our most important missions. Our boilers have reduced costs and achieved even higher environmental standards.
Technical parameter;
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electric heating efficiency (%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Number of heating tube groups (group)) | 2 | 2 | 4 | 6 | 10 | 14 | 20 | 30 | 40 |
| Working pressure (Mpa) | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 | 0.1-1.0 |
| Evaporation (kg/h) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | 1500 | 2000 |
| Air outlet/ sewage outlet (DN) | 25/40 | 25/40 | 25/40 | 25/40 | 40/40 | 50/50 | 50/50 | 65/50 | 65/50 |
| Auxiliary control function | Automatic control + remote control |
| Product weight (kg) | 85 | 150 | 318 | 450 | 750 | 1000 | 1300 | 2100 | 2600 |
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 | 4.5*1.6*1.8 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
