Product Description:

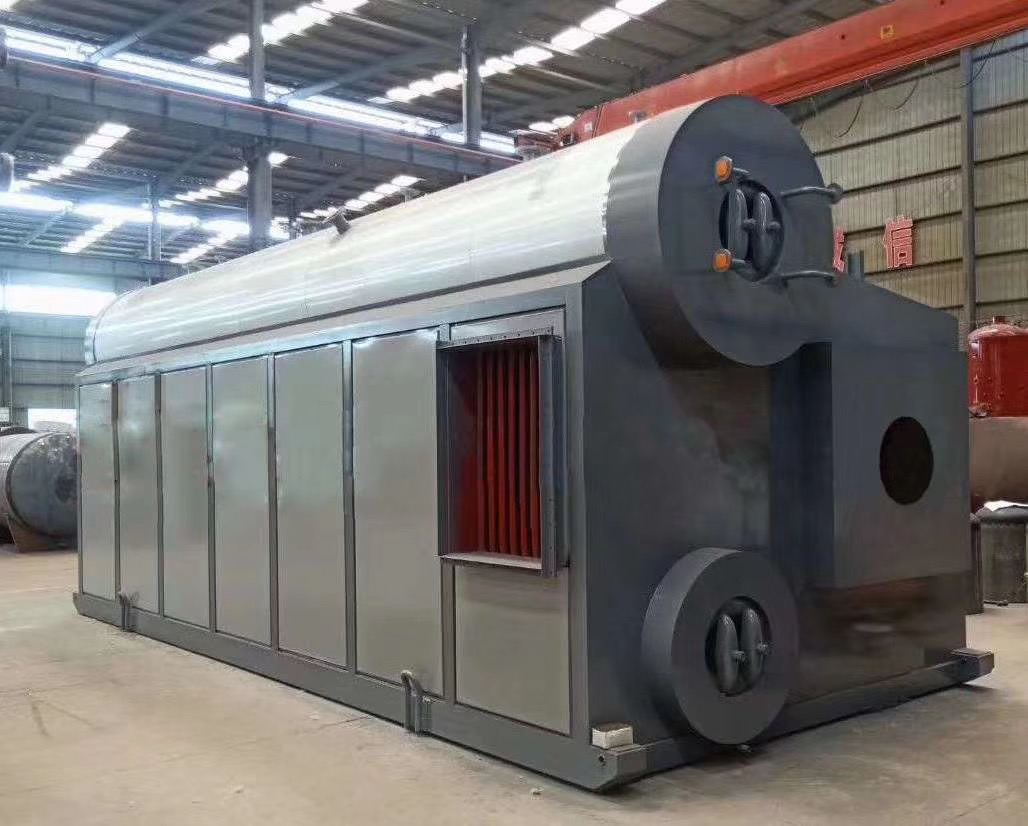

Boiler model SZS means S double boiler, Z longitudinal arrangement structure, S chamber combustion, is a widely used water pipe oil-fired gas boiler.Furnace structure using a large volume furnace design, with imported ultra-low nitrogen burner, effectively inhibit the generation of NOX, better than 30mg/Nm³ emission standards; tail with a condenser energy saver and other waste heat recovery devices, but also makes the boiler thermal efficiency of more than 95%, effectively reducing operating costs. At the same time, the boiler is equipped with a variety of safety interlocks, such as overpressure, over-temperature, low water level alarm, to ensure long-term operational safety and reliability.
Product Features:
1,Full membrane wall structure, no air leakage in the body, small smoke loss, high thermal efficiency.
2,Compact structure, small installation volume, saving investment.
3,Steam boiler adopts natural circulation and adopts larger cross-section ratio, hot water boiler adopts lead-in circulation, water circulation is safe and reliable.

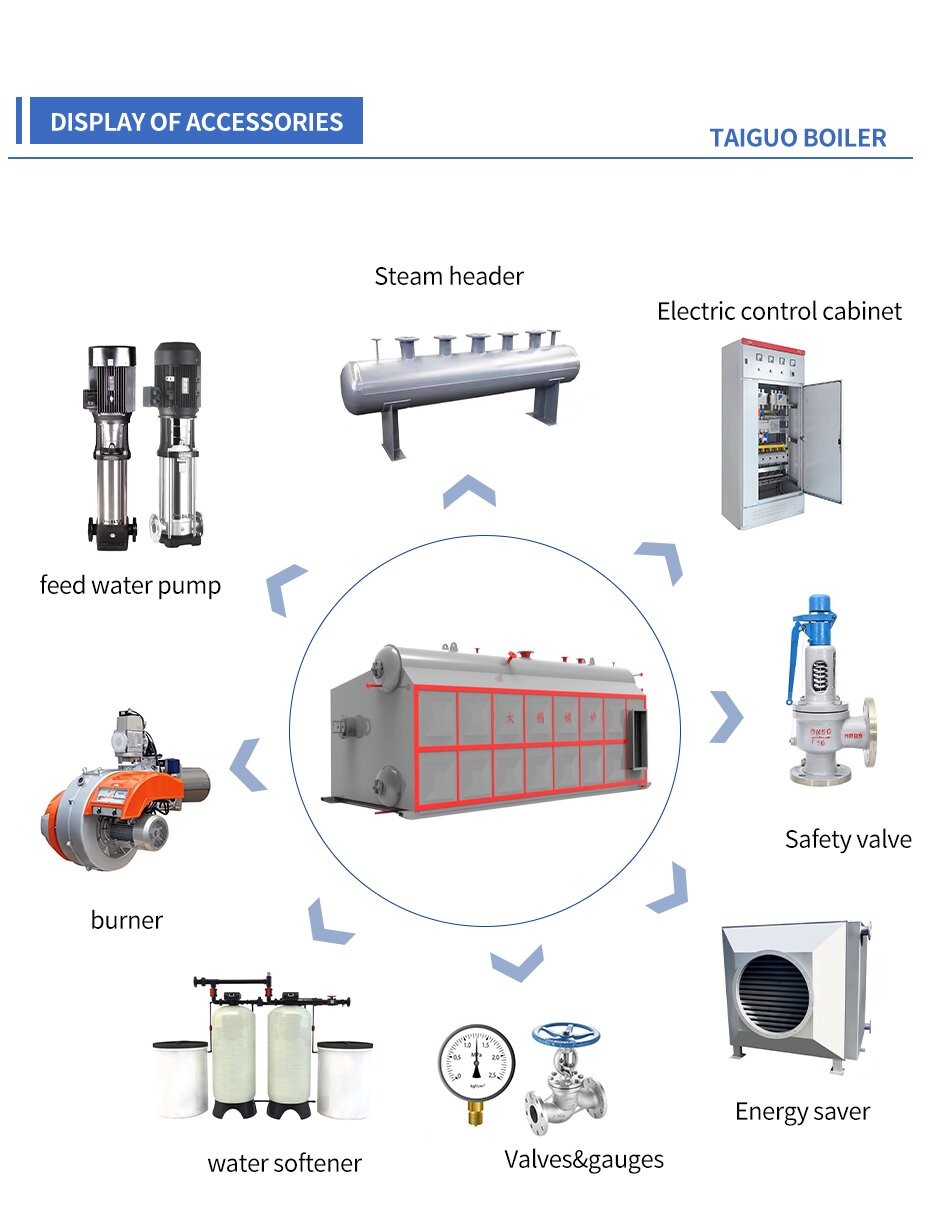

4,Equipped with well-known, high-efficiency brand burners and auxiliary machinery, accessories, to achieve fully automatic operation.
5,The control is perfect to ensure the safe operation of the boiler.
| Model |
SZS4
|
SZS6
|
SZS10
|
SZS15
|
SZ20
|
SZ25
|
SZS30
|
SZS35
|
| Rated evaporation
(t/h) |
4
|
6
|
10
|
15
|
20
|
25
|
30
|
35
|
| Rated working pressure
(Mpa) | |
| Rate steam temperature
(℃) | |
| Feed water temperature
(℃) | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 |
| heating
area(m)Body | 90.22 | 125.6 | 205.56 | 216.84 | 271.5 | 285.24 | 392.34 | 457.7 |
| Available Fuel | natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil |
| Fuel consumption
Natural gas(Nm3/h) |
288
|
432
|
720
|
1080
|
1440
|
1800
|
2160
|
2525
|
| Thermal efficiency (%) | |
| Weight biggest part of Transportation (t) | 25 | 32 | 40 | 45 | 50.6 | 60 | 68.2 | 77 |
| Overall dimension boiler assembied L×W×H( m ) | 5.76*4.1 0*3.70 | 7.84*3.4 0*3.40 | 8.00*43. 60*4.70 | 8.90*3.9 0*4.00 | 8.90*3.9 0*4.00 | 10.50*4. 12*4.15 | 10.50*4. 30*4.23 | 11.78*4. 40*4.35 |
