10-30t/h Horizontal Water Pipe Steam Boiler Double Cylinder High Efficiency

Product introduction:

SZS series steam boiler products are typical boiler cylinder vertical type "D" layout quick loading water tube boiler, micro positive pressure operation. It is composed of an upper and lower pot tube, a film water cooling wall, superheater, convection tube bundle, energy saver and condenser, the burner is arranged in the front wall, the fuel is burned in the furnace, the flue gas successively washed the first convection tube bundle, superheater, second convection tube bundle, energy saver and condenser, discharged into the chimney.

Product advantage:

1, high safety: boiler adopts double boiler cylinder longitudinal D-type arrangement, compact structure, boiler cylinder and other important components are not directly affected by high temperature flame radiation and erosion, pressure elements telescopic freely, small thermal stress, to achieve higher safety margin.
2, good sealing: the boiler furnace and convection flue all around the film water wall structure, the boiler body seal reliable, prevent smoke leakage.
3, less pollutants: the boiler furnace adopts full film water-cooled wall double furnace structure, the furnace volume is large, the water cooling degree is high, the combustion space is large, the combustion temperature is low, the air leakage is less, the generated nitrogen oxides are less, the pollutants are less, and the treatment cost is low.
4, low cost: boiler automatic operation, micro positive pressure combustion, no need for induced draft fan, reduce boiler system investment, reduce boiler operating costs.

Technical parameter:

FAQ:

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

30t/h Water Pipe Steam Boiler

Double Cylinder Water Pipe Steam Boiler

High Efficiency Water Pipe Steam Boiler

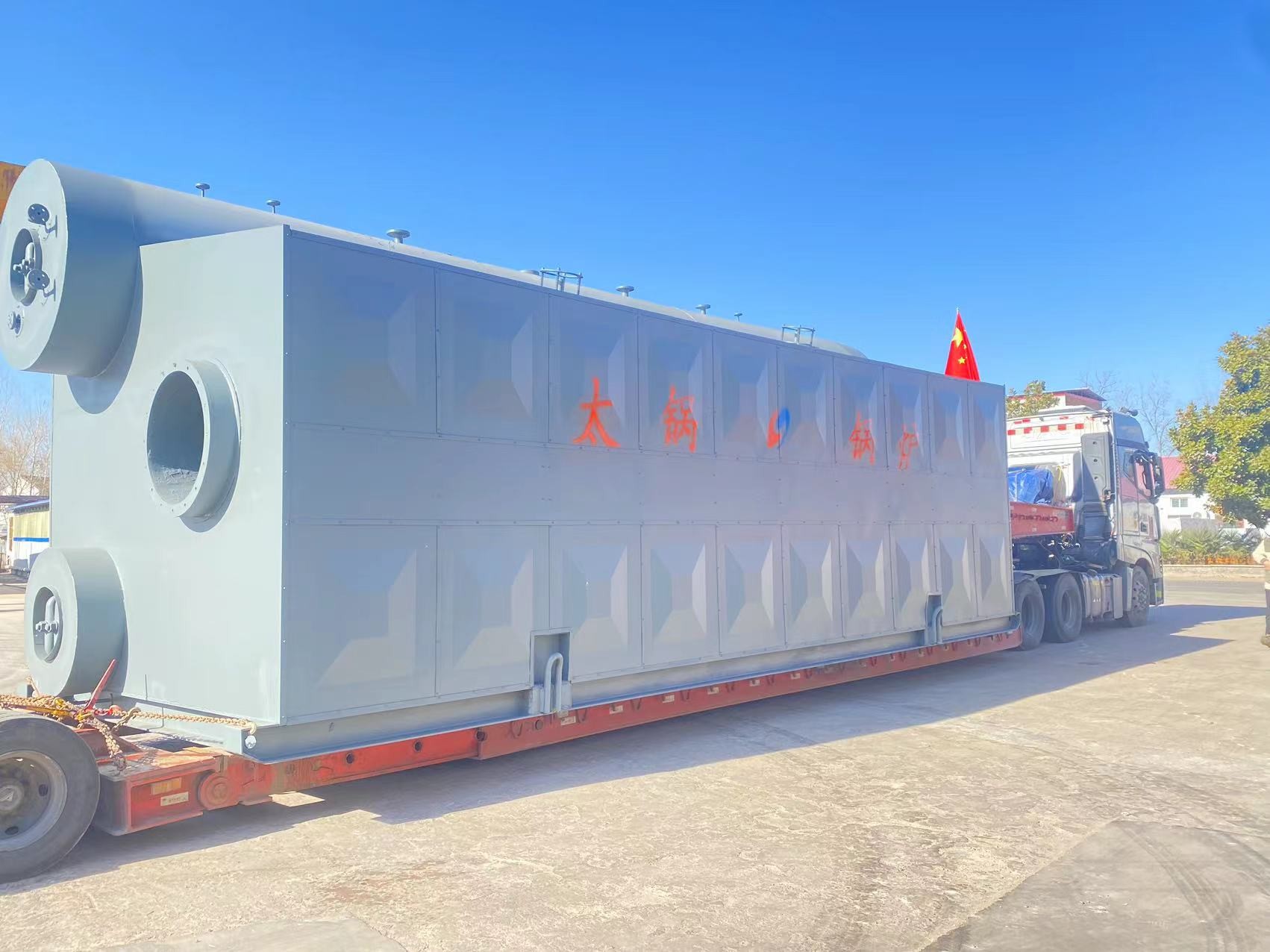

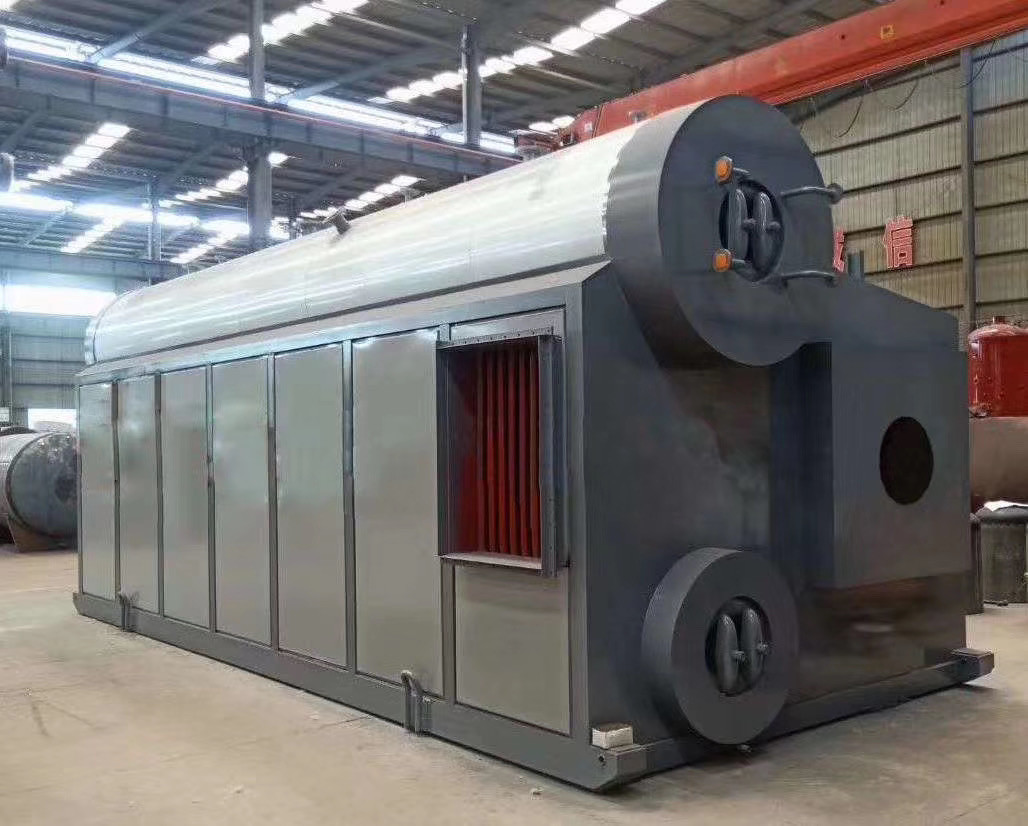

10-30t/h Horizontal Water Pipe Steam Boiler Double Cylinder High Efficiency Images
