Gas Steam Boiler 10 Ton Industrial Oil Gas Fired Steam Boiler

HENAN TAIGUO BOILER PRODUCTS CO.,LTD.
Contact Now

Gas Steam Boiler 10 Ton Industrial Oil Gas Fired Steam Boiler

  • 1
  • 2

Brand Name : TAIGUO

Model Number : SZS10

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $10000.00

Payment Terms : L/C, T/T

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Product name : industrial steam boilers

Steam yield : 6t/h-45t/h

Working pressure : 1.25、1.6Mpa

Fuel : Oil and gas

Specification : SZS-20

Steam Capacity : Max. 60t/h

Weight : 45.6ton

Mode Of Transport : Sea and land transport

Trademark : TAIGUO

Product Model : SZS

Core Components : Energy saving

Tube Material : Alloy Steel

Manufacturer : taiguo, 50 Years History

Pressure : Up to 2,000 psig

Capacity : Up to 500,000 lb/hr

Emission Standard : ≤30mg/Nm3

Suitable Fuel : oil

Type Of Boiler : Horizontal Steam Boiler

Key Selling Points : Automatic and high efficiency

Contact Now

Industrial Steam Boilers Sufficient Saturated Steam Output Low Nitrogen Combustion With Low Heat Loss In Smoke Exhaust

Product introduction:

SZS series boiler is a fully automatic horizontal double drum water tube boiler.It is equipped with complete automatic control device and safety protection device to realize the functions of automatic water level control,dangerous low water level alarm,boiler shutdown,automatic pressure control and over pressure alarm,boiler automatic ignition,automatic fire regulation and flame out protection,so as to ensure the safe and stable operation of the boiler.

Product advantage:

1, long life, sufficient output, high efficiency. Scientific product design, advanced processing technology, rigorous quality control, all the boiler equipment produced by our factory, the continuous operation life is up to more than 10 years. The radiant heating surface of the boiler is the whole corrugated furnace and the convection heating surface is threaded smoke pipe. The heating surface is large, the boiler's heat production output is sufficient, and the thermal efficiency is higher than 92%, which is higher than the national regulations.
2. Abundant fuel, energy saving and environmental protection. The boiler combustion chamber design is reasonable, fully adapt to the city gas, natural gas, light diesel, heavy oil and other fuels, fuel in the furnace micro-positive pressure combustion, combustion is complete, less flue gas pollutants, boiler flue gas blackness, smoke blackness, concentration, noise and other technical indicators are better than the national first-class regional standards

Technical parameter;

Model ltem

SZS4

SZS6

SZS10

SZS15

SZ20

SZ25

SZS30

SZS35

SZS40

Rated evaporation

(t/h)

4

6

10

15

20

25

30

35

40

Rated working pressure

(Mpa)

1.25/ 1.6/2.5

Rate steam temperature

(℃)

194/204/226

Feed water temperature

(℃)

2020104/20104/20104/20104/20104/20104/20104/20

heating

area(m)

Body90.22125.6205.56216.84271.5285.24392.34457.7523.12
Economizer35.863.4132.2283.6411.2504.8471.2549.7628.2
Condenser25.441.562.8101.1134.7168.3252.4294.7336.8
Available Fuelnatural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil

Fuel consumption

Natural gas

(Nm3/h)

288

432

720

1080

1440

1800

2160

2525

2881

Light oil

(kg/h)

24437262093012401550186020792373
Thermal efficiency (%)>98
Weight biggest part of Transportation (t)2532404550.66068.27785.5
Overall dimension boiler assembied L×W×H( m )5.76*4.1 0*3.707.84*3.4 0*3.408.00*43. 60*4.708.90*3.9 0*4.008.90*3.9 0*4.0010.50*4. 12*4.1510.50*4. 30*4.2311.78*4. 40*4.35

12.82*4.

45*4.40

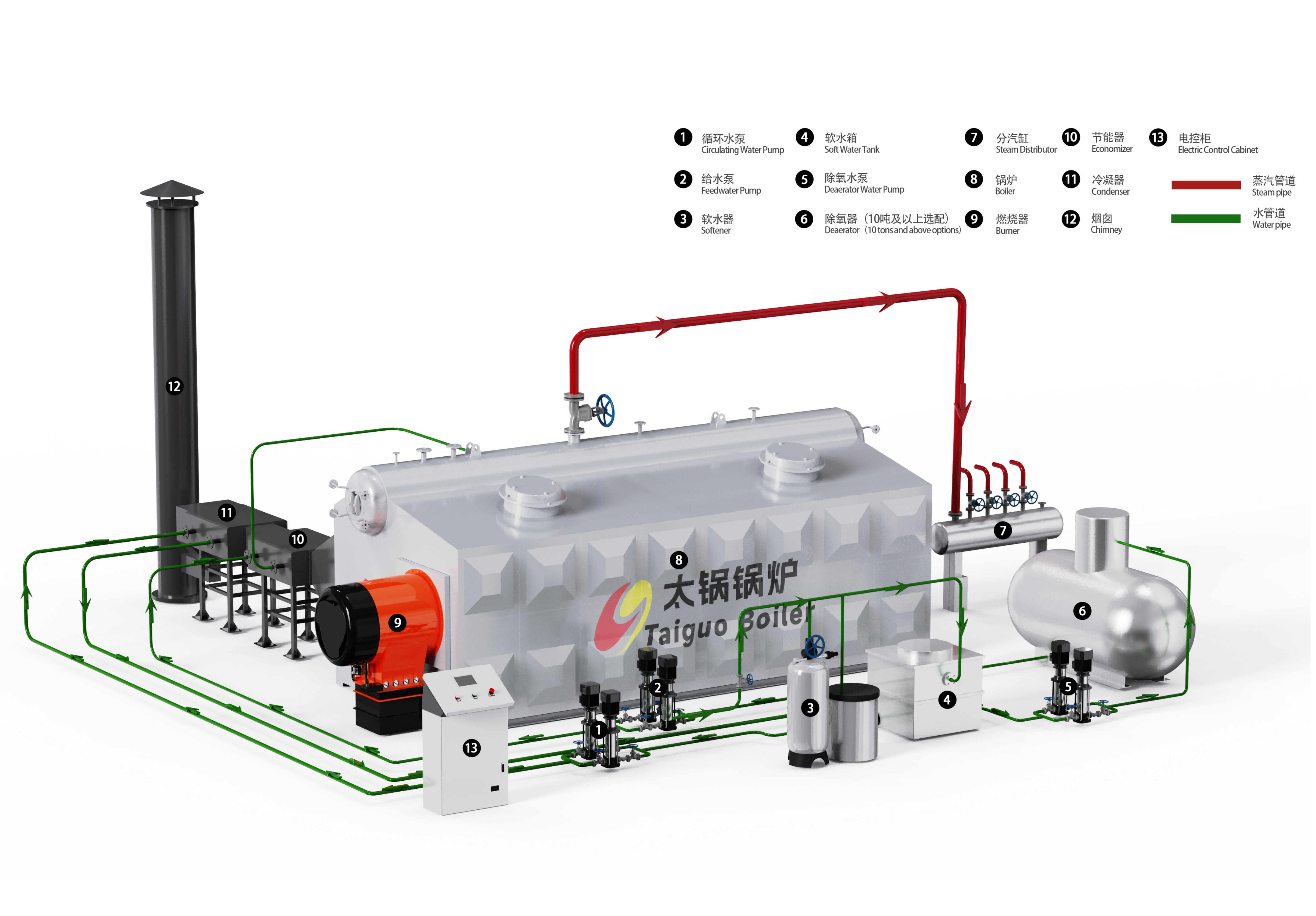

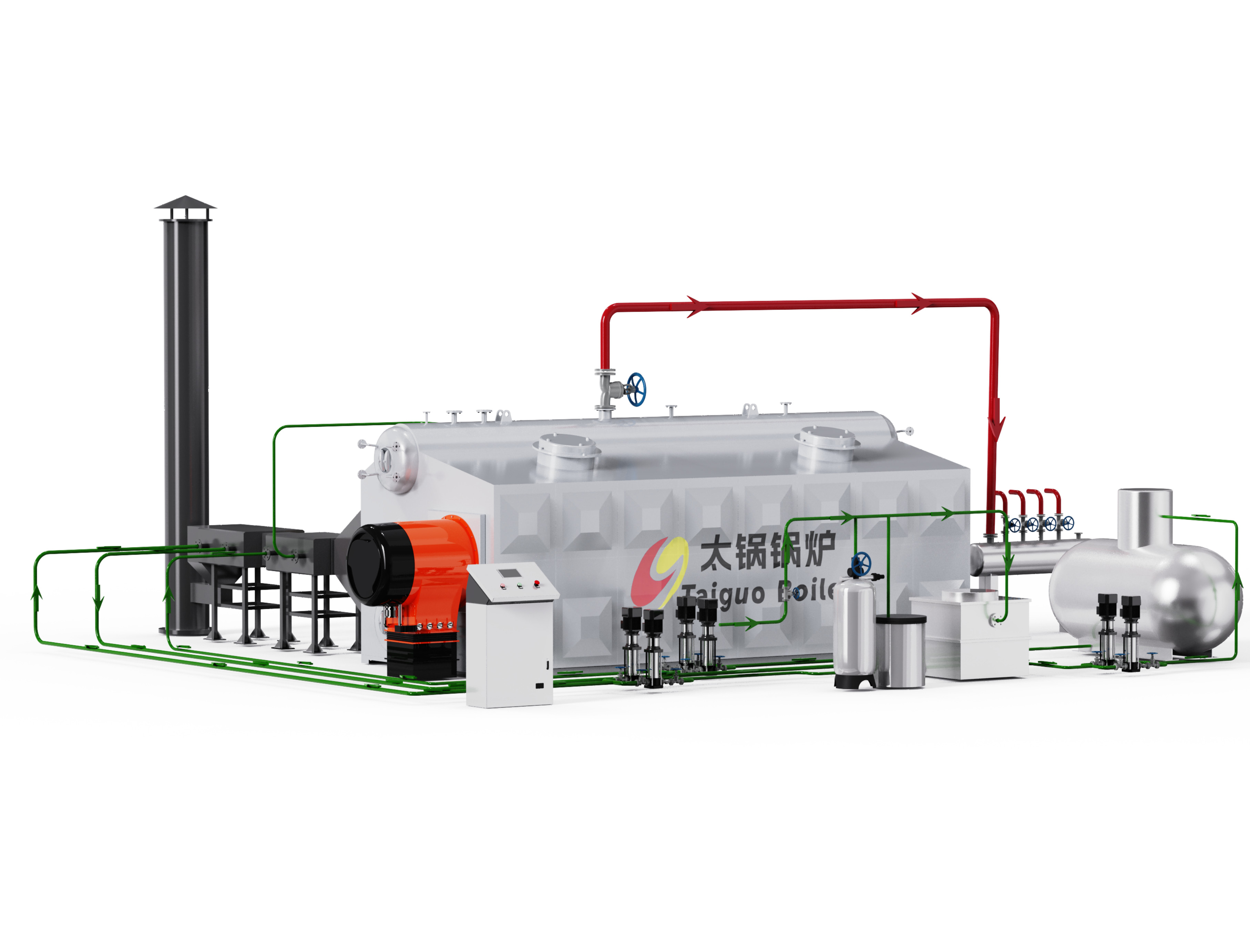

Product operation flow chart:

Gas Steam Boiler 10 Ton Industrial Oil Gas Fired Steam BoilerGas Steam Boiler 10 Ton Industrial Oil Gas Fired Steam Boiler
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
