Product Description:

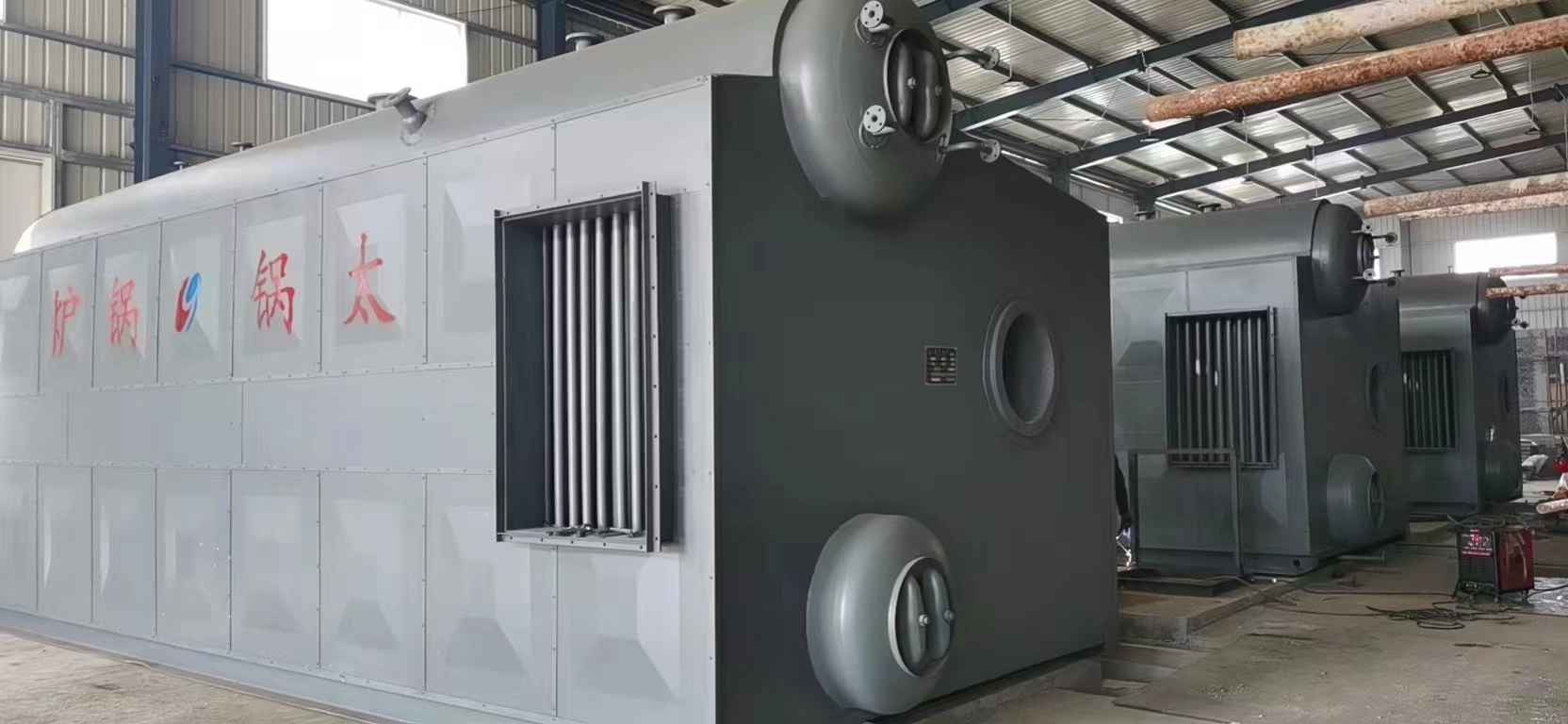

SZS series boiler is a fully automatic horizontal double drum water tube boiler.It is equipped with complete automatic control device and safety protection device to realize the functions of automatic water level control,dangerous low water level alarm,boiler shutdown,automatic pressure control and over pressure alarm,boiler automatic ignition,automatic fire regulation and flame out protection,so as to ensure the safe and stable operation of the boiler.
Boiler model: SZS steam boiler
Rated Capacity:10-65 ton/h
Rated Pressure:1.25/1.6 Mpa
Rated Temperature:194/204℃
Boiler fuel:natural gas, diesel, lpg, biogas, heavy oil,etc.
Features:
1. SZS series oil/gas industrial steam boiler machine here is a special boiler type
2.The two drums are parallel type ,and shapes like "D"
3.Water tube structure, micro positive pressure chamber burning
4.The output can be hot water, steam, superheated steam and so on
5.The burner is designed in the boiler front, so the operation and maintenance are easy.
6.Easy installation, low boiler room investment
Technical Parameters:
| Parameters | Details |
| Pressure | 1.25Mpa, 1.6Mpa, 2.5Mpa |
| Fuel | Oil, Gas, Dual Fuel |
| Capacity | 4ton/hr to 20 Ton/hr |
| Control System | PLC |
| Warranty | 1 Year |
| Installation | Pry Mounting, Quick Mounting |
| Structural form | Type D Double Drum Horizontal |
| Temperature | 194℃, 204℃, 226℃ |
| Applicable industry | Medicine, Chemical Industry, Light Industry, Textile, Building Materials, Culture, Food And Beverage Processing, Plastic Foam, Paper Making, Wood Processing, Clothing And Leather |
| Burner | Oil, Gas, Dual Fuel |
Applications:
Application industry:
Medicine, chemical, light industry, textile, building material,cultivation, food and beverage, plastic foam,printing, dyeing and washing, rubber processing,paper products, wood processing,hotel, clothing and leather manufacture etc.
Support and Services:
Water tube steam boiler technical support and service
We provide our customers with comprehensive technical support and services to ensure that their water tube steam boilers operate as efficiently and safely as possible.
Our team of experienced engineers, technicians and customer service personnel are on hand to advise and assist with any technical problems or queries, as well as to provide regular maintenance and service products.
We can provide on-site support and assistance when needed, as well as remote technical support when needed. Our engineers can participate in emergency calls at any time and can diagnose any faults or problems quickly and efficiently.
We are committed to providing our customers with the highest level of technical support and service to ensure that their water tube steam boilers are operating at their optimum performance.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
