Product introduction:

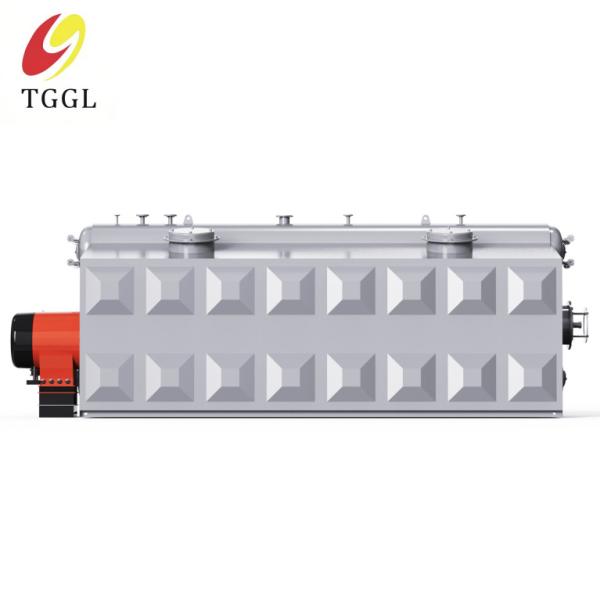

The product is a typical boiler tube vertical type "D" layout quick loading water tube boiler, micro-positive pressure operation. It is composed of an upper and lower pot tube, a film water cooling wall, superheater, convection tube bundle, energy saver and condenser, the burner is arranged in the front wall, the fuel is burned in the furnace, the flue gas successively washed the first convection tube bundle, superheater, second convection tube bundle, energy saver and condenser, discharged into the chimney.
Product characteristics:
(1) The boiler adopts double drum "D" type arrangement, compact structure, small footprint, good flame filling degree.
(2) The boiler is fixed at the front end and supported at the lower part. After ignition and heating, it can expand freely backward and upward, and the components work safely and reliably.
(3) The furnace water wall and convection flue are made of film wall structure, good air tightness, suitable for positive pressure operation, and effectively reduce the use of refractory materials and maintenance workload.
⑷ Self-supporting structure, good seismic performance. The weight of the body structure is placed on the steel base, and the membrane wall welded structure makes the whole boiler integrated, which is especially suitable for earthquake zones and earthquake fortified areas.
(5) The outer packing of the boiler adopts the pressing protection plate, which is beautiful and beautiful in appearance.
The furnace of the boiler is provided with an inspection hole, which provides great convenience for use and maintenance. Explosion-proof doors are provided on the top of the furnace.
The boiler adopts rapid loading structure, which can effectively shorten the installation period.
(8) The use of high thermal resistance material as insulation layer, good thermal insulation performance.
Economizer and condenser are arranged at the tail, which can effectively control the smoke exhaust temperature, and the boiler has high thermal efficiency.

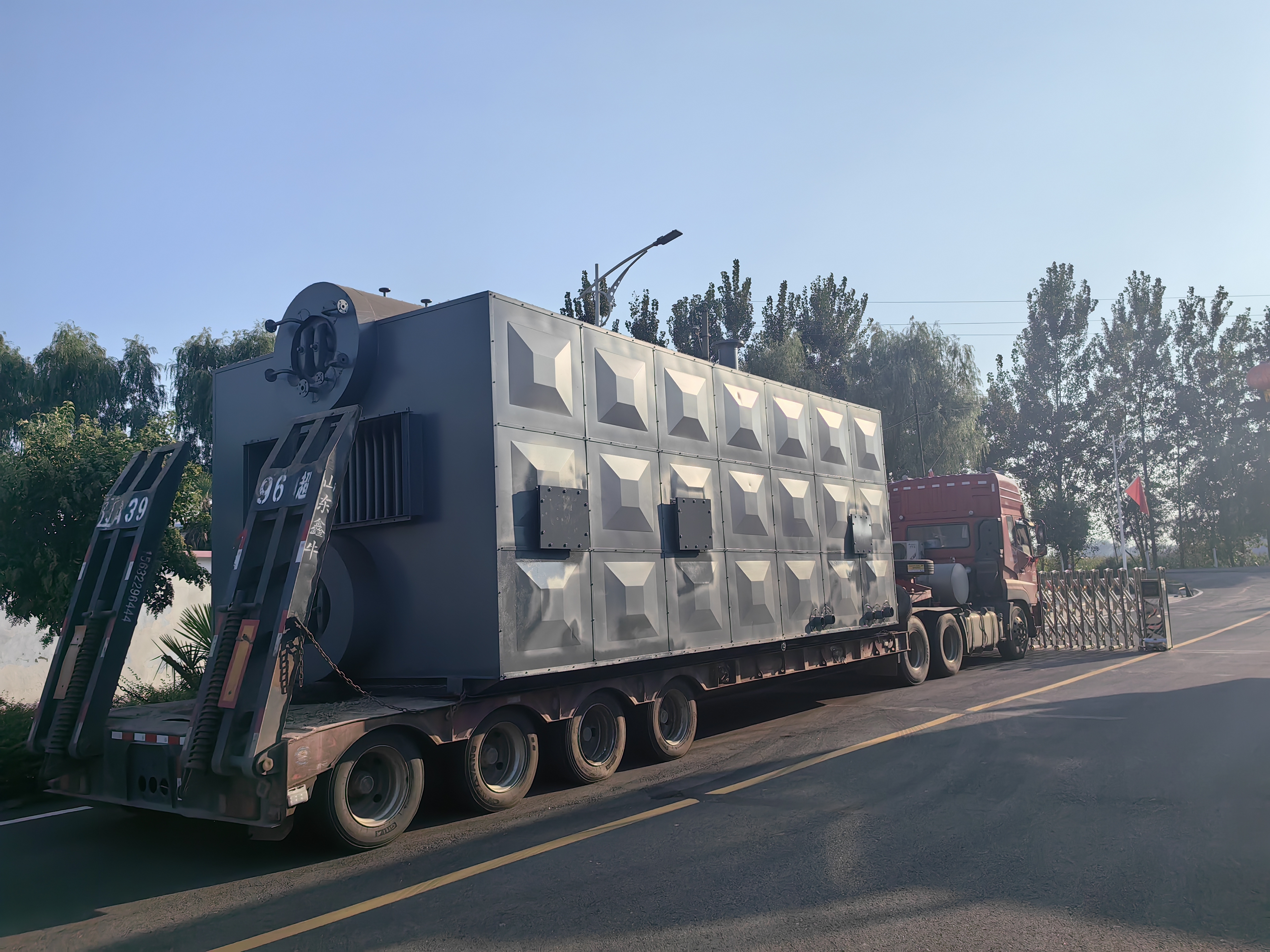

The whole boiler is mounted on a strong steel base for easy installation and transportation.
(11) The boiler has a rich heating surface and a large enough water space to ensure the stability of the boiler parameters.
Technical parameter:
 Model ltem | SZS4 | SZS6 | SZS10 | SZS15 | SZ20 | SZ25 | SZS30 | SZS35 | SZS40 |
Rated evaporation (t/h) | 4 | 6 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
Rated working pressure (Mpa) | 1.25/ 1.6/2.5 |
Rate steam temperature (℃) | 194/204/226 |
Feed water temperature (℃) | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 |
heating area(m) | Body | 90.22 | 125.6 | 205.56 | 216.84 | 271.5 | 285.24 | 392.34 | 457.7 | 523.12 |
| Economizer | 35.8 | 63.4 | 132.2 | 283.6 | 411.2 | 504.8 | 471.2 | 549.7 | 628.2 |
| Condenser | 25.4 | 41.5 | 62.8 | 101.1 | 134.7 | 168.3 | 252.4 | 294.7 | 336.8 |
| Available Fuel | natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil |
Fuel consumption | Natural gas (Nm3/h) | 288 | 432 | 720 | 1080 | 1440 | 1800 | 2160 | 2525 | 2881 |
Light oil (kg/h) | 244 | 372 | 620 | 930 | 1240 | 1550 | 1860 | 2079 | 2373 |
| Thermal efficiency (%) | ＞98 |
| Weight biggest part of Transportation (t) | 25 | 32 | 40 | 45 | 50.6 | 60 | 68.2 | 77 | 85.5 |
| Overall dimension boiler assembied L×W×H( m ) | 5.76*4.1 0*3.70 | 7.84*3.4 0*3.40 | 8.00*43. 60*4.70 | 8.90*3.9 0*4.00 | 8.90*3.9 0*4.00 | 10.50*4. 12*4.15 | 10.50*4. 30*4.23 | 11.78*4. 40*4.35 | 12.82*4. 45*4.40 |
