Product introduction:
SZS series double-drum oil-fired gas steam boiler has sufficient output and strong overload capacity; high thermal efficiency, low smoke emission concentration, significant energy-saving and environmental protection benefits; high degree of automation; beautiful and novel appearance. The scope of application of double-drum oil-fired gas steam boiler: mainly used in steam supply, product drying, dehumidification, distillation, etc. in papermaking industry, printing and dyeing industry, food industry, chemical industry, metallurgical industry, building materials industry, brewing industry and other industries.
Product advantage:
1. "D" type layout: compact structure, small footprint, good flame fullness. The internationally popular shell-type three-pass, full wet back structure and large combustion chamber design make the combustion more complete.
2. Membrane wall structure: The furnace adopts a membrane water-cooled wall structure, and the boiler as a whole adopts a fully enclosed welded structure of airtight inner guard plate, and the furnace wall has good sealing; less smoke loss and high thermal efficiency.
3. Large heating surface, good insulation effect The furnace volume is large, the radiation heating surface is sufficient, the fuel combustion is completely sufficient, and the environmental protection performance is good; the boiler output is sufficient and has overload capacity; high thermal resistance material is used as the insulation layer, and the insulation performance is good.
4. Fully automatic operation: The tail is equipped with a flue gas condensation recovery device, which can effectively control the exhaust temperature and the boiler has high thermal efficiency; it is equipped with well-known and efficient brand burners and auxiliary machines and accessories, fully automatic operation, continuous electric adjustment of water supply, and high combustion efficiency.
5. Inspection holes and explosion-proof doors are provided: In order to ensure the safety of boiler ignition, explosion-proof doors are designed on the top of the boiler. The furnace is equipped with inspection holes, which makes the boiler safe, reliable in operation and easy to maintain and overhaul.
Technical parameter:
| Model ltem | SZS4 | SZS6 | SZS10 | SZS15 | SZ20 | SZ25 | SZS30 | SZS35 | SZS40 |
| Rated evaporation (t/h) | 4 | 6 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| Rated working pressure (Mpa) | 1.25/ 1.6/2.5 |
| Rate steam temperature (℃) | 194/204/226 |
| Feed water temperature (℃) | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 |
| heating area(m) | Body | 90.22 | 125.6 | 205.56 | 216.84 | 271.5 | 285.24 | 392.34 | 457.7 | 523.12 |
| Economizer | 35.8 | 63.4 | 132.2 | 283.6 | 411.2 | 504.8 | 471.2 | 549.7 | 628.2 |
| Condenser | 25.4 | 41.5 | 62.8 | 101.1 | 134.7 | 168.3 | 252.4 | 294.7 | 336.8 |
| Available Fuel | natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil |
| Fuel consumption | Natural gas (Nm3/h) | 288 | 432 | 720 | 1080 | 1440 | 1800 | 2160 | 2525 | 2881 |
| Light oil (kg/h) | 244 | 372 | 620 | 930 | 1240 | 1550 | 1860 | 2079 | 2373 |
| Thermal efficiency (%) | ＞98 |
| Weight biggest part of Transportation (t) | 25 | 32 | 40 | 45 | 50.6 | 60 | 68.2 | 77 | 85.5 |
| Overall dimension boiler assembied L×W×H( m ) | 5.76*4.1 0*3.70 | 7.84*3.4 0*3.40 | 8.00*43. 60*4.70 | 8.90*3.9 0*4.00 | 8.90*3.9 0*4.00 | 10.50*4. 12*4.15 | 10.50*4. 30*4.23 | 11.78*4. 40*4.35 | 12.82*4. 45*4.40 |

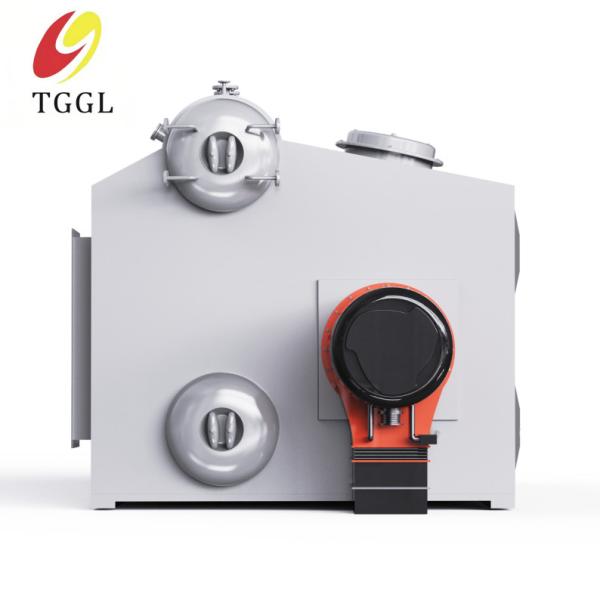

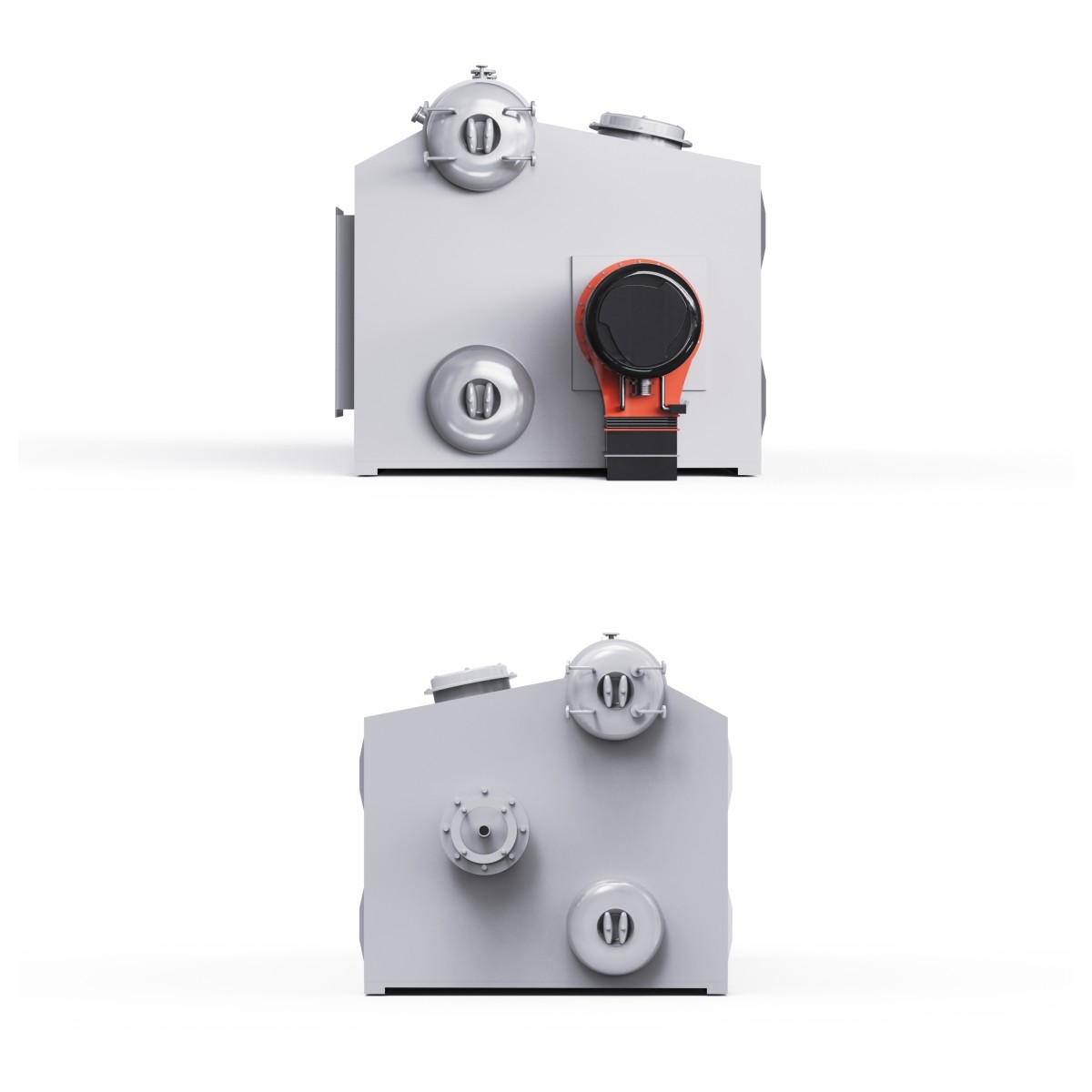

Product display:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
