Product introduction:
As the name implies, a double-drum gas steam boiler is a steam boiler with two drums, presenting a "D" shape design. Most of our common gas steam boilers are single-drum boilers. Relatively speaking, double-drum boilers have better thermal efficiency and stronger performance. The boiler is equipped with a complete automatic control device and safety protection device with high and low water level alarms, low water level interlocking protection, steam overpressure alarm and interlocking protection functions; automatic boiler ignition, automatic burner fire adjustment and flameout protection, safe operation of the boiler.
Product advantage:
1. The boiler adopts a D-type layout, and the side wall of the furnace adopts advanced dense membrane water-cooled wall micro-positive pressure combustion, which can further improve the thermal efficiency of the boiler and increase the heating area.
2. Scientific structure and reasonable design. The furnace design is reasonable and scientific, further improving the combustion space, and the appearance is beautiful. Boilers below 10 tons can directly realize the whole set of equipment out of the factory, which is very convenient.
3. The intelligent computer control cabinet is adopted, which has an advanced intelligent control system. We can fully operate and control the boiler through the virtual buttons on the LCD screen, saving time and effort.
4. Due to the use of gas as fuel (natural gas, liquefied petroleum gas, coal gas, etc.), coupled with a high-performance gas burner, the fuel can be fully burned in the boiler furnace, which has the characteristics of clean, environmentally friendly and ultra-high thermal efficiency.
Technical parameter:
Model
ltem | SZS4 | SZS6 | SZS10 | SZS15 | SZ20 | SZ25 | SZS30 | SZS35 | SZS40 |
Rated evaporation (t/h) | 4 | 6 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
Rated working pressure (Mpa) | 1.25/ 1.6/2.5 |
Rate steam temperature (℃) | 194/204/226 |
Feed water temperature (℃) | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 |
heating area(m) | Body | 90.22 | 125.6 | 205.56 | 216.84 | 271.5 | 285.24 | 392.34 | 457.7 | 523.12 |
| Economizer | 35.8 | 63.4 | 132.2 | 283.6 | 411.2 | 504.8 | 471.2 | 549.7 | 628.2 |
| Condenser | 25.4 | 41.5 | 62.8 | 101.1 | 134.7 | 168.3 | 252.4 | 294.7 | 336.8 |
| Available Fuel | natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil |
Fuel consumption | Natural gas (Nm3/h) | 288 | 432 | 720 | 1080 | 1440 | 1800 | 2160 | 2525 | 2881 |
Light oil (kg/h) | 244 | 372 | 620 | 930 | 1240 | 1550 | 1860 | 2079 | 2373 |
| Thermal efficiency (%) | ＞98 |
| Weight biggest part of Transportation (t) | 25 | 32 | 40 | 45 | 50.6 | 60 | 68.2 | 77 | 85.5 |
| Overall dimension boiler assembied L×W×H( m ) | 5.76*4.1 0*3.70 | 7.84*3.4 0*3.40 | 8.00*43. 60*4.70 | 8.90*3.9 0*4.00 | 8.90*3.9 0*4.00 | 10.50*4. 12*4.15 | 10.50*4. 30*4.23 | 11.78*4. 40*4.35 | 12.82*4. 45*4.40 |

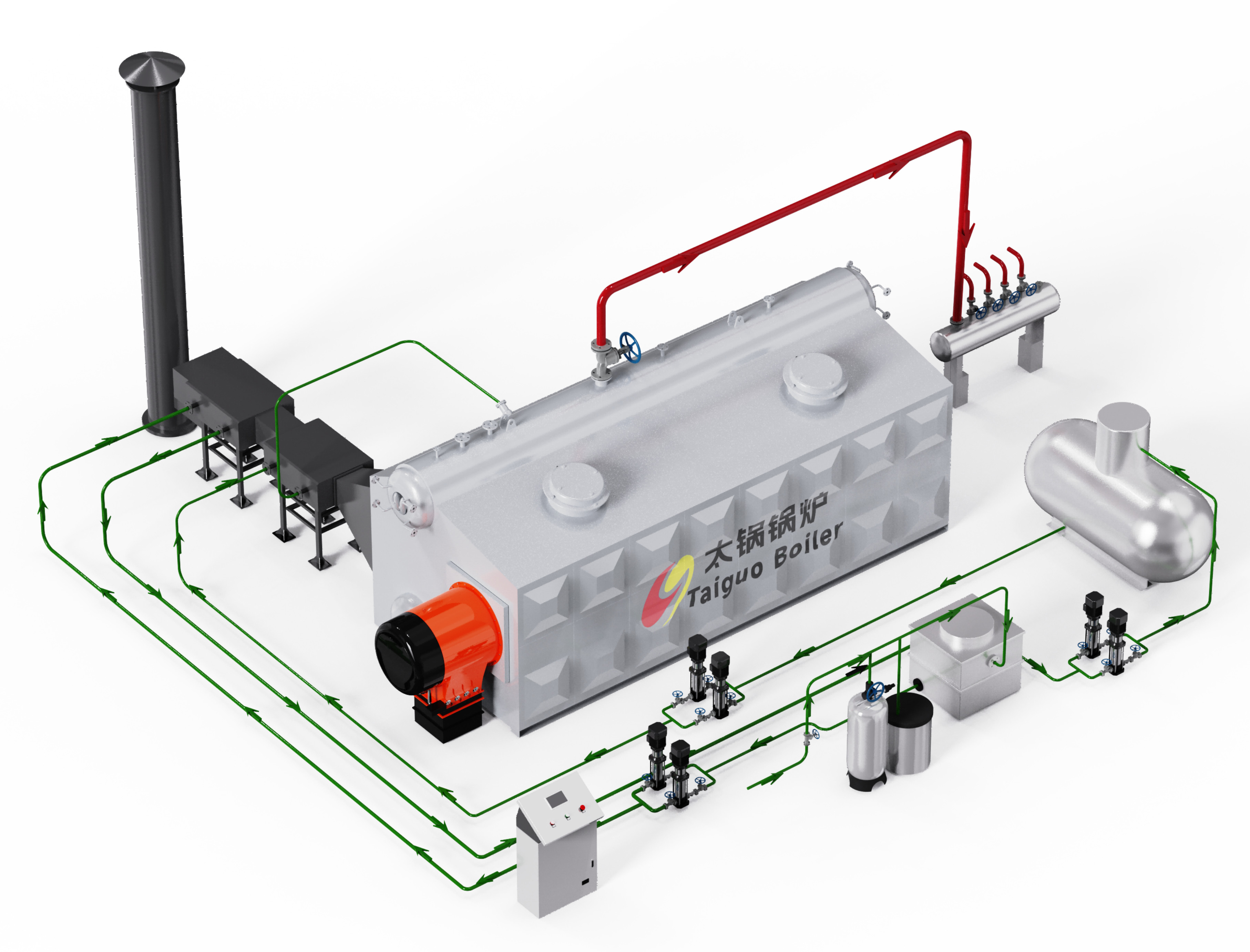

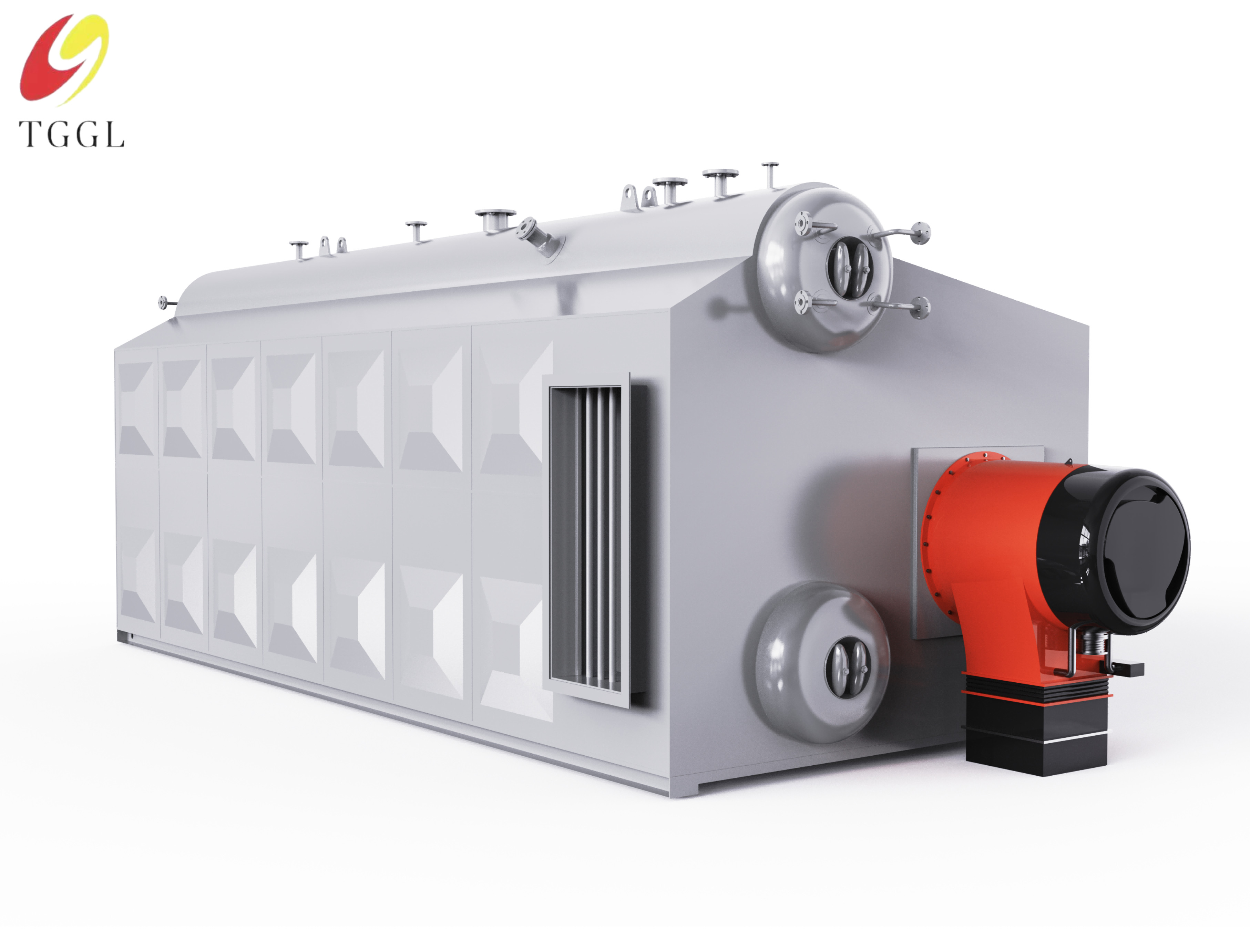

Product display:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
