EAC 0.1-2.5mpa Concrete Autoclave Industrial 380V

  • 1
  • 2

Brand Name : TAIGUO

Model Number : DN1500

Certification : SGS EAC CE

Place of Origin : Zhoukou

MOQ : 1

Price : USD6000-9800 Set

Payment Terms : L/C, D/A, D/P

Supply Ability : 10set

Delivery Time : 20-25 days

Packaging Details : Whole box packaging

Capacity : Customized

Certificate : ISO/CE/SGS

Control System : PLC

Frequency : 50/60Hz

Material : Stainless Steel

Working temperature : 195-202 degree centigrade

Pressure Range : 0.1-2.5MPa

Safety Devices : Pressure Gauge/Safety Valve/Thermometer

Voltage : 220V/380V/415V/440V

Warranty : 1 Year

Working pressure : 1.3-1.5 MPa

Mode of opening : manual or automatic

Working medium : Saturation steam

Contact Now

areated autoclaved aac block machine production line high quality

The high -pressure kettle is a large pressure vessel equipment, which is used to maintain and steam and steam the lime sand bricks, flies bricks, inflatable concrete blocks, new light wall materials and concrete piles and other building products. Products are used in silicate buildings, and it is also used in chemical industry, medicine, rubber, gypsum, glass, heat insulation materials, textiles, war industries and other fields.

EAC 0.1-2.5mpa Concrete Autoclave Industrial 380V

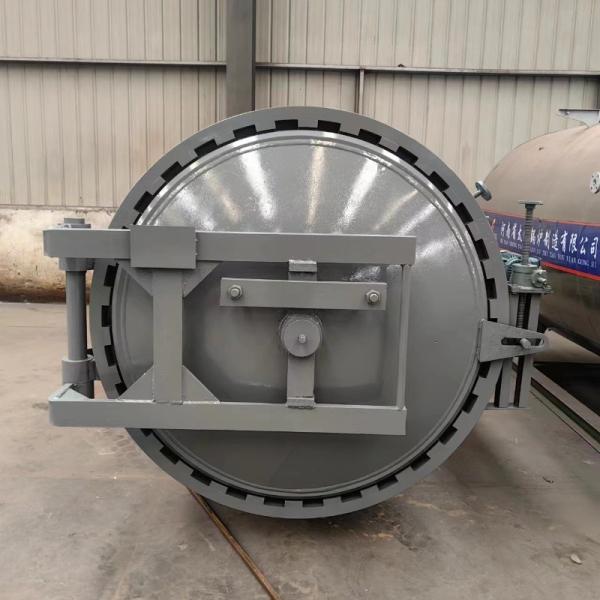

Autoclave doors

1. Autoclave door seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.

2. Autoclave body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the
end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.

Autoclave Model Specifictation Details
Name Unit Specification & Parameter
Diameter Φ mm 1650 2000 2050 2550 2680
Effective length mm 25500-27500 31000-36000 2650 31000-39000 31000-39000
Working pressure MPa 1.3-1.4 1.3-1.4 1.3-1.4 1.3-1.4 1.3-1.4
Design pressure MPa 1.5-1.6 1.5-1.6 1.5-1.6 1.5-1.6 1.5-1.6
Working temperature ℃ 195 195 201 201 201
Design temperature ℃ 198 198 204 204 204
Working medium saturated steam
Inner rails distance mm 600-800 600-800 600-800 600-800 600-800
Capacity m3 54.5-58.5 97-113 87 152-191 172-205
Total weight kg 22000-26000 38330-39500 35120 58500-70115 60500-79000
Dimension customized
All the LENGTH/DIAMETER/RAIL INNER DISTANCE/DOOR OPENING can be CUSTOMIZED, according to client'srequest.

EAC 0.1-2.5mpa Concrete Autoclave Industrial 380V

EAC 0.1-2.5mpa Concrete Autoclave Industrial 380V
