Product Description:

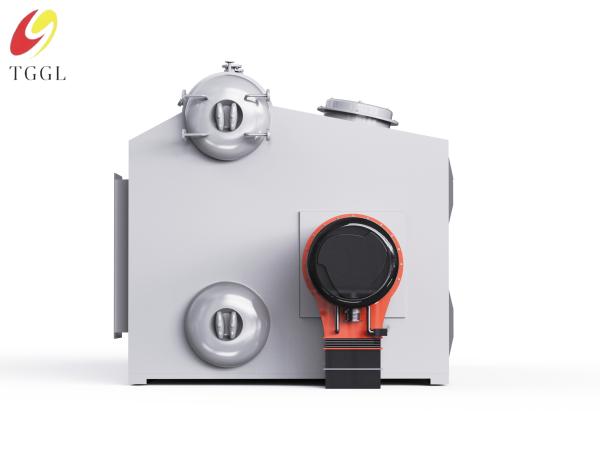

The structure of the SZS gas boiler is double -pot tube, vertical formula and D -type layout structure. On the right is the stove and the left flow beam on the left. Both ends are swollen. The stove is surrounded by membrane water walls. The film -shaped water -shaped water wall on the left side of the stove is completely sealed to completely seal the stove of the flow pipe beam.
Features:
1. High thermal resistance material is used as the insulation layer, which has good insulation performance.
2. The tail is equipped with an energy-saving device and a condenser, which can effectively control the exhaust temperature and improve the thermal efficiency of the boiler.
3. The entire boiler base is on a sturdy steel base, making it easy to install and transport.
4. The boiler has abundant heating surfaces and sufficient water space to ensure the stability of boiler parameters.
Technical Parameters:
| Parameter | Value |
| Pressure | 1.25Mpa, 1.6Mpa, 2.5Mpa |
| Type | Industrial Steam Boiler |
| Warranty | 1 Year |
| Applicable industry | Medicine, Chemical Industry, Light Industry, Textile, Building Materials, Culture, Food And Beverage Processing, Plastic Foam, Paper Making, Wood Processing, Clothing And Leather |
| Capacity | 4ton/hr To 20 Ton/hr |
| Burner | Oil, Gas, Dual Fuel |
| Fuel | Oil, Gas |
| Temperature | 194℃, 204℃, 226℃ |
| Control System | PLC |
| Structural form | Type D Double Drum Horizontal |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
