Product introduction;

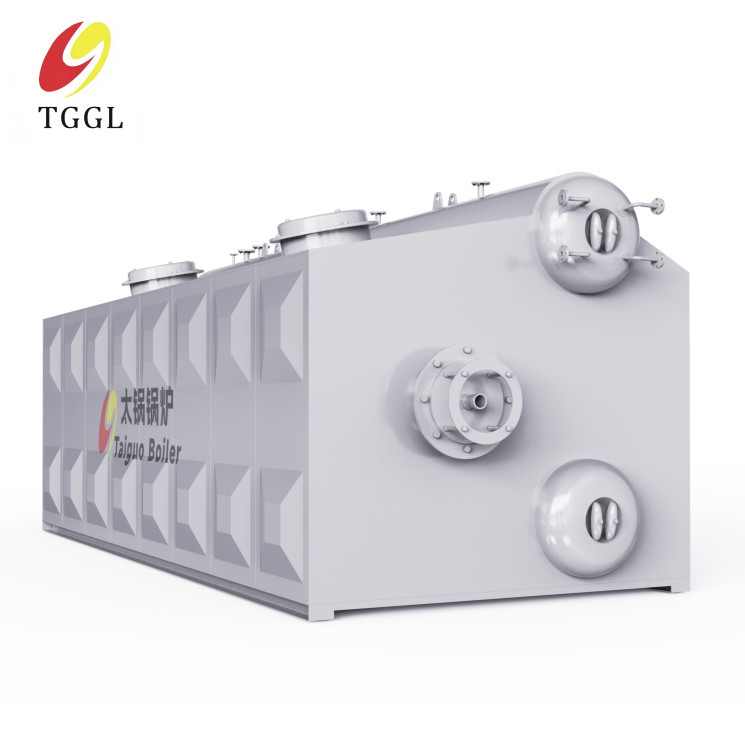

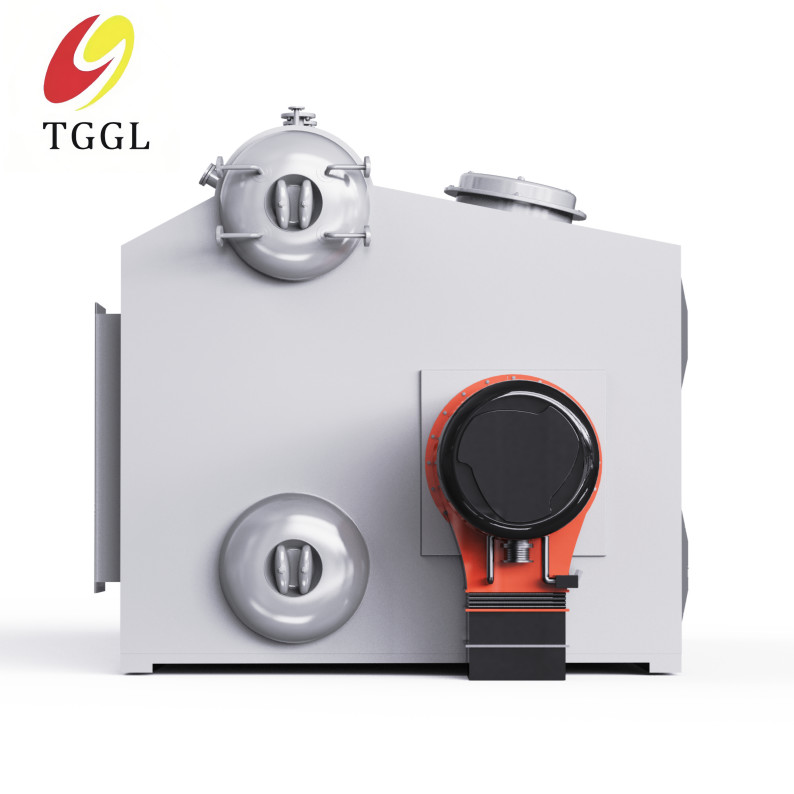

SZS series steam boiler This product is a typical boiler cylinder vertical "D" layout quick loading water tube boiler, boiler is a double boiler cylinder vertical gas boiler, boiler by furnace assembly, furnace outlet connecting flue, convection-tube bundle assembly, convection-tube bundle outlet connecting flue and energy saver assembly five parts, of which the boiler furnace assembly adopts full film water wall structure. It is mainly composed of the left and right film water cooling wall of the furnace and the upper and lower header, the front and back water cooling wall of the furnace and the upper and lower header. Convective tube bundle assembly is composed of upper and lower tube, convective tube bundle, left and right membrane type water cooling wall; The energy saver assembly is composed of an inlet and outlet header and an energy saver bundle.
peculiarity:
1. The outer packing of the boiler adopts the pressing protection plate, which is beautiful and beautiful in appearance.
2. The furnace of the boiler is provided with an inspection hole, which provides great convenience for use and maintenance. Explosion-proof doors are provided on the top of the furnace.
3. The boiler adopts quick loading structure, which can effectively shorten the installation period.
4. Using high thermal resistance material as insulation layer, good thermal insulation performance.
5. The tail is arranged with energy saver and condenser, which can effectively control the exhaust temperature and the boiler has high thermal efficiency.
6. The whole boiler base is on the strong steel base, easy to install and transport.
Technical parameter:
 Model ltem | SZS4 | SZS6 | SZS10 | SZS15 | SZ20 | SZ25 | SZS30 | SZS35 | SZS40 |
Rated evaporation (t/h) | 4 | 6 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
Rated working pressure (Mpa) | 1.25/ 1.6/2.5 |
Rate steam temperature (℃) | 194/204/226 |
Feed water temperature (℃) | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 |
heating area(m) | Body | 90.22 | 125.6 | 205.56 | 216.84 | 271.5 | 285.24 | 392.34 | 457.7 | 523.12 |
| Economizer | 35.8 | 63.4 | 132.2 | 283.6 | 411.2 | 504.8 | 471.2 | 549.7 | 628.2 |
| Condenser | 25.4 | 41.5 | 62.8 | 101.1 | 134.7 | 168.3 | 252.4 | 294.7 | 336.8 |
| Available Fuel | natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil |
Fuel consumption | Natural gas (Nm3/h) | 288 | 432 | 720 | 1080 | 1440 | 1800 | 2160 | 2525 | 2881 |
Light oil (kg/h) | 244 | 372 | 620 | 930 | 1240 | 1550 | 1860 | 2079 | 2373 |
| Thermal efficiency (%) | ＞98 |
| Weight biggest part of Transportation (t) | 25 | 32 | 40 | 45 | 50.6 | 60 | 68.2 | 77 | 85.5 |
| Overall dimension boiler assembied L×W×H( m ) | 5.76*4.1 0*3.70 | 7.84*3.4 0*3.40 | 8.00*43. 60*4.70 | 8.90*3.9 0*4.00 | 8.90*3.9 0*4.00 | 10.50*4. 12*4.15 | 10.50*4. 30*4.23 | 11.78*4. 40*4.35 | 12.82*4. 45*4.40 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
