Product Description:

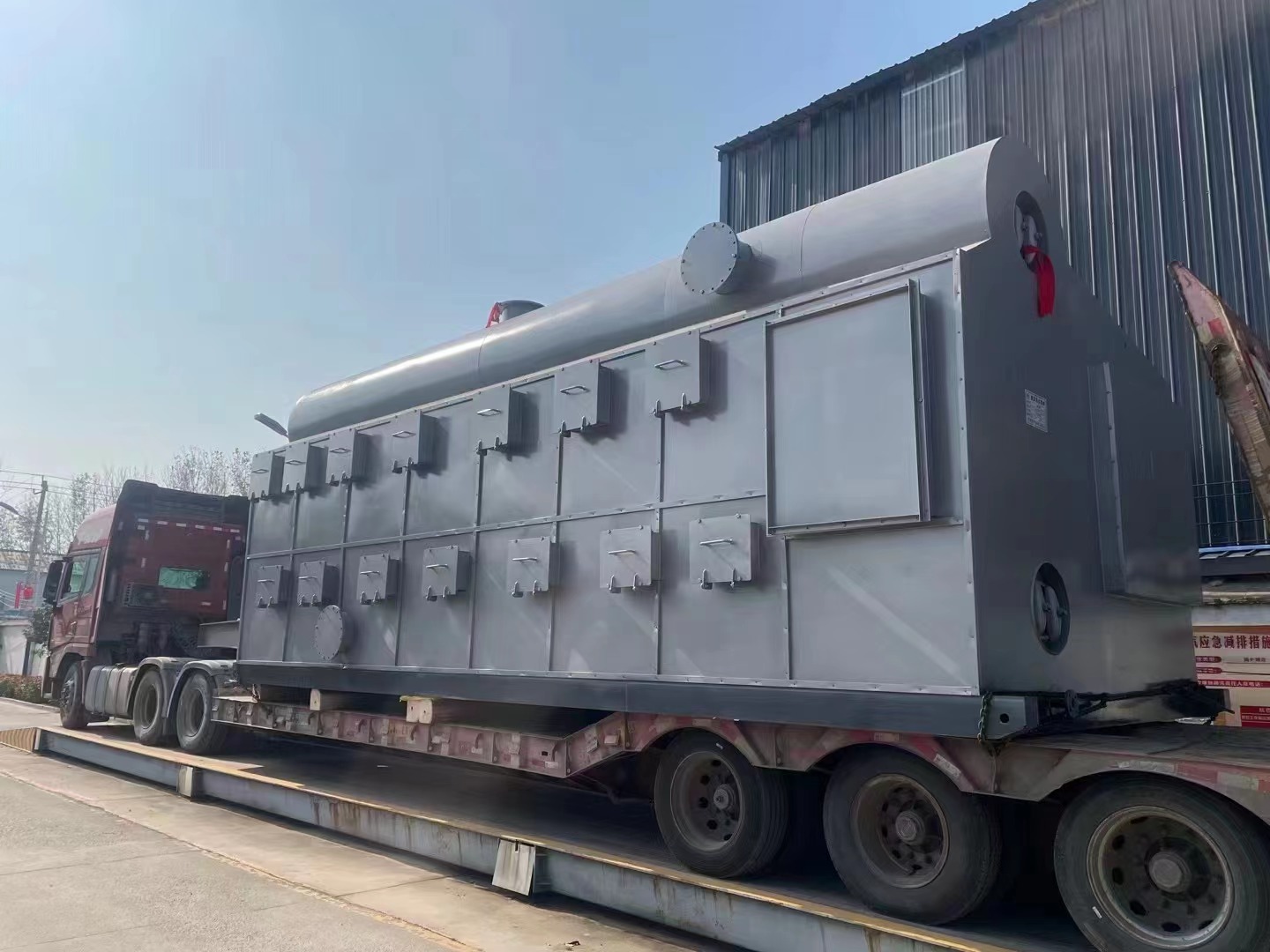

The SZS series fuel and gas boiler body adopts a "D" - shaped structure, with one side being the furnace and the other side being the convective heating surface. The membrane wall structure is used around the furnace body, the partition walls between the furnace and the convective zone, and the front and rear walls are equipped with advanced foreign burners. Energy saving devices and condensers are installed at the tail of the flue, which can achieve a smoke exhaust temperature as low as 60 degrees Celsius, a thermal efficiency of over 98%, and NOx below 30mg/Nm ³. This furnace type has the characteristics of energy conservation, environmental protection, safety and efficiency, easy operation and maintenance, and a fully automatic control system that can achieve unmanned operation.
Features:
1. D-type Double-Drum style with compact structure, less occupied area, good flame fullness which is better for low nitrogen combustion and low nitrogen emission.
2. With totally automatic burner and full set of safety protection device, thus automatic safety operation can be guaranteed.
3. Gas-tightness inner guard board with totally-enclosed welding structure which ensures a good sealing performance of the furnace wall.
4. The heat exchange surface area of the boiler and the space for water and steam are large enough to make sure the boiler parameters are stable.
5. The rear section of such boiler is equipped with flue gas condensing and recovery device which can effectively control exhaust gas temperature so that to improve boiler thermal efficiency.
Technical Parameters:
| Attribute | Value |
| Pressure | 2.5Mpa |
| Burner | Oil, Gas, Dual Fuel |
| Type | Industrial Steam Boiler |
| Structural form | Type D Double Drum Horizontal |
| Installation | Pry Mounting, Quick Mounting |
| Temperature | 194℃, 204℃, 226℃ |
| Efficiency | Up To 98% |
| Capacity | 10ton/hr To 60Ton/hr |
| Control System | PLC |
| Fuel | Oil, Gas |
Applications:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
