Product Description:

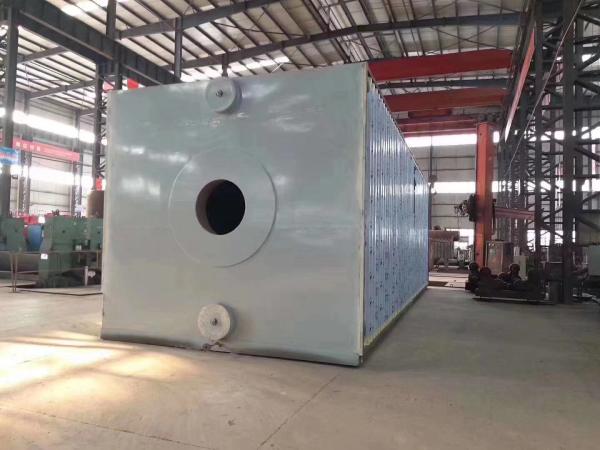

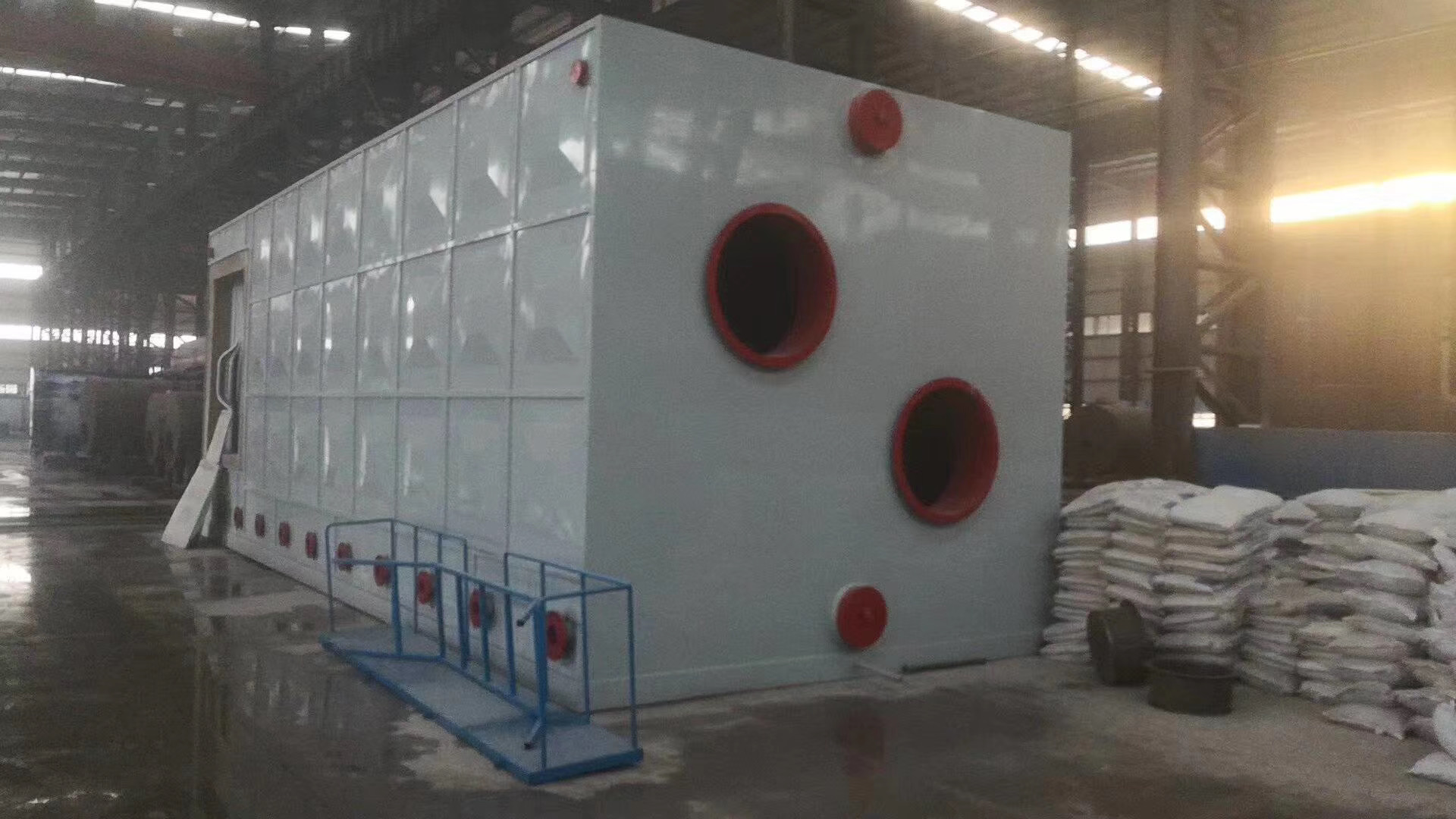

The product is a typical boiler tube vertical type "D" layout quick loading water tube boiler, micro-positive pressure operation. It is composed of an upper and lower pot tube, a film water cooling wall, superheater, convection tube bundle, energy saver and condenser, the burner is arranged in the front wall, the fuel is burned in the furnace, the flue gas successively washed the first convection tube bundle, superheater, second convection tube bundle, energy saver and condenser, discharged into the chimney.
Features:
- 1. The whole boiler base is on the strong steel base, easy to install and transport.
2. The boiler has a rich heating surface and a large enough water space to ensure the stability of the boiler parameters.
3. Automatic burner with high combustion efficiency and ignition program control and overpressure, flameout protection functions.
4. The water supply adopts continuous electric regulation, and has the function of high and low water level alarm and protection chain
Technical Parameters:
| Property | Content |
| Structural form | Type D Double Drum Horizontal |
| Installation | Pry Mounting, Quick Mounting |
| Efficiency | Up To 96% |
| Temperature | 194,204,226℃ |
| Warranty | 1 Year |
| Fuel | Oil, Gas, |
| Control System | PLC |
| Capacity | 4ton/hr To 20 Ton/hr |
| Burner | Oil, Gas, Dual Fuel |
| Applicable industry | Medicine, Chemical Industry, Light Industry, Textile, Building Materials, Culture, Food And Beverage Processing, Plastic Foam, Paper Making, Wood Processing, Clothing And Leather |
| Keywords | Industrial steam boiler, Water Boiler SteamHorizontal water tube boiler, Double drum steam boiler |
Applications:
Taiguo water tube steam boiler is a double-barrel horizontal boiler, the model is SZS. It is manufactured in Zhoukou, Henan Province, and has passed the CEEACSGSISO19001ISO24001ISO45001 standard certification. It has a minimum order quantity of 1 and is packaged for bulk delivery. The delivery time is the agreed time, the supply capacity is 100 sets. Thailand's water pipe steam boiler can use oil, gas or dual fuel as a burner, suitable for medicine, chemical, light industry, textile, building materials, culture, food and beverage processing, foam, paper, wood processing, clothing, leather and other industries. The efficiency is up to 96%, and the processing capacity can reach 4 tons/hour to 20 tons/hour.
Support and Services:
Our technical support and service for Water Tube Steam Boiler includes:
- 24/7 telephone support
- On-site maintenance
- Emergency repair services
- Spare parts replacement
- Regular system updates
- Performance maintenance
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
