Product Description:

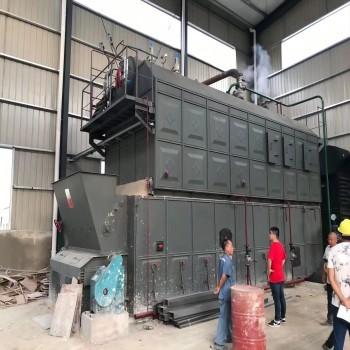

Coal-Fired Water Tube Boiler is an industrial steam boiler that uses burning biomass fuel to generate steam. It adopts the double barrel chain grate structure, and its control system is PLC programmable controller. The product model is SZL, and it can burn various fuels such as coal, biomass, wood blocks, wood chips, straw, palm shells, etc. It has the characteristics of high efficiency, energy saving, environmental protection and low operating cost. The pressure range of this product is 1.25,1.6,2.5Mpa, which can meet the needs of different customers. It is an ideal choice for industrial production.
Features:
1. Horizontal internal combustion three-pass design structure, large furnace space, large combustion space, complete fuel combustion, effective absorption of thermal expansion. The diameter of the drum is large, and the radiation heating surface is large, which ensures the high thermal efficiency of the boiler.
2. The furnace wall adopts the new process of heat-resistant firebrick and heat-resistant concrete cast and rammed as a whole, with good sealing, no air leakage and little heat loss.
3. The boiler is equipped with automatic chain grate to reduce labor cost. The gap of chain grate is small and the coal leakage rate is low.
4. Configure energy-saving device (economizer, air preheater), make full use of boiler flue gas heat, reduce boiler exhaust temperature, improve boiler thermal efficiency.
Technical Parameters:
| Property | Value |
| Steam Temperature | 194℃ ~ 204℃ |
| Design Efficiency | 82% |
| Fuel Feeding Method | Chain Grate Stoker |
| Capacity | 2-20t/h |
| Type | Coal Fired Water Tube Boiler |
| Product structure form | Horizontal Double Barrel Chain Grate |
| Pressure | 1.25Mpa, 1.6Mpa, 2.5Mpa |
| Installation type | Pry mounting, Quick mounting |
| Auxiliary System | Instrument valve, Electric control cabinet, Branch cylinder, Electric control cabinet, Water pump, Energy saver, Etc |
| Fuel | Coal, Biomass, Wood blocks, Wood chips, Straw, Palm shells, Etc |
| Boiler type | SZL |
Applications:
Thailand SZL series coal-fired water tube boiler is a well-known enterprise integrating industrial steam boiler, chain grate steam boiler, chain biomass boiler and water tube steam boiler functions. With CEEACSGSISO19001ISO24001ISO45001 certification, the SZL series has explosion-proof door safety control and PLC control system. The SZL series has a design efficiency of 82% and a steam temperature range of 194204226℃. Applicable industries are chemical industry, light industry, paper making, rubber processing, building materials, medicine and other industries
Support and Services:
Coal Fired Water Tube Boiler Technical Support and Service
At ZG Boiler, we take pride in providing our customers with superior technical support and service for our Coal Fired Water Tube Boilers. Our team of professionals is available to answer any questions you may have and provide you with the best solutions for your needs. We can provide you with 24/7 service and offer our expertise in boiler maintenance and repair, as well as parts and accessories.
In addition, we offer comprehensive training courses for our customers so that they can understand and operate their boiler safely and efficiently. We also have a wide range of spare parts available for your boiler, ensuring that you always have what you need on hand. Our team of engineers is also available to provide on-site assistance and consultations to ensure that your boiler is running smoothly.
Boiler, we strive to provide our customers with the highest quality of service and products. If you have any questions or need any assistance, please don't hesitate to contact us.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
