SZL Chain Grate Steam Boiler with 194-204°C Steam Temperature 1.25/1.6/2.5Mpa Pressure
Product Description:

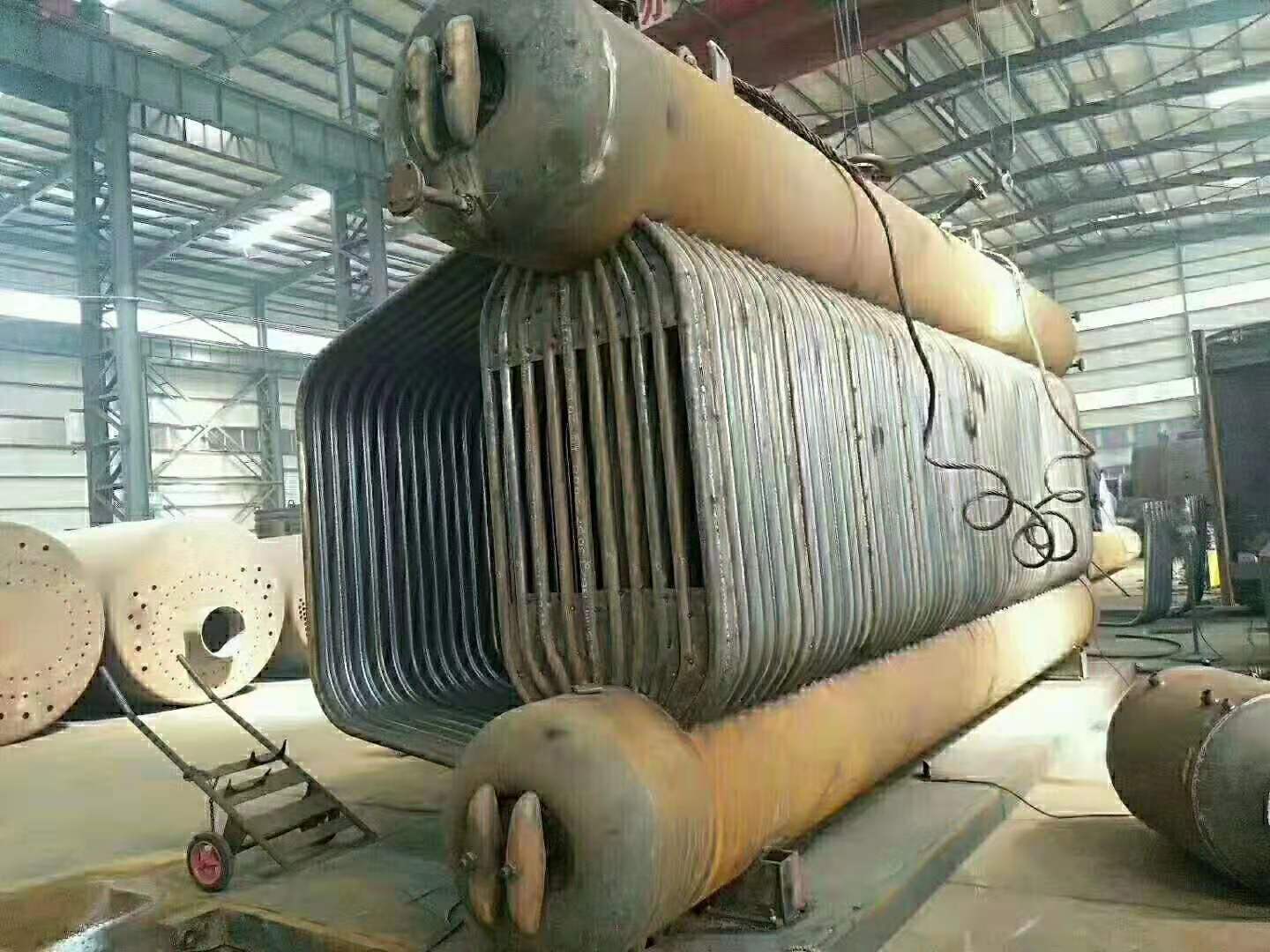

The coal fired water tube boiler is a double drum steam boiler equipped with a grate for fuel supply. It is designed for industrial use and can produce steam at temperatures of 194°C to 204°C and pressures of 1.25Mpa, 1.6Mpa or 2.5Mpa. The industrial steam boiler adopts the form of horizontal double-barrel grate, which is both energy-saving and safe. It is equipped with a PLC(Programmable logic Controller) that provides automatic regulation and control of boiler operation.
This coal-fired water tube boiler is an efficient and reliable solution for industrial steam generation. It is capable of producing large amounts of steam and can be relied upon to operate safely and cost-effectively. Its double barrel construction, chain grate and PLC control system make it ideal for industrial applications.
Features:
1. Both sides of the furnace and combustion chamber adopt membrane water wall structure.
Original design of membrane water wall structure. Membrane water wall structure for power station boiler is applied to packaged boiler. Its advantages are large heat transfer coefficient, good heat transfer effect, small heat loss, good air tightness, no deformation of the furnace wall, no ash leakage.
2. The water wall tubes at the front and back of the furnace extend downward to the upper part of the grate, forming a front and back arch.
The structure is increased on the basis of the original mature bulk boiler, and the furnace radiation heating surface is added on the basis of the other heating area is unchanged, and the overload capacity is stronger. The water-cooled wall pipe is used as the skeleton for the front and back arches, and the high aluminum cement casting avoids the defects of cracking and arch collapse caused by long-term high-temperature barbecue of the triple arch bricks of the original boiler, thus prolonging the service life of the arch.
Technical Parameters:
| Parameters | Details |
| Product structure form | Horizontal Double Barrel Chain Grate |
| Pressure | 1.25Mpa, 1.6Mpa, 2.5Mpa |
| Type | Coal Fired Water Tube Boiler |
| Product model | SZL |
| Safety control | Explosion Door |
| Fuel | Coal, Biomass, Wood Blocks, Wood Chips, Straw, Palm Shells, Etc |
| Steam Temperature | 194204226℃ |
| Fuel Feeding Method | Chain Grate Stoker |
| capacity | 2-20t/h |
| Auxiliary System | Instrument Valve, Electric Control Cabinet, Branch Cylinder, Electric Control Cabinet, Water Pump, Energy Saver, Etc |
Applications:
SZL series coal-fired biomass boiler is a double drum steam boiler, which has passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certification. It is perfect for industrial applications with pressure ratings up to 1.25, 1.6, 2.5Mpa. The double-barrel steam boiler uses coal, biomass, wood block, wood chips, straw and palm shell as fuel, and has a double-barrel grate designed horizontally. It is equipped with a PLC control system that gives you maximum control over the operation of the boiler. SZL series coal-fired biomass boilers are the ideal solution to meet any industrial steam needs.
Support and Services:
Technical support and services for Coal Fired Water Tube Boiler include:
- Comprehensive start-up support and training.
- On-site trouble shooting and maintenance.
- Long-term parts and service support.
- Remote diagnostics and monitoring.
- 24/7 technical support.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
