Product introduction:

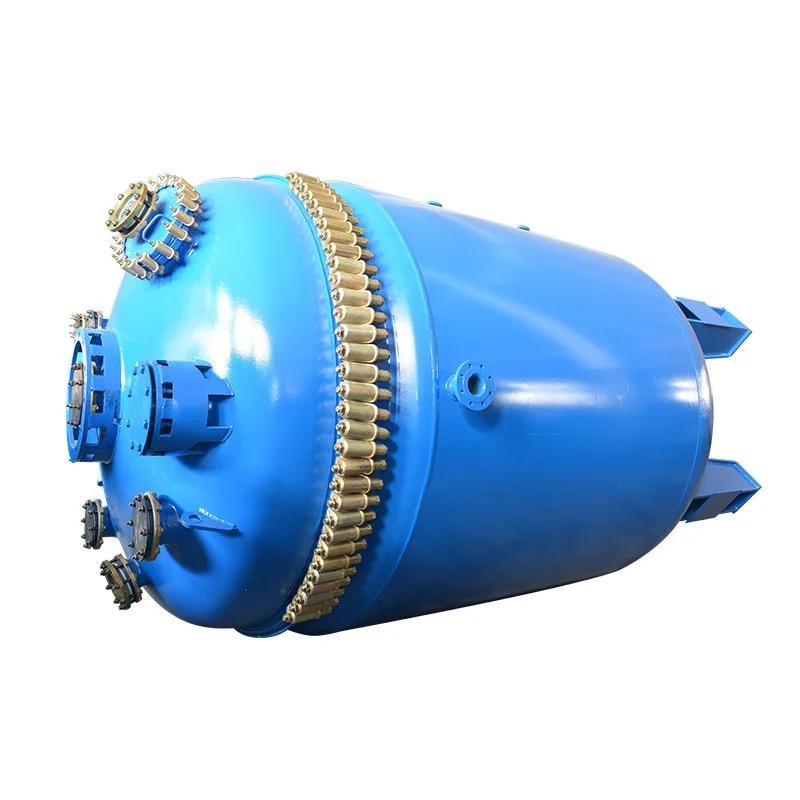

Glass lined reactor is the glass containing high silica, lined on the inner surface of a steel container, burned at high temperature and firmly close to the metal surface to become a composite product. Therefore, it is an excellent corrosion resistant equipment. Glass lined reaction tanks are often used in petroleum, chemical, rubber, dye and other industries.
Product advantage:
(1) Corrosion resistance
It can withstand most inorganic acids, organic acids, organic solvents and weak alkali and other media, especially in hydrochloric acid, nitric acid, aqua regia and other media with excellent corrosion resistance.
(2) insulation is suitable for occasions where the medium is easy to produce static electricity in the production process.
(3) Non-viscous smooth glass facing the medium is non-sticky and easy to clean.
(4) Fresh-keeping glass layer has excellent fresh-keeping performance for the medium.
(5) The isolating glass layer isolates the medium from the metal, making it difficult for iron ions to dissolve into the medium.
Technical parameter:
| Model | Tk-50 | Tk-100 | Tk-200 | Tk-300 | Tk-500 | TK-1000 | Tk-1500 | Tk-2000 | Tk-3000 | T-5000 | Tk-6300 |
| Nominal Capacity(L) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 6300 |
| Actual Capacity(L) | 71 | 128 | 247 | 369 | 588 | 1250 | 1720 | 2160 | 3380 | 5224 | 6735 |
| Heat Exchange Area(㎡) | 0.34 | 0.66 | 1.26 | 1.75 | 2.64 | 4.54 | 5.34 | 7.02 | 8.61 | 13 | 16.4 |
| Dimension (mm) | D1 | 500 | 600 | 700 | 800 | 900 | 1200 | 1300 | 1300 | 1600 | 1750 | 1750 |
| D2 | 600 | 700 | 800 | 900 | 1000 | 1300 | 1450 | 1450 | 1750 | 1900 | 1900 |
| D3 | 706 | 816 | 918 | 1028 | 1130 | 1468 | 1622 | 1622 | 1964 | 2152 | 2152 |
| H1 | 200 | 235 | 275 | 310 | 335 | 410 | 435 | 435 | 510 | 547 | 547 |
| H2 | 400 | 500 | 700 | 800 | 1000 | 1200 | 1400 | 1740 | 1735 | 2335 | 2875 |
| H3 | 300 | 320 | 350 | 350 | 400 | 500 | 500 | 500 | 600 | 670 | 700 |
| H4 | 945 | 945 | 953 | 1154 | 1154 | 1276 | 1276 | 1276 | 1326 | 1326 | 1457 |
| H | 1800 | 1930 | 2180 | 2520 | 2750 | 3100 | 3310 | 3700 | 3800 | 4480 | 5160 |
| Transmission type | Type | BLD-1 | BLD-1 | BLD-1 | BLD-2 | BLD-2 | BLD-3 | BLD-3 | BLD-3 | BLD-3 | BLD-3 | BLD-4 |
| Speed of Agitators r/min | Anchor, Frame Type | 63/85 | 63/85 | 63/85 | 63/85 | 63/85 | 63/85 | 36/85 | 63/85 | 63/85 | 63/85 | 63/85 |
| Turbine Type | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Glass-lined nozzle | a | 80/vision | 80/vision | 125 | 125 | 150 | 300x400 | 300x400 | 300x400 | 300x400 | 300x400 | 300x400 |
| b | 70 | 70 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 125 | 125 |
| C | 70 | 70 | 70 | 70 | 70 | 100 | 100 | 100 | 100 | 125 | 125 |
| d | - | - | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 125 | 125 |
| e | 70/lamp | 70／lamp | 70／lamp | 70／lamp | 80／lamp | 100／lamp | 125／lamp | 125／lamp | 125／lamp | 125／lamp | 125／lamp |
| f | - | - | 70 | 70 | 125 | 125 | 125 | 125 | 125 | 150 | 150 |
| g | 70 | 70 | - | - | - | 100 | 100 | 100 | 100 | 125 | 125 |
| h | - | - | 70／vision | 70／vision | 80／vision | 100／vision | 125 | 125 | 125 | 150 | 150 |
| Outlet | 70 | 70 | 80 | 80 | 80 | 100 | 100 | 100 | 125 | 125 | 125 |
| Jacket nozzle | inlet (outlet) | 3-20 | 3-20 | 3-25 | 3-25 | 3-32 | 3-32 | 3-40 | 3-40 | 3-50 | 3-65 | 3-65 |
| Agitator Nozzle | - | - | - | - | - | - | 2-50 | 2-50 | 2-65 | 3-65 | 3-65 |
| Reference Weight(Kg) | 350 | 410 | 640 | 920 | 1150 | 1820 | 2350 | 2600 | 3550 | 4670 | 5450 |
