Product introduction:

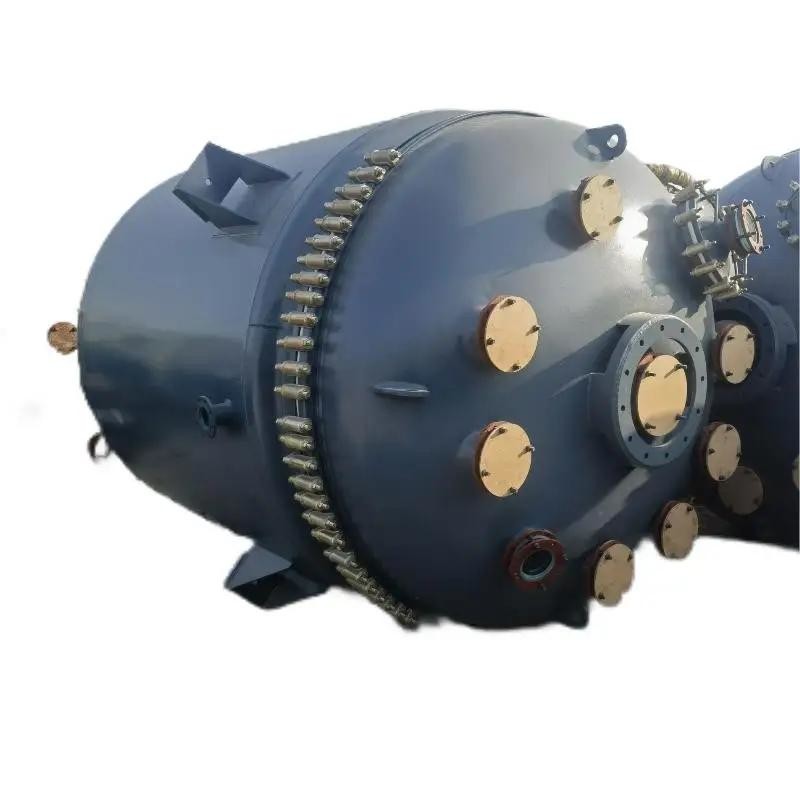

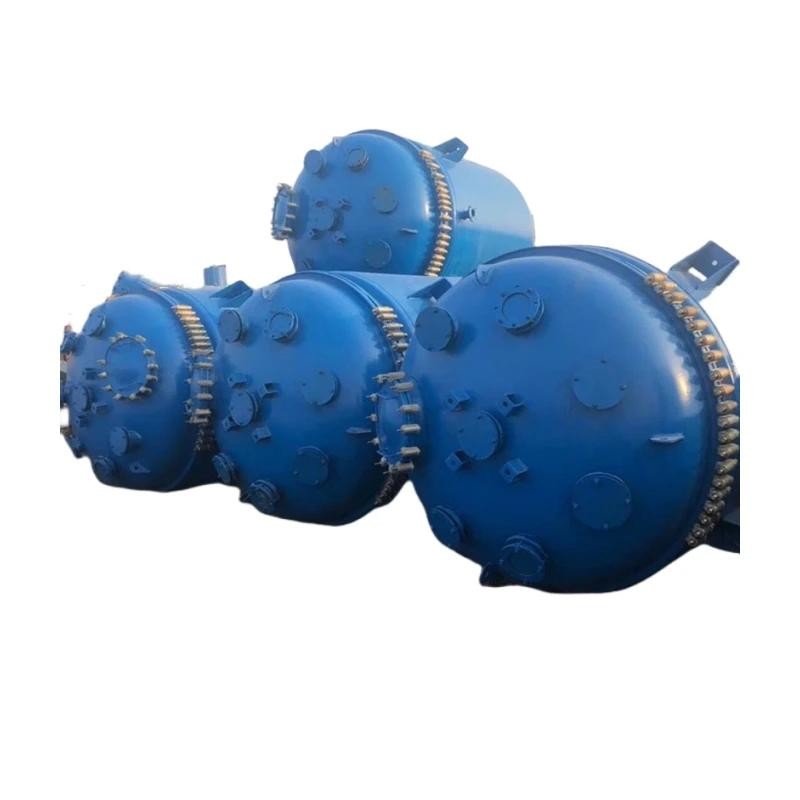

A glass lined reactor is a physical or chemical reaction vessel in which a high silica containing enamel glass glaze is placed on the inner surface of a steel reaction vessel and then firmly adhered to the metal surface by high-temperature combustion. The glass-lined reactor has the advantages of glass stability and metal vessel strength, and is an excellent corrosion resistant chemical equipment. Through the structure design and parameter configuration of the reactor, the heating, evaporation, cooling and low speed mixing functions required by the process are realized.
Glass-lined reactors are currently widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical and food industries
Product advantage:
(1) Corrosion resistance
It can withstand most inorganic acids, organic acids, organic solvents and weak alkali and other media, especially in hydrochloric acid, nitric acid, aqua regia and other media with excellent corrosion resistance.
(2) insulation is suitable for occasions where the medium is easy to produce static electricity in the production process.
(3) Non-viscous smooth glass facing the medium is non-sticky and easy to clean.
(4) Fresh-keeping glass layer has excellent fresh-keeping performance for the medium.
(5) The isolating glass layer isolates the medium from the metal, making it difficult for iron ions to dissolve into the medium.
Technical parameter:
| Model | TF3000 | TF5000 | TF6300 | TF8000 | TF10000 | TF12500 | TF16000 | TTF20000 | TF30000 |
| Nominal Capacity(L) | 3000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 30000 |
| Actual Capacity(L) | 3100 | 5050 | 6866 | 9060 | 11670 | 13651 | 17446 | 21790 | 33500 |
| HeatExchange Area(㎡) | 8.61 | 13.16 | 16.10 | 18.38 | 21.35 | 24.89 | 29.48 | 34.04 | 45.36 |

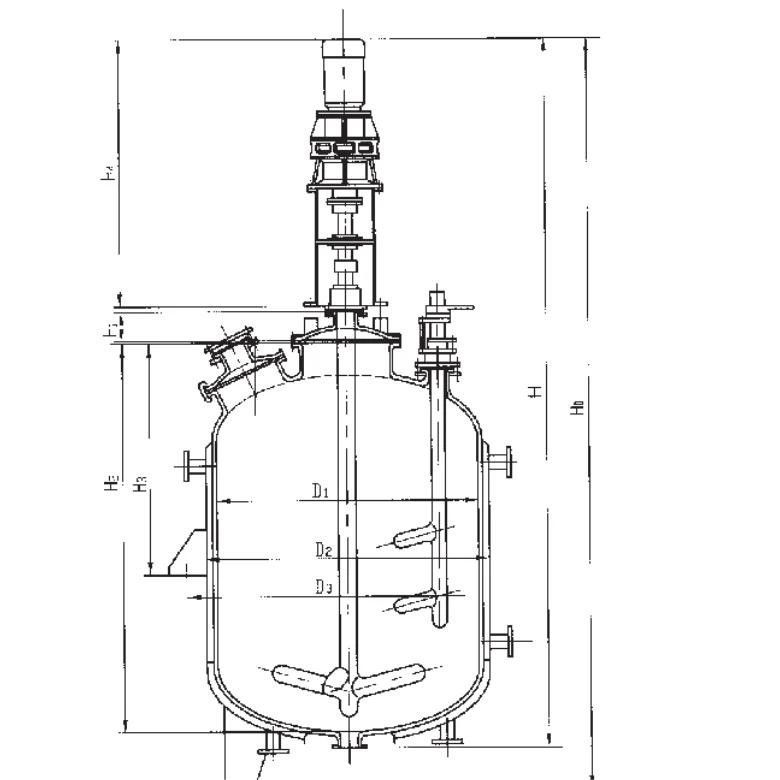

| Dimension (mm) | D1 | 1600 | 1750 | 1750 | 2000 | 2200 | 2400 | 2400 | 2600 | 3000 |
| D2 | 1750 | 1900 | 1900 | 2200 | 2400 | 2400 | 2600 | 2800 | 3200 |
| D3 | 1964 | 2152 | 2152 | 2507 | 2708 | 2708 | 2912 | - | - |
| D4 | - | - | - | - | - | - | - | 2000 | 2300 |
| H1 | 195 | 195 | 195 | 210 | 210 | 210 | 210 | 210 | 210 |
| H2 | 2215 | 2860 | 3244 | 3310 | 3533 | 4053 | 4346 | 4641 | 5340 |
| H3 | 1050 | 1200 | 1200 | 1200 | 1300 | 1300 | 1400 | - | - |
| H4 | 1326 | 1326 | 1475 | 1542 | 1880 | 1880 | 1880 | 1880 | 2200 |
| H | 3850 | 4500 | 5020 | 5220 | 5780 | 6300 | 6590 | 6890 | 7900 |
| H0 | - | - | - | - | - | - | - | 7326 | 8500 |
| Transmission model | BLD-3 | BLD-3 | BLD-4 | BLD-4 | BLD-5 | BLD-5 | BLD-6 | BLD-6 | BLD-7 |
| stirring speed r/min | padde Type | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Turbine Type | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Glass-lined nozzle | a | 300x400 | 300x400 | 300x400 | 300x400 | 300x400 | 300x400 | 300x400 | 450 | 450 |
| q | 125 | 125 | 125 | 200 | 200 | 200 | 200 | 250 | 250 |
| C | 100 | 125 | 125 | 200 | 200 | 200 | 200 | 200 | 200 |
| d | 100 | 125 | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| e | 125/light | 125/light | 125/light | 125/light | 125/light | 125/light | 125/light | 125/light | 125/light |
| f | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| 9 | 100 | 125 | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| h | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| K | - | - | - | - | 200 | 200 | 200 | 200 | 200 |
| M | - | - | - | 125 | 125 | 125 | 125 | 125 | 125 |
| Outlet | 125 | 125 | 125 | 125 | 150 | 150 | 150 | 150 | 150 |
| Jacket nozzle | inlet (outlet) | 3-65 | 3-65 | 3-65 | 3-65 | 4-80 | 4-80 | 4-100 | 4-100 | 4-100 |
| Agtator Nozzle | 2-65 | 3-65 | 3-65 | 3-65 | 3-80 | 3-80 | 3-100 | 3-100 | 3-100 |
| Reterence Weight(Kg) | 3500 | 4950 | 5400 | 7600 | 8800 | 10300 | 13800 | 14700 | 22200 |
