Product introduction:

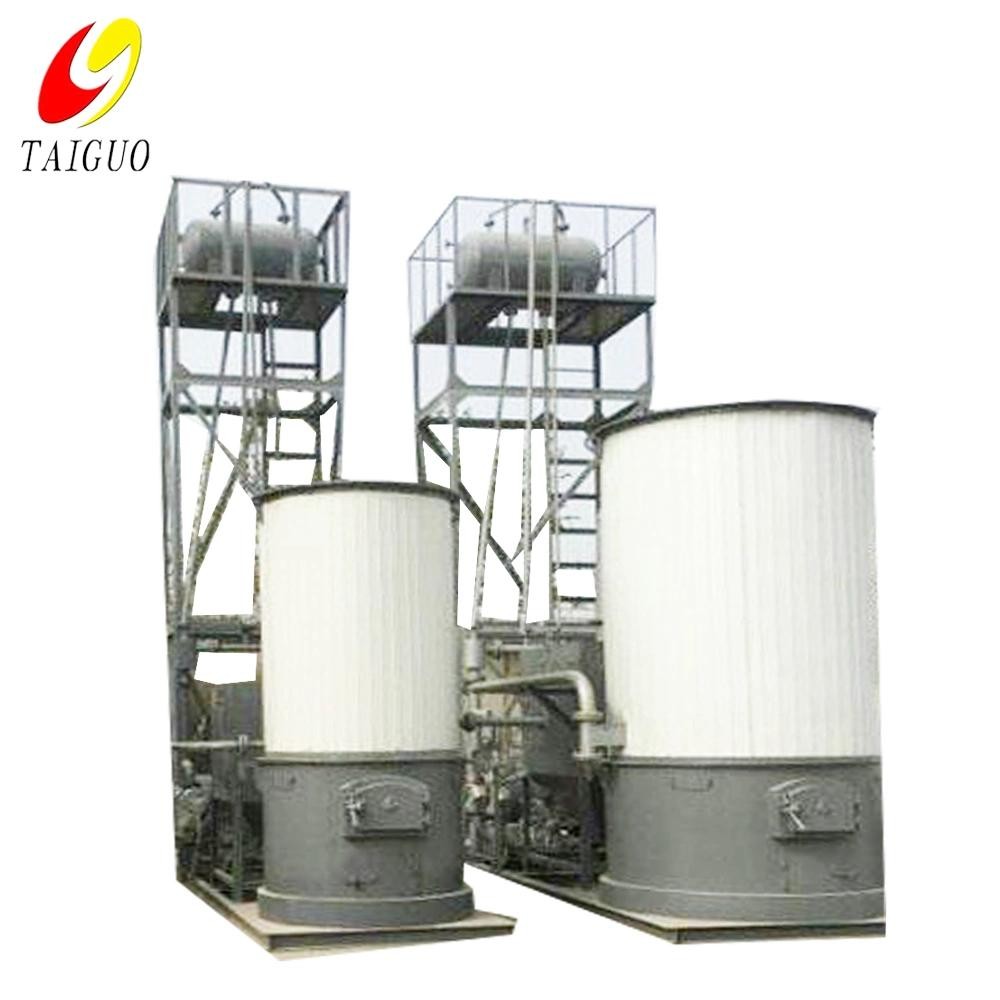

YGL type biomass heat transfer oil furnace, which is a kind of forced circulation vertical biomass boiler, which is based on biomass particles as fuel and heat transfer oil as medium, and uses circulation oil pump to force heat transfer oil for wave phase circulation, transfers heat energy to the thermal equipment and then returns to the heating furnace for reheating. It adopts three-return coil design, the heating surface is fully expanded and fully absorbed, and the low pressure and high temperature heating is realized. It can also increase the energy saver, make the boiler more energy efficient, can be more efficient, energy saving service in all walks of life.
Product advantage:
1, different fuel adaptability
The combustion equipment and the upper furnace body are designed separately, and the furnace structure can be designed separately according to the different properties of solid fuel.
2. High degree of grate automation
The grate of this structure is a fully automatic chain grate.
3, large diameter combustion chamber
The boiler combustion chamber is composed of vertical large diameter disc tube, coil structure has series or parallel, fuel combustion space is enough, combustion is complete, high thermal efficiency.
4, the best coil design
The spiral coil inside and outside the furnace body is made of multi-head and small-diameter steel pipe. The coil has good thermal expansion performance, low stress, safety and reliability.
5. Optimal process design
Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the operation is safe and stable.
6, sufficient output
The heating surface layout is reasonable, the area is large, the heat transfer effect is good, the efficiency is high, and the output is stable and sufficient.
Technical parameter:
|  Name
Model | YGL- 120MA | YGL-240MA | YGL-350MA | YGL-500MA | YGL-700MA | YGL- 1000MA | YGL- 1200MA | YGL- 1400MA |
| Rated power(kw) | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 |
| Thermal Efficiency (%) | 75 |
| Design Pressure (Mpa) | 1.1 |
| Rated Working Pressure (Mpa) | 0.8 |
| Highest Working Temperature (C) | <350 |
| Furnace oil Volum(m3/h) | 0.1 | 0.15 | 0.3 | 0.38 | 0.52 | 0.7 | 0.85 | 1.02 |
| Circulation oin volume (m3/h) | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 100 |
| Pipe connection diameter (DN) | 40 | 65 | 80 | 80 | 100 | 125 | 125 | 125 |
| Overall Size ( mm ) | 1220* 1140* 2550 | 1705* 1510* 3095 | 1873* 1683* 3358 | 2076* 1900* 3660 | 2276* 2100* 3840 | 2900* 2500* 4785 | 2900* 2500* 5133 | 3000* 2900* 5430 |
| Reference Weihght (t) | 2.2 | 2.7 | 3.4 | 3.9 | 4.8 | 7.4 | 8.0 | 10.2 |
