Product Description:
Thermal Oil Boiler is a kind of special industrial furnace designed for heating the thermal oil to a certain temperature. It is a high-efficiency equipment which can save energy and reduce emissions. With a design pressure of 1.1MPa and after-sales service provided, the Thermal Oil Boiler is available in customized capacity. It is designed with automatic control mode and can be packaged or site-assembled according to customer's needs. It is widely used in many industries such as chemical industry, food industry, construction industry and so on. The thermal oil boiler is an effective choice for thermal hot oil boiler, thermal hot oil furnace boiler oil fired applications.
Features:
1.Optimum three-coil design
The boiler with large heating area has high efficiency
The third pipe protects the boiler shell from deformation
2.External oil collection box
Protect the high temperature flue gas in the heating chimney
Easy maintenance
3.Automatic control measures are perfect
Precise oil temperature control, temperature, pressure and smoke temperature multiple control protection
Safe and reliable operation
Technical Parameters:
| Parameter | Details |
| Structure | Horizontal |
| Installation | Packaged/Site-assembled |
| Type | Thermal Oil Boiler |
| Warranty | 1 Year |
| Design Temperature | 350℃-450℃ |
| Thermal Efficiency | 96% |
| Fuel | Oil/Gas |
| Capacity | Customized |
| Design Pressure | 1.1MPa |
| Control Mode | Automatic |
Applications:

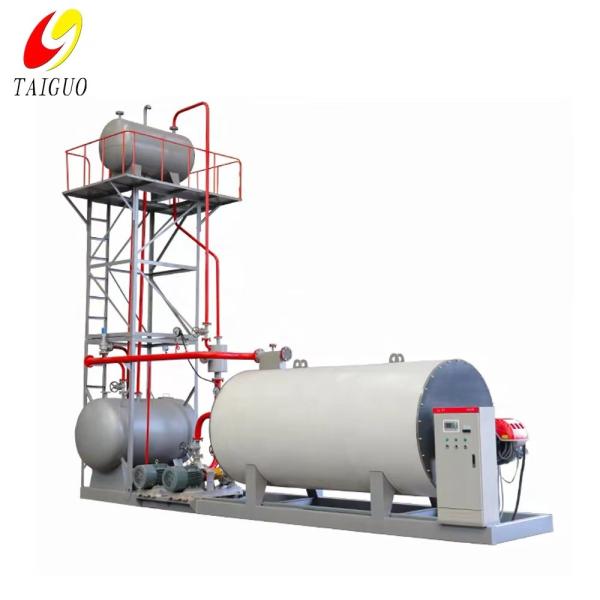

TAIGUO YYQW Thermal Oil Boiler Heater – EAC CE SGS Certified
Application scopes:Chemical, oil, petrochemical, textile, printing, plastics,rubber, fiber, carbon, construction, cement, asphalt,metal, painting, wood processing, paper printing, nuclear industry, etc.
Packing and Shipping:
Packaging and Shipping
Thermal Oil Boiler is packaged in a wooden box and then placed in a wooden frame for additional protection. The package is marked with the product name, the serial number, the manufacturer, and the customer’s name. The package is then sealed for extra security.
The Thermal Oil Boiler is shipped via air, sea, or land, depending on the customer's needs. If the product is shipped via air, the package will be handled by a crew certified to handle hazardous materials. The package also will be labeled with the product name, serial number, and customer's name.
The Thermal Oil Boiler is shipped with all necessary documentation, including a copy of the manufacturer's warranty.
FAQ:
1. How to buy a good boiler?
a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.
2. What is your main product?
Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.
3. Why choose us?
a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate
