Product introduction:
Organic heat carrier furnace is a new type of special boiler, also known as heat conduction oil furnace, with low pressure, high temperature working characteristics, even under normal pressure, its heating temperature can reach 320℃ liquid phase or 400℃ vapor phase. Everything needs to be heated evenly and steadily. And do not allow direct flame heating process heating temperature between 150℃~380℃ in various production occasions can use organic heat carrier heating. It is based on coal, biomass, palm shell and other heat energy transmission to the thermal equipment, and then return to the heating furnace to reheat, not only has low pressure, high temperature, but also can high precision control of the working temperature, and no water treatment equipment, the system heat utilization rate is high, easy to operate and maintain, is a safe, efficient, energy-saving heating equipment.
Product advantage:
(1) Obtain low pressure and high temperature heat medium, easy adjustment, uniform heating, can meet the precise process temperature.
(2) liquid phase circulation heating, no condensing heat loss, heating system thermal efficiency is high.
(3) Water treatment equipment and systems can be simplified or omitted.
(4) The organic heat carrier furnace in the area requires a small protection distance and less explosion risk.
(5) Should consider the organic heat carrier heating and heat release and temperature rise and fall on the volume change, in the system should be compensated technical measures.
(6) Strictly control the content of air, water and other low volatiles in the organic heat carrier.
Technical parameter
 Name
Model | YLW- 3000MA | YLW- 3500MA | YLW- 4200MA | YLW- 4700MA | YLW- 6000MA | YLW- 7000MA | YLW- 10000MA | YLW- 12000MA |
Rated power(kw) | 3000 | 3500 | 4200 | 4700 | 6000 | 7000 | 10000 | 12000 |
Rated Working Pressure (Mpa) |
0.8 |
| Highest Working Temperature (C) | <350 |
| Fuel | Coal, Biomass pellet, jute, Palm kernel shell |
Furnace oil Volume(m3/h) | 2.4 | 2.6 | 2.8 | 3.0 | 4.8 | 7 | 9.5 | 12.8 |
Circulation oin volume (m3/h) |
160 |
200 |
250 |
250 |
350 |
460 |
540 |
600 |
Inlet and
Outlet pipe
Diameter(DN) | 150 | 200 | 200 | 200 | 250 | 250 | 300 | 350 |
| Overall Size ( mm ) | 6000* 2650* 3240 | 6400* 2770* 3470 | 6900* 2820* 3470 | 7680* 2985* 3715 | 7900* 3200* 3475 | 8400* 3300* 3475 | 9200* 3300* 3550 | 12600* 3820* 3630 |
Reference Weihght (t) | 30 | 35 | 40 | 44 | 48 | 50 | 70 | 142 |
Product Tags:
|
|

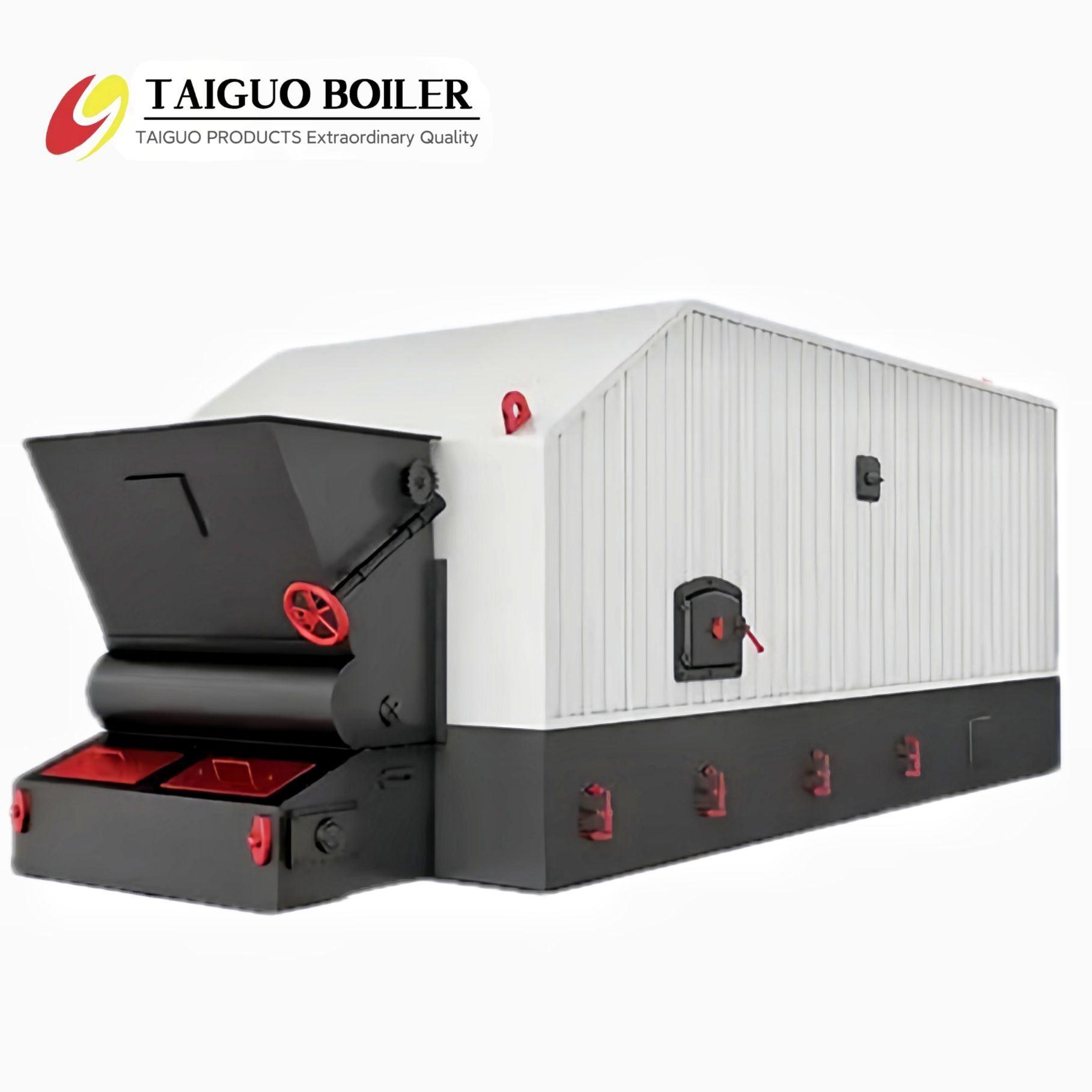

Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace Images
|
