Wholesale High Quality Steam Generator Price 2 Ton/H Boiler Oil Fired Steam Boiler For Sale

HENAN TAIGUO BOILER PRODUCTS CO.,LTD.
Contact Now

Wholesale High Quality Steam Generator Price 2 Ton/H Boiler Oil Fired Steam Boiler For Sale

  • 1
  • 2

Brand Name : TAIGUO

Model Number : WNS-6

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $9000.00

Payment Terms : L/C, T/T

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Product name : horizontal steam boiler

Fuel : Oil and gas

Quantity of steam : 100kg-10000kg

Usage : Industrial, Home, Vehicle, Power Station

Heating Efficiency : 92%

Media : Steam

Installation Mode : Skid Mounting

Rated Steam Temperature : 184/194/204

Heat Exchanger Material : Cast Iron/Stainless Steel

Country Of Origin : Zhoukou In Henan Province

Drum Placement : Horizontal Boiler

Boiler Type : Steam Boiler

Dimension : Models

Evaporation Capacity : 0.5t/h-30t/h

Efficiency Rating : 90%-95%

Design Pressure : 1-1.1Mpa

Condition : New

Heat Output : Up to 1,000,000 BTU/hr

Contact Now

WNS Series Horizontal Steam Boiler Full Range Of Equipment Can Be Customized

Product introduction:

Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 92%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.
With full waveform furnace, with good thermal stretchable; full pull side butt welding technology, reducing the furnace
temperature stress; tube and tube plate connected by welding form after the first expansion, eliminate corrosion problems, extend the life of the boiler; threaded pipe heat exchanger, to improve the heat transfer coefficient of the boiler.

Product advantage:

1, the safe precipitation time is enough
The low arrangement of the combustion chamber of the boiler, the determination of the water level conforms to the national regulations, and the water level fluctuation time requirements of the international general standards are strictly followed, and there is sufficient safe precipitation space to ensure the safe operation of the boiler.
2, multi-functional safety explosion-proof device
An explosion-proof device connected with the furnace is arranged on the back panel of the boiler to prevent the fuel from violent deexplosion in the furnace, release the high energy generated instantaneously, and can automatically reset, and has the function of fire viewing mirror and inspection channel, using the adjustment of the combustion flame in operation, the furnace inspection and maintenance is convenient.
3, easy maintenance in the pot
The top of the boiler is provided with a manhole, and the middle and lower parts of the front and back ends of the boiler are provided with a unique hand hole device, which is convenient for the inspection and cleaning of the device in the pot and the bottom of the boiler.

Technical parameter:

Model Rated Rated Rated Thermal Fuel Consumption

Capacity

(t/h)

Pressure

(Mpa)

Temperature

(C)

Efficiency

(%)

Light oil

(Kg/h)

Natural gas

(Nm³/h)

WNS1 1 0.7/1.0/1.25 170/184/194 >96 45-100 18-100
WNS1.5 1.5 >96.2 101.73 123.47
WNS2 2 1.0/1.25/1.6 184/194/204 >96.2 137.09 165.97
WNS3 3 >96 205.75 249.6
WNS4 4 >96 272.3 329.5
WNS5 5 >96 134-402 80-500
WNS6 6 >96 134-402 80-500
WNS8 8 1.25/1.6/2.5 194/204/225 >96 523.4 631.5
WNS10 10 >96 212-890 150-1085
WNS12 12 >96 915.5 1090
WNS15 15 >96 931.5 1094.4
WNS20 20 >96 1380.33 1598.44
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

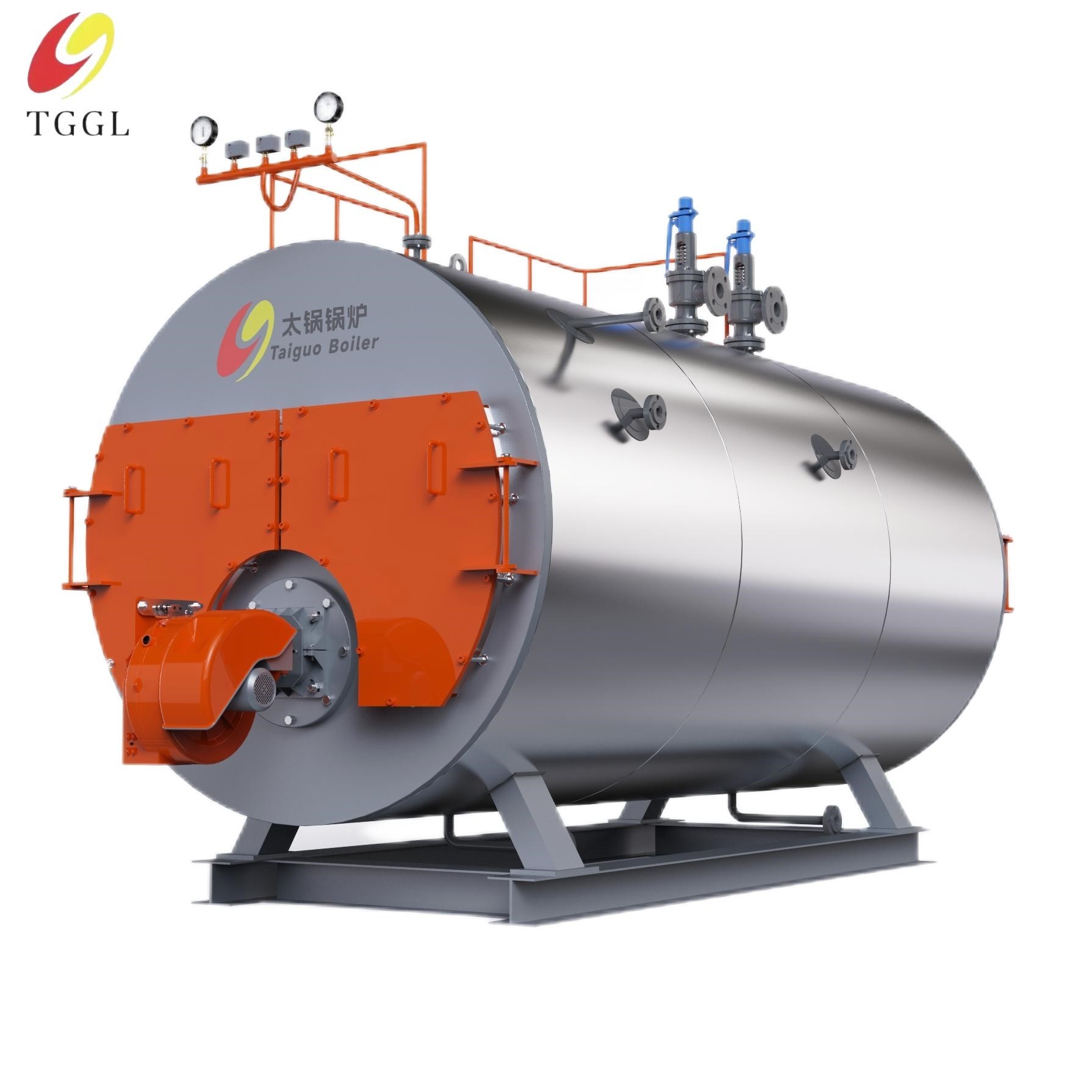

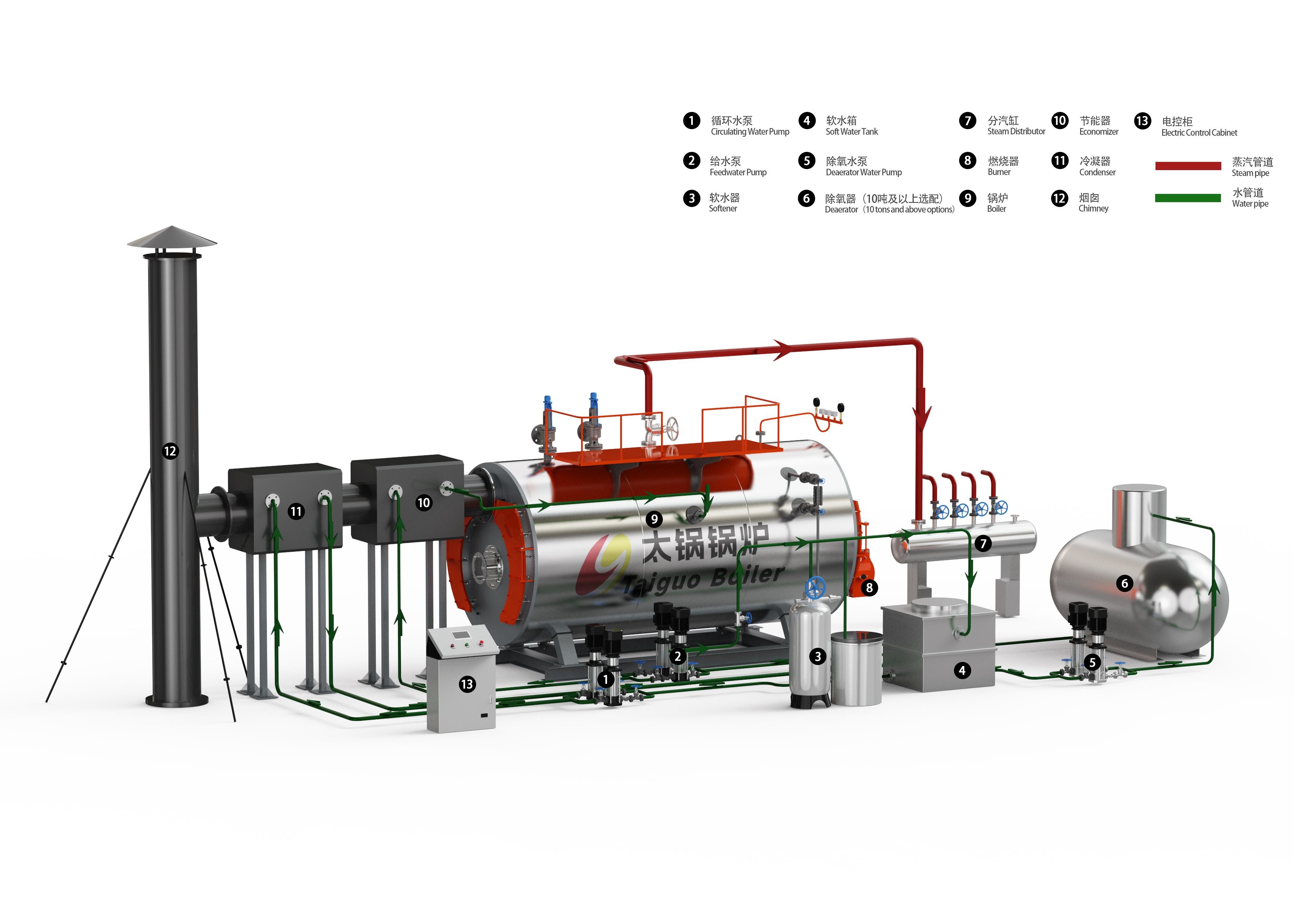

Product display:

Wholesale High Quality Steam Generator Price 2 Ton/H Boiler Oil Fired Steam Boiler For SaleWholesale High Quality Steam Generator Price 2 Ton/H Boiler Oil Fired Steam Boiler For SaleWholesale High Quality Steam Generator Price 2 Ton/H Boiler Oil Fired Steam Boiler For Sale
