Product Description:

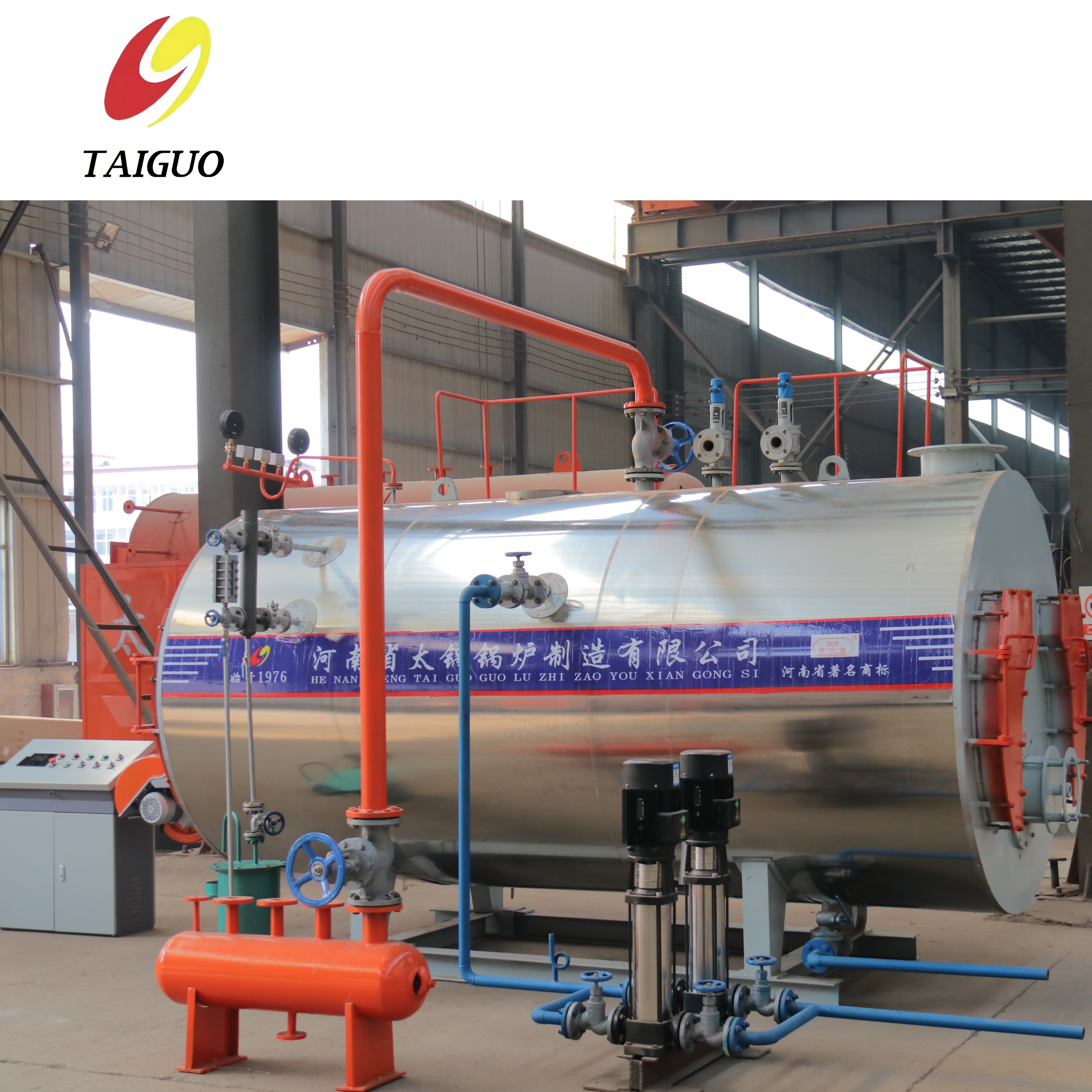

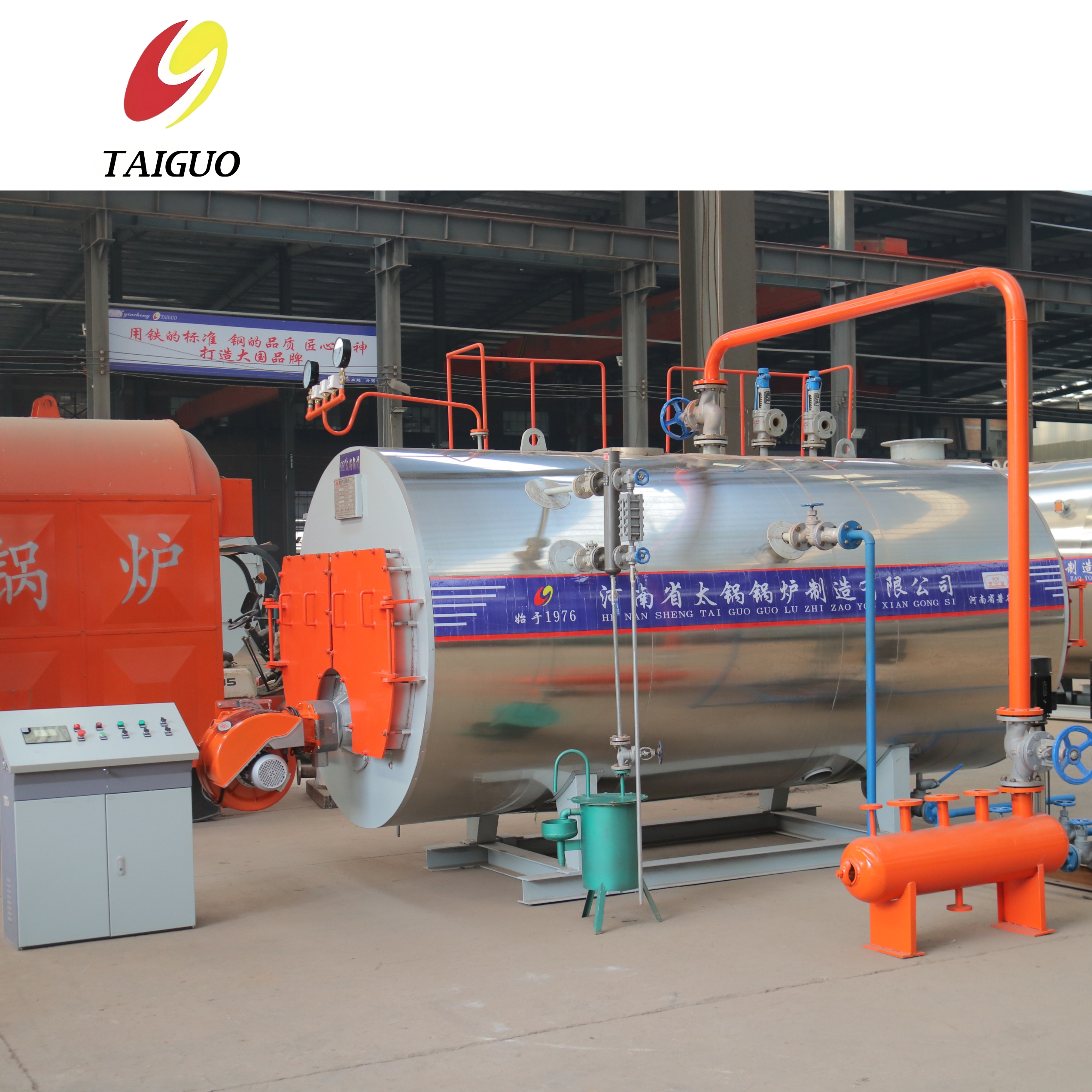

AIGUO WNS Series Oil/Gas Boiler
The AIGUO WNS series oil/gas boiler is a horizontal automatic internal combustion three return wet back type quick loading boiler. It is equipped with a large combustion chamber, which increases the combustion efficiency. The threaded pipes further enhance the heat transfer effect.
The boiler is furnished with international first-class brand burners and valves, and has perfect automatic control and safety protection devices. It can automatically control the water level, provides low water level alarm, stops the furnace when necessary, as well as automatically regulate steam pressure and further provides an overpressure alarm. It also features automatic ignition, burner fire control, and flameout protection, ensuring safe use of the boiler.
This type of boiler is suitable for a capacity range between 500kg to 20T/h.
Features:
Three Returns Design Assists Lower Exhausted Smoke Temperature
This latest piece of technology is designed with a large combustion chamber, and a world-renowned burner, which allows for more ample combustion, ensuring higher efficiency and a lower failure rate. Furthermore, it also boasts a three returns design, which serves to assist in lowering the exhausted smoke temperature.
Advanced Corrugated Furnace Structure Enhances Heat Surface Area
It adopts an advanced corrugated furnace pipe structure, increasing the heat surface area, and facilitating the free expansion of the furnace pipe after heating. It also has a wet back structure with a high reliability and low maintenance cost, further protecting the tube plate cracking. By doing so, scientists are able to better calculate the heating area, resulting in increased assurance of the output.
Technical Parameters:
| Parameter | Value |
| Boiler Type | Steam Boiler |
| Quality guarantee | 1 Year |
| weight | 6.8t-62t |
| Electrical element | PLC |
| Country of origin | Zhoukou In Henan Province |
| Thermal efficiency | 96% |
| Steam temperature | 184,194,204 |
| Industry of use | Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing |
| Installation mode | Skid Mounting |
| Working pressure | 1.0,1.25,1.6Mpa |
| Oil-Burning Heating Boiler | Yes |
| Gas Heating Boiler | Yes |
| Oil-Fired Boiler | Yes |
| Gas-Fired Boiler | Yes |
Applications:
Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.
Packing and Shipping:
Packaging and Shipping
The Gas Oil Boiler is packaged in a cardboard box of suitable size, with sufficient cushioning material to protect the product during shipping. The box should be clearly marked with the product name, model number, and any other relevant information. The box should also include a user's manual and warranty information.
The Gas Oil Boiler will be shipped by a reputable carrier, such as UPS or FedEx. The customer should provide a valid shipping address to ensure the product is delivered on time.
FAQ:
Q&A
1. How to buy a good boiler?
a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.
2. What is your main product?
Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.
3. Why choose us?
a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate
