Horizontal 6t/h oil gas fire tube steam boiler has high thermal efficiency for building materials industry

Brand Name : taiguo boiler

Model Number : WNS

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 6900-15999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Heating Efficiency : 92%

Electrical Element : PLC

Drum Placement : Horizontal Boiler

Rated steam pressure : 1.0/1.25/1.6Mpa

Overall Size : 4800*2900*3250

Design : 3-pass, wet back

Boiler Type : Condensing

Warranty : 1 Year

Structure : fire Tube

Production Capacity : 100 Sets/Year

Steam Yield : 0.5t/h-30t/h

Thermal Efficiency : 96%

Safety Features : Flame Failure Protection

Contact Now

product presentation:

WNS series horizontal internal combustion three return full wet back steam boiler. Full wave furnace with good thermal elasticity; Full edge butt welding technology reduces the temperature difference stress of furnace body; The connection between pipe and tube plate adopts the form of first expansion and then welding, which eliminates the corrosion problem and prolongs the service life of the boiler; The heat transfer coefficient of boiler is improved by screw pipe heat transfer. The product has beautiful appearance, high thermal efficiency, low fuel consumption, stable output, short installation period, convenient maintenance and high degree of automation.

product feature:

1.advanced steam boiler automatic controller, all Chinese LCD screen, man-machine interface, users only need to easily set, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other automatic operation. The boiler has complete function, complete protection, simple operation, safety and reliability, and self-diagnosis function. Once abnormal phenomenon occurs in boiler operation, the combustion will be automatically interrupted and the sound and light alarm will be issued.

2. the boiler burner is supplied by the world famous manufacturer, according to the controller instructions automatic combustion, stop, independent program controller has a number of safety protection, safe and stable performance, low maintenance rate.

3.the vertical steam boiler adopts the combustion engine under the way, two return structure, fuel combustion is sufficient, the boiler runs stably; There is a spoiler inserted in the smoke pipe, which slows down the smoke exhaust speed, increases the heat exchange, has high thermal efficiency of the boiler, and reduces the user's use cost.

4. the horizontal steam boiler is a shell type full wet back flow three-way fireworks tube structure, the flame in the large combustion chamber micro-positive pressure combustion, complete extension, low combustion heat load, high combustion thermal efficiency, effectively reduce the smoke exhaust temperature, energy saving, economic use. The structure of corrugated furnace bladder and threaded smoke pipe not only improves the heat absorption strength of boiler, but also meets the need of heat exchange surface expansion, which is scientific, reasonable and durable.

Technical Paramet


Model

Rated
Capacity
(t/h)

Rated
Pressure
(Mpa)

Rated
Temperature
(C)

Thermal
Efficiency
(%)

Exhaust gas
temperature(ºC)

Maximum
transport weight
of boiler(t)

Maximum transport size of boiler( mm)
Fuel Consumption
Light oil (Kg/h)
Natural gas (Nm³/h)
WNS1
1

0.7/ 1.0/ 1.25

170/ 184/ 194
>98
≤60
6.8
3400× 1700×2100
61.5
70.4
WNS1.5
1.5
>98
≤60
7.7
3800× 1900×2400
93.75
107.1
WNS2
2







1.0/ 1.25/ 1.6







184/ 194/204
>98
≤60
8.2
4300× 1900×2300
125
142.8
WNS3
3
>98
≤60
9.9
3900×2100×2500
187.5
214.2
WNS4
4
>98
≤60
12.7
4700×2200×2600
250
285.6

WNS5

5

>98

≤60

14.2

5200×2300×2700

312.5

357

WNS6

6

>98

≤60

17.5

5660×2400×2800

375

428.4

WNS8

8




1.25/ 1.6/2.5




194/204/225

>98

≤60

21.3

5900×2500×3000

500

571.2

WNS10

10

>98

≤60

22

6600×2700×3200

625

714
WNS12
12
>98
≤60
27.2
7000×3000×330
750
856.8

WNS15

15

>98

≤60

35.5

7500×3400×3600

937.5

1071

WNS20

20

>98

≤60

45

7800×3700×4200

1250

1428
Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.

Horizontal 6t/h oil gas fire tube steam boiler has high thermal efficiency for building materials industry

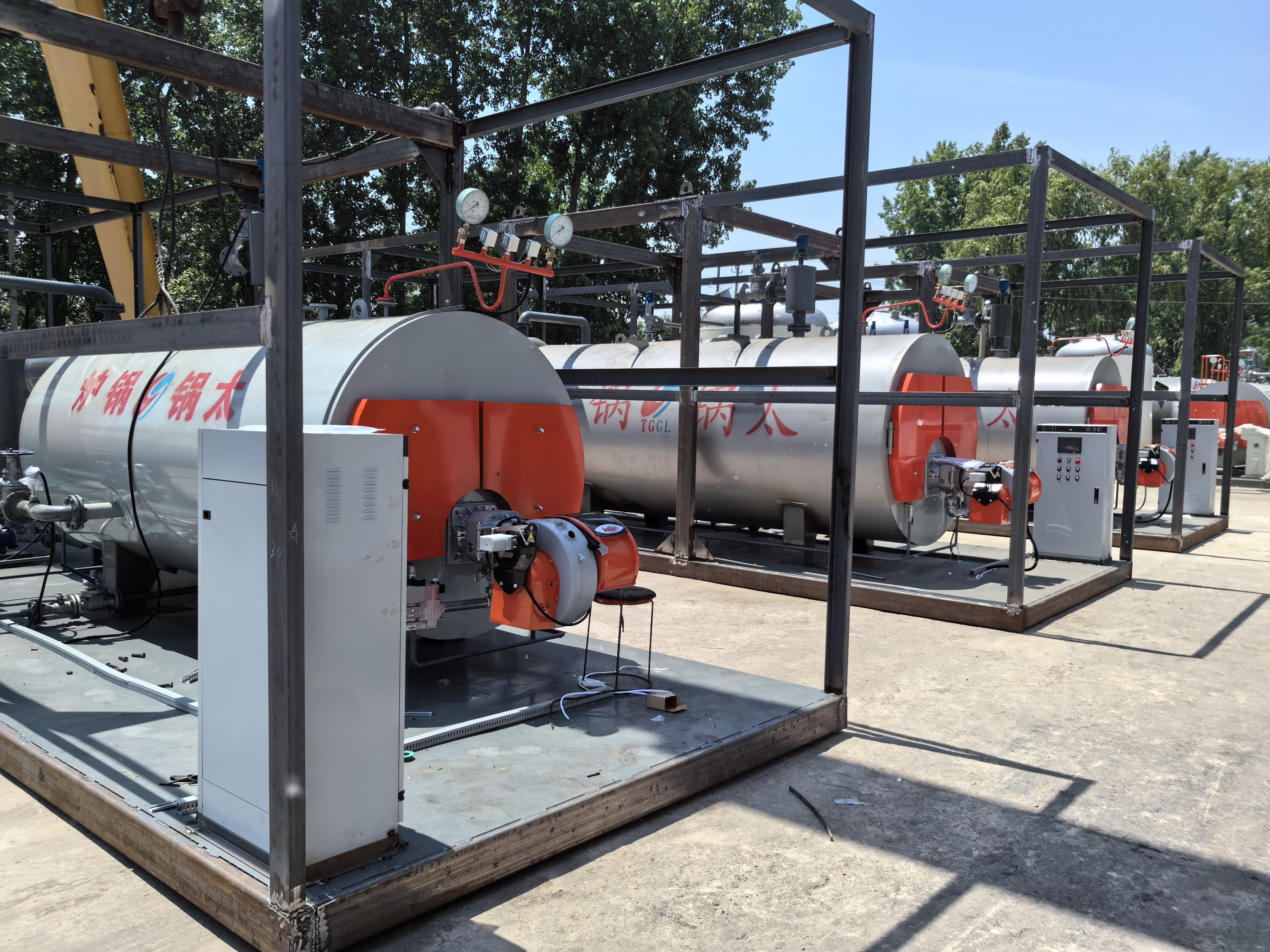

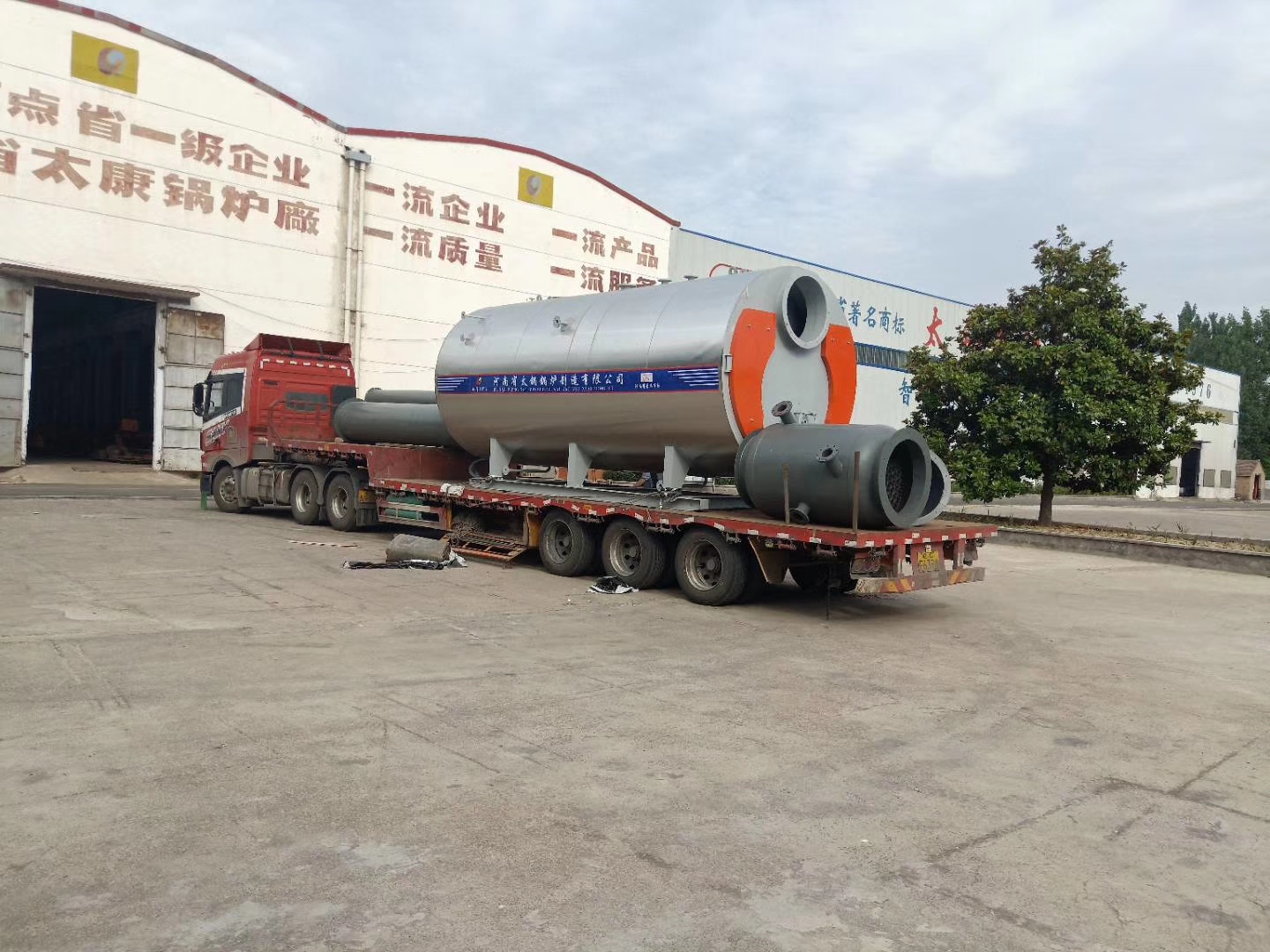

product picture:
