Industrial Hot Oil Furnace Thermal Oil Furnace Safe Reliable And High Thermal Efficiency

Product introduction:

The horizontal oil-gas organic heat carrier furnace uses oil and gas as fuel and thermal oil as medium. The hot oil circulation pump is used to force liquid phase circulation of the medium, and the heat energy is transported to the heating equipment and then returned to the heating furnace for reheating. It has a high working temperature under low pressure and can control the operation of the medium with high precision. The system has a high heat utilization rate, because the module is installed as a whole, the operation and maintenance is convenient, is a safe, efficient, energy-saving ideal preferred heating equipment.

Product advantage:

(1) Large heating area, fast heating and pressure boost;
(2) Organic heat carrier volume is small, start fast;
(3), fast assembly factory, short installation period, put into operation fast;
(4) Compact structure, small footprint, provincial infrastructure investment.
(5) Obtain low pressure and high temperature heat medium, easy adjustment, uniform heating, can meet the precise process temperature.
(6) liquid phase circulation heating, no condensing heat loss, heating system thermal efficiency is high.

Technical parameter:

model ltem			YY(Q)W 350	YY(Q)W 500	YY(Q)W 700	YY(Q)W 1400	YY(Q)W 2100	YY(Q)W 2800	YY(Q)W 3500	YY(Q)W 4200	YY(Q)W 7000	YY(Q)W 14000
Rated thermal p ower		KW	350	500	700	1400	2100	2800	3500	4200	7000	14000
Design pressure		Mpa	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Medium outlet t emperature		C	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350
Heating area		m	21.3	24	40	78.5	94.5	157	205.2	240	410	710
Fuel			light oil/heavy/LNG/CG
Fuel	Light oil	Kg/h	37	52	69	140	210	280	350	420	680	1360
	LNG	Nm3/h	44	63	83	170	260	332	425	498	810	1620
Thermal efficiency			96%	96%	96%	96%	96%	96%	96%	96%	96%	96%
Furnace oil cont ent		m3	0.25	0.3	0.5	1.1	1.7	2.29	3.8	4.3	7	15.5
Boiler dimension s		mm	2100× 1390× 2055	2200× 1390× 2055	3240× 1470× 2260	4145× 1900× 2786	5020× 2050× 3080	5526× 2326× 3230	6555× 2470× 3634	6753× 2838× 3704	8200× 3050× 3800	12000× 3780× 4350
Boiler transport weight		T	2.58	3	3.7	6.9	8.8	11.5	17.8	19.8	27.5	42
Oil inlet		DN	80	100	100	125	150	150	200	200	250	350
Oil outlet		DN	80	100	100	125	150	150	200	200	250	350
Expansion tank		m3	1.5	1.5	1.5	2.5	2.5	3	3	4.5	6	8
Storage tank		m3	2.5	2.5	2.5	5	5	8	8	10	15	25
ChimneyΦ		mm	280	280	280	350	400	400	500	500	700	1000

High Thermal Efficiency Thermal oil furnace

Industrial Thermal oil furnace

Reliable Thermal oil furnace

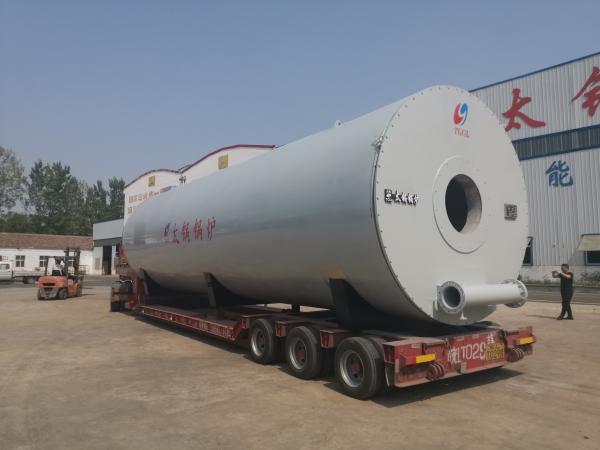

Industrial Hot Oil Furnace Thermal Oil Furnace Safe Reliable And High Thermal Efficiency Images
