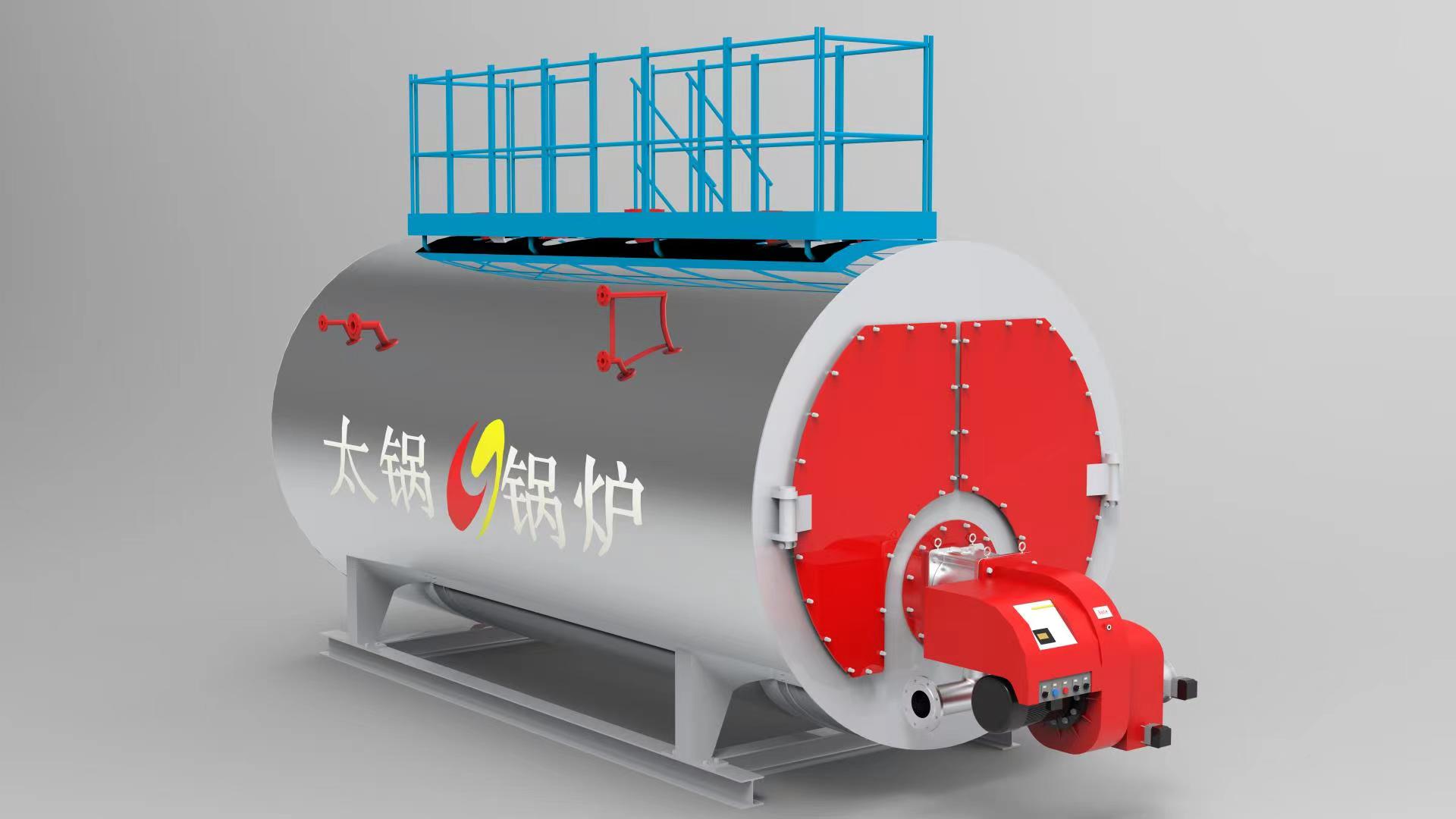

Product Description:
Based on sophisticated oil-gas fired boilers production experience, our WNSL sries oil-gas fired boilers are used for ecological power generation through years of cooperation with famous domestic scientific research institutions and universities. Based on the operation data of the company’s existing oil-gas fired boilers, we have developed the latest condensing oil-gas fired boilers which is high-efficient, energy-saving and environmental friendly. The latent heat of vaporization is recovered by using a large amount of water vapor contained in the flue gas after natural gas combustion, so as to improve the boiler efficiency to more than 100%.
Features:
- 1. The boiler adopts wet-back structure, full edge butt weld, high reliability, low maintenance cost. In addition, the advanced corrugated furnace structure not only enhances the heat transfer area, but also satisfies the free expansion of the furnace after heating.
2. Design over temperature, over pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.
3. Adopt a new type of spiral fin energy saver to increase the heating area, reduce its volume, and make its structure compact
4. The boiler adopts the combustion chamber large volume design, so that the combustion is more full, (optional) the use of ultra-low nitrogen burner, FGR gas recirculation technology, so that the nitrogen oxide can be reduced to less than 30 mg; The smoke pipe adopts the threaded structure, which enhances the heat transfer effect.
Technical Parameters:
| Product Attributes | Details |
| Fuel Type | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| Weight | 22t |
| Steam Temperature | 184,194,204 |
| Boiler Type | Steam Boiler |
| Structural Form | Horizontal |
| Electrical Element | PLC |
| Evaporation Capacity | 10t/h |
| Dimension | LCD Display English And Chinese Menu Can Touch Screen |
| Country of Origin | Zhoukou In Henan Province |
| Mode of Transport | Land, Air, Sea |
| Steam pressure | 1.0,1.25,1.6Mpa |
| Boiler type | Industrial steam boiler |
Applications:
TAIGUO Brand Oil and Gas Boiler is a gas-fired heating boiler with wns model number from Zhoukou in Henan Province. It has CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certifications, and the minimum order quantity is 1. The price is 9800, and the packaging details are to get ready, in bulk. It will be delivered at the agreed time, and the supply ability is 100Taiwan. It is mainly used in the medicine, chemical, light, textile, culture, food and beverage, plastic foam, paper and paper products, wood processing industries, and the electrical element is PLC. The dimension is LCD display English and Chinese menu can touch screen, and the weight is 6.8t-62t. It can use natural gas, light oil, heavy oil, and liquefied petroleum gas as fuel.
Support and Services:
Gas Oil Boiler Technical Support and Services
We provide a variety of customer service and technical support options to ensure that our customers get the most out of their Gas Oil Boiler products.
- 24/7 phone support
- Online chat support
- Email support
- Live video support
- On-site repair services
- Free technical consultations
Packing and Shipping:
The packaging and shipping of Gas Oil Boiler is as follows:
- Before delivering the Gas Oil Boiler, it will be packed into wooden cases with waterproof material to avoid any damage during the transportation.
- The delivery will be arranged by sea shipping, courier, air cargo or land transportation according to customer’s requirements.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
