YYQW Thermal Oil Boiler Gas Boiler Remote Control System Has High Thermal Efficiency

Name: YYQW Thermal Oil Boiler Gas Boiler Remote Control System Has High Thermal Efficiency
Brand: taiguo boiler
Price: 7999 USD

YYQW Thermal Oil Boiler Gas Boiler Remote Control System Has High Thermal Efficiency Manufactures

Brand Name : taiguo boiler

Model Number : YYQW

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 7999-21999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Design : Compact Design

Specification : Customized

Boiler Structure : Coil Pipe Furnace fuel fired boiler

Control System : PLC control

Rated Power : 350-14000KW

Customizable Goods : yes

Oil Capacity : 1.1-15.5 m³

Application : Chemical, Textile, Food, Plastic, Rubber, Paper, Wood, etc.

Design Fuel : diesel

Core Components : Burner, Oil Pump, Electric Control

Model : 2000000kcal/h

Item : hot oil boiler, thermal oil heater

Contact Now

Product introduction

The electric heat conduction oil furnace has the characteristics of compact structure, small size, light weight, easy installation and operation, heating and heating fast, no environmental pollution, etc. The computer automatic temperature control can obtain higher working temperature under lower working pressure. Electrical heat conduction oil furnace technical performance and use: electrical heat conduction oil furnace has low pressure (≤0.4MPa) stable operation, computer automatic control, thermal efficiency of up to 90%, electrical heat conduction oil furnace is widely used in petrochemical, food, plastics, rubber, pharmaceutical, grease materials, building materials industry, textile printing and dyeing, and other industries, is a new ideal heating equipment.

Product characteristics

1. with a complete operation control system and safety monitoring system device, can realize the automatic control of thermal oil furnace, the operation is very convenient.
2. the heat conduction oil stove has a high thermal efficiency, the thermal efficiency can be as high as 95 or more, and the temperature accuracy is about 1℃.
3.the heat conduction oil stove has a small volume, both in transportation and installation are relatively simple.
4. the heat conduction oil furnace adopts closed circulation heating, which is connected with the atmosphere, not only can extend the service life of the boiler but also can play a role in energy saving and environmental protection.
5. the heat conduction oil furnace has the characteristics of low pressure and high temperature, mainly under low pressure to work, can obtain more than 450℃ temperature.

Technical Paramet

model ltem		YY(Q)W 350	YY(Q)W 500	YY(Q)W 700	YY(Q)W 1400	YY(Q)W 2100	YY(Q)W 2800	YY(Q)W 3500
Rated thermal power KW		350	500	700	1400	2100	2800	3500
Design pressure Mpa		1.1	1.1	1.1	1.1	1.1	1.1	1.1
Medium outlet temperatureC		≤350	≤350	≤350	≤350	≤350	≤350	≤350
Heating area m		21.3	24	40	78.5	94.5	157	205.2
Fuel		Light oil/heavy/LNG/CG
Fuel	Light oil Kg/h	37	52	69	140	210	280	350
	LNG Nm3/h	44	63	83	170	260	332	425
Thermal efficiency		96%	96%	96%	96%	96%	96%	96%
Furnace oil cont ent m3		0.25	0.3	0.5	1.1	1.7	2.29	3.8
Boiler dimensions mm		2100× 1390× 2055	2200× 1390× 2055	3240× 1470× 2260	4145× 1900× 2786	5020× 2050× 3080	5526× 2326× 3230	6555× 2470× 3634

Applications:

textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood processing, clothing, laundry, etc.

YYQW Thermal Oil Boiler Gas Boiler Remote Control System Has High Thermal Efficiency

Q1:How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

1.Electric control cabinet adopts PLC touch screen, display in English.

2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.

3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

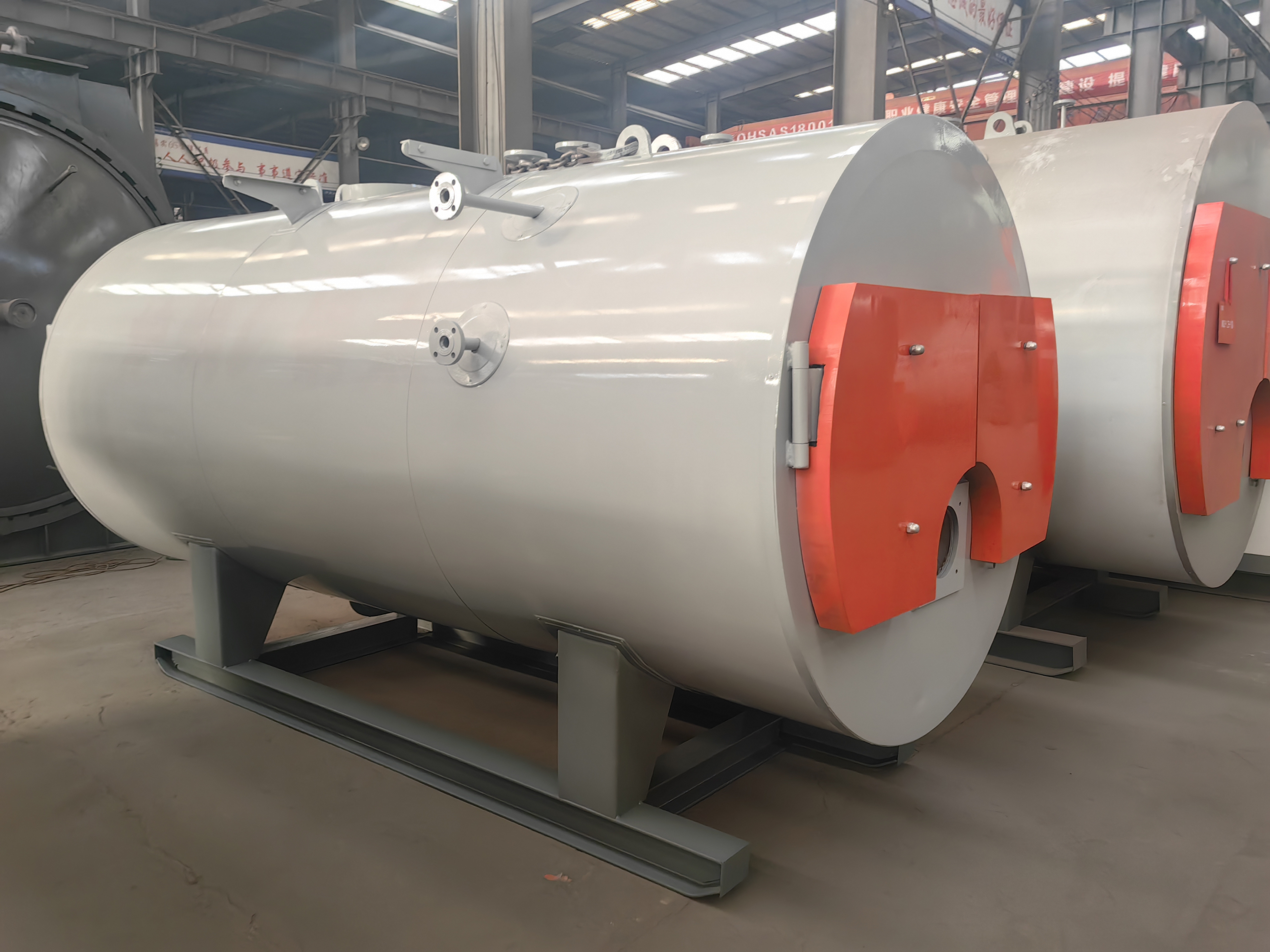

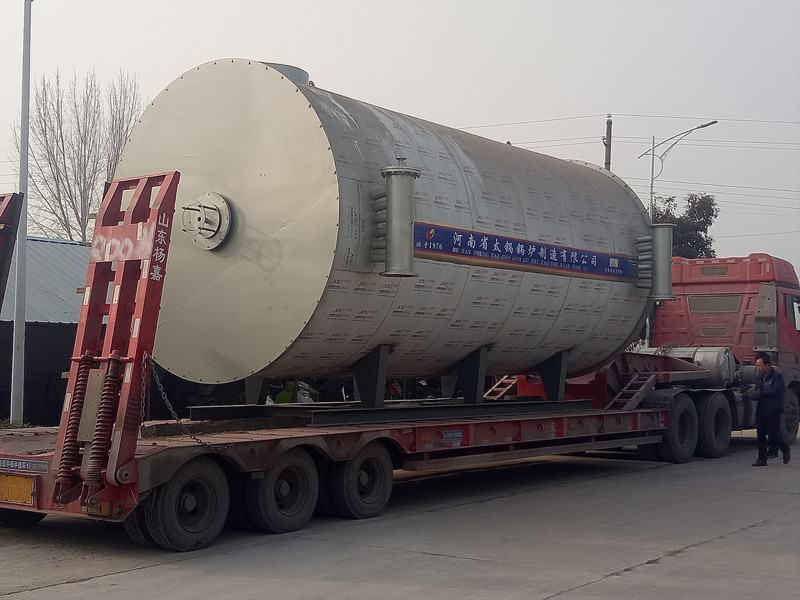

Product picture
