Product introduction
WNS steam boiler refers to fully automatic fuel oil (gas) steam boiler, adopting horizontal internal combustion full wet back, high-efficiency threaded flue pipe, equipped with perfect thermal insulation outsourcing design, the boiler thermal efficiency is up to 85% or more, the product design is novel, the structure is reasonable, and the process performance is good, so that this product has an unusual and excellent quality.
Product characteristics
1.advanced steam boiler automatic controller, all Chinese LCD screen, man-machine interface, users only need to easily set, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other automatic operation. The boiler has complete function, complete protection, simple operation, safety and reliability, and self-diagnosis function. Once abnormal phenomenon occurs in boiler operation, the combustion will be automatically interrupted and the sound and light alarm will be issued.
2. the boiler burner is supplied by the world famous manufacturer, according to the controller instructions automatic combustion, stop, independent program controller has a number of safety protection, safe and stable performance, low maintenance rate.
3. the vertical steam boiler adopts the combustion engine under the way, two return structure, fuel combustion is sufficient, the boiler runs stably; There is a spoiler inserted in the smoke pipe, which slows down the smoke exhaust speed, increases the heat exchange, has high thermal efficiency of the boiler, and reduces the user's use cost.
4.the horizontal steam boiler is a shell type full wet back flow three-way fireworks tube structure, the flame in the large combustion chamber micro-positive pressure combustion, complete extension, low combustion heat load, high combustion thermal efficiency, effectively reduce the smoke exhaust temperature, energy saving, economic use. The structure of corrugated furnace bladder and threaded smoke pipe not only improves the heat absorption strength of boiler, but also meets the need of heat exchange surface expansion, which is scientific, reasonable and durable.
|
Model
|
Rated
Capacity
(t/h)
|
Rated
Pressure
(Mpa)
|
Rated
Temperature
(C)
|
Thermal
Efficiency
(%)
|
Exhaust gas
temperature(ºC)
|
Maximum
transport weight
of boiler(t)
|
Maximum transport size of boiler( mm)
| Fuel Consumption |
| Light oil (Kg/h) | Natural gas (Nm³/h) |
| WNS1 | 1 |
0.7/ 1.0/ 1.25
|
170/ 184/ 194
| >98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 |
| WNS1.5 | 1.5 | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 |
| WNS2 | 2 |
1.0/ 1.25/ 1.6
|
184/ 194/204
| >98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 |
| WNS3 | 3 | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 |
| WNS4 | 4 | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 |
|
WNS5
|
5
|
>98
|
≤60
|
14.2
|
5200×2300×2700
|
312.5
|
357
|
|
WNS6
|
6
|
>98
|
≤60
|
17.5
|
5660×2400×2800
|
375
|
428.4
|
|
WNS8
|
8
|
1.25/ 1.6/2.5
|
194/204/225
|
>98
|
≤60
|
21.3
|
5900×2500×3000
|
500
|
571.2
|
|
WNS10
|
10
|
>98
|
≤60
|
22
|
6600×2700×3200
|
625
|
714
|
| WNS12 | 12 | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 |
|
WNS15
|
15
| | |
>98
|
≤60
|
35.5
|
7500×3400×3600
|
937.5
|
1071
|
|
WNS20
|
20
| | |
>98
|
≤60
|
45
|
7800×3700×4200
|
1250
|
1428
|
Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
1.Electric control cabinet adopts PLC touch screen, display in English. 2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.
3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

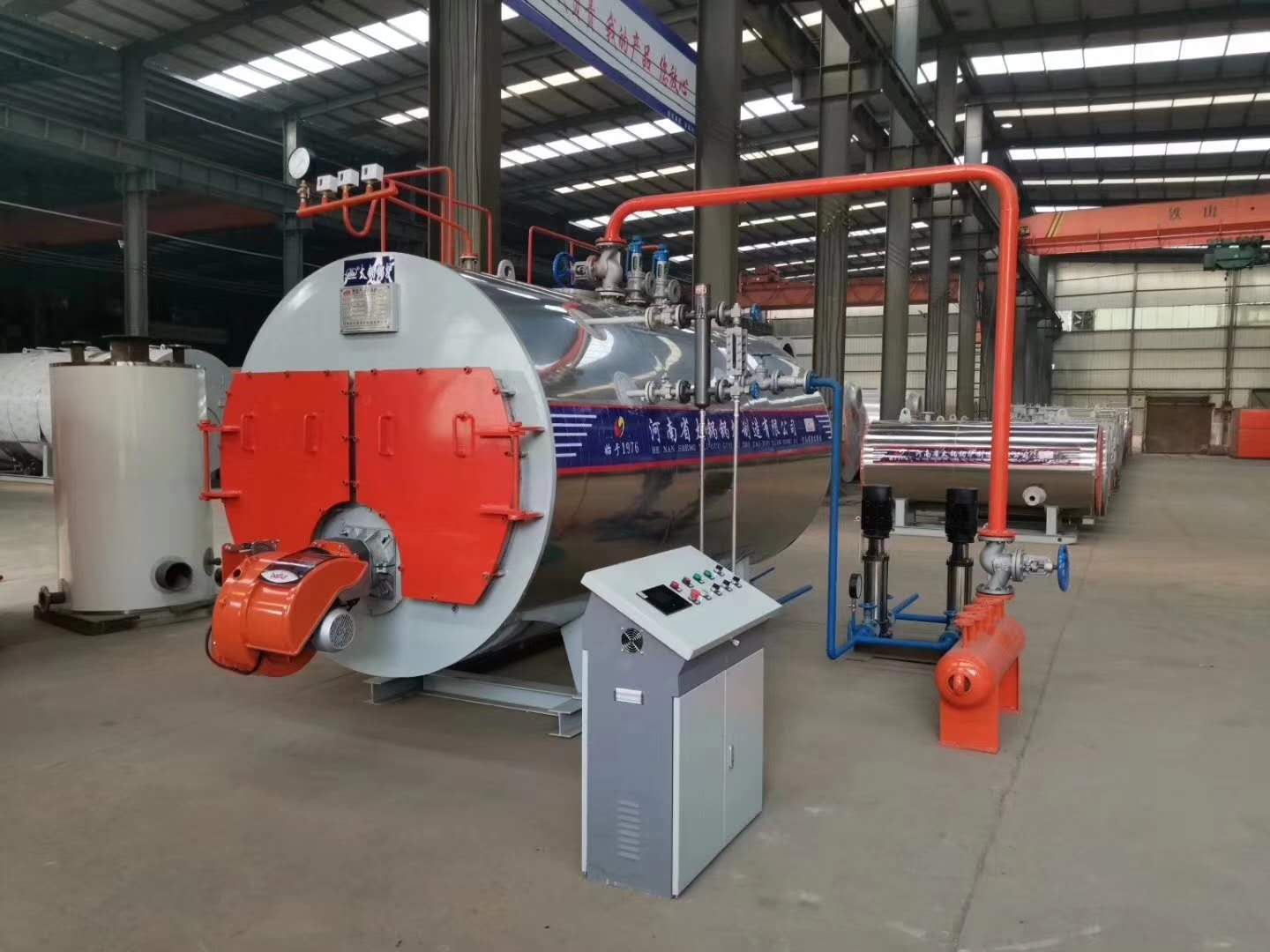

Product picture
