Industry Taiguo Energy Saving Low Pressure Waste Heat Recovery Boiler

Product Categories
HENAN TAIGUO BOILER PRODUCTS CO.,LTD.
Contact Now

Industry Taiguo Energy Saving Low Pressure Waste Heat Recovery Boiler

Brand Name : taiguo boiler

Model Number : WNS

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 5000-10000USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Control Type : Digital

Fuel Consumption : Natural gas/Liquefied gas/Pipeline gas

Burning Style : Chamber Combustion Boiler

Trademark : TAIGUO

Structure : Fire Tube

Customizable Goods : YES

Rated Working Pressure : 1.25MPa

Water Circulation : Natural Circulation

Advantage : High heating efficiency

Heating Efficiency : 92%

Size : Compact

Quality Guarantee : 1 Year

Evaporation Capacity : 1t/h

Heating System : Central Heating

Pressure : Low Pressure

Additional Features : Condensing/Modulating

Efficiency Rating : 90%-95%

Dimensions : H 700mm x W 400mm x D 300mm

Manufacturing Level : A

Warranty : 2-5 years

Weight : 25-30 kg

Rated Steam Temperature : 184/194/204

Style : Horizontal

Contact Now

Product introduction:

WNS automatic boiler is the horizontal type, smoke gas 3-pass, fire-tube boiler, mainly consisted of boiler shell, corrugated furnace, diversion smoke chamber, screw smoke tubes ,etc. The fuel can be light oil, heavy oil, natural gas, liquefied gas, city coal gas,biogas and so on. Product dimensions and equipment advantage levels are customized under the customer's individual needs.

Product characteristics:

Reasonable design
Horizontal internal combustion three return full wet back design, 100% corrugated furnace. It has good thermal scalability. The whole design of water enveloping fire, sufficient heating area and reasonable structure arrangement are the guarantee of high efficiency operation of boiler

High efficiency and energy saving
The thermal efficiency of steam and hot water boiler series is between 87% and 92%. The large space combustion chamber coupled with reasonable structural arrangement can transfer more heat into the water, greatly improving the heat exchange capacity of fuel-steam and fuel-hot water.
Meet environmental requirements
Large combustion space, full use of radiation heat transfer, coupled with high-quality and reliable imported burners, so that the fuel can be completely burned, greatly reducing the emission of harmful components in the flue gas. After the test of the statutory department, the company's fuel (gas) steam, hot water boiler meets the national environmental protection requirements, is an ideal environmental protection products.
High heating quality
The steam boiler has sufficient steam storage space, which can ensure that the quality of dry steam is improved in the case of large load fluctuations.

Technical parameter:



Model

Rated
Capacity
(t/h)

Rated
Pressure
(Mpa)

Rated
Temperature
(C)

Thermal
Efficiency
(%)

Exhaust gas
temperature(ºC)

Maximum
transport weight
of boiler(t)

Maximum transport size of boiler( mm)
Fuel Consumption
Light oil (Kg/h)
Natural gas (Nm³/h)
WNS1
1

0.7/ 1.0/ 1.25

170/ 184/ 194
>98
≤60
6.8
3400× 1700×2100
61.5
70.4
WNS1.5
1.5
>98
≤60
7.7
3800× 1900×2400
93.75
107.1
WNS2
2







1.0/ 1.25/ 1.6







184/ 194/204
>98
≤60
8.2
4300× 1900×2300
125
142.8
WNS3
3
>98
≤60
9.9
3900×2100×2500
187.5
214.2
WNS4
4
>98
≤60
12.7
4700×2200×2600
250
285.6

WNS5

5

>98

≤60

14.2

5200×2300×2700

312.5

357

WNS6

6

>98

≤60

17.5

5660×2400×2800

375

428.4

WNS8

8




1.25/ 1.6/2.5




194/204/225

>98

≤60

21.3

5900×2500×3000

500

571.2

WNS10

10

>98

≤60

22

6600×2700×3200

625

714
WNS12
12
>98
≤60
27.2
7000×3000×330
750
856.8

WNS15

15

>98

≤60

35.5

7500×3400×3600

937.5

1071

WNS20

20

>98

≤60

45

7800×3700×4200

1250

1428
Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.

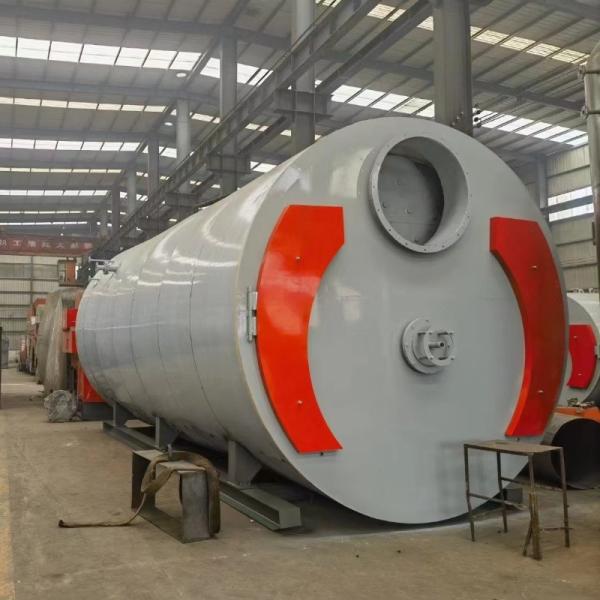

Product picture:Industry Taiguo Energy Saving Low Pressure Waste Heat Recovery BoilerIndustry Taiguo Energy Saving Low Pressure Waste Heat Recovery BoilerIndustry Taiguo Energy Saving Low Pressure Waste Heat Recovery Boiler
