High Steam Output SZS Double Drum Series Oil Gas Steam Boiler Large Tonnage Can Be Customized

Brand Name : taiguo boiler

Model Number : SZS

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 12000-59999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Customizable Goods : YES

Mode Of Transport : Land, Sea

Customization : Available

Working Pressure : 1.0、1.25、1.6Mpa

Thermal Efficiency : 96%

Application : food,textile,Machinery Industry

Boiler Dimensions : Height/Width/Depth

Origin : Henan

Burner : High-efficiency, low-NOx

Overall Size : 4800*2900*3250

Control System : Digital or Manual

Contact Now

Product introduction

Fulton designed the D-shaped SZS series gas and oil-fired boiler using a fully membrane-type wall structure of double cylinder natural circulation water tube boiler., it is composed of water drum, film type water cooling wall, convection tube bundle, economizer, condenser, fuel combustion furnace, flue gas convection bank into the chimney flue gas waste heat recovery device. The boiler has the advantages of full combustion, no pollution, easy operation and easy installation. High thermal efficiency, large output, strong load adaptability, high degree of automation, easy to operate, safe and reliable, is an ideal high efficiency, low load boiler. Low pollution green environmental protection products.

Product characteristics

  • The upper and lower cylinders of the boiler are arranged longitudinally, and a large number of convection tubes are arranged between the two cylinders.
  • Adopt micro-positive pressure combustion, no need to be equipped with an induced draft fan to exhaust smoke.
  • SZS series boilers can be equipped with various types of burners to achieve full automatic control.
  • SZS series boilers are small in size, large in capacity, quick in response to load, easy to maintain, and less in infrastructure investment.
  • If the boiler is equipped with a condenser, the smoke temperature can be less than 70℃, and the thermal efficiency can reach 100%.
  • The boiler is equipped with a complete platform escalator. The oil and gas furnace body of less than 30 tons can be fully assembled before delivery, and more than 30 tons generally need to be loose (sheet) loaded before delivery.

Technical Paramet
Model

SZS4

SZS6

SZS10

SZS15

SZ20

SZ25

SZS30

SZS35
Rated evaporation
(t/h)

4

6

10

15

20

25

30

35
Rated working pressure
(Mpa)
1.25/ 1.6/2.5
Rate steam temperature
(℃)
194/204/226
Feed water temperature
(℃)
20
20
104/20
104/20
104/20
104/20
104/20
104/20
heating
area(m)Body
90.22
125.6
205.56
216.84
271.5
285.24
392.34
457.7
Available Fuel
natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil
Fuel consumption
Natural gas(Nm3/h)

288

432

720

1080

1440

1800

2160

2525
Thermal efficiency (%)
＞98
Weight biggest part of Transportation (t)
25
32
40
45
50.6
60
68.2
77
Overall dimension boiler assembied L×W×H( m )
5.76*4.1 0*3.70
7.84*3.4 0*3.40
8.00*43. 60*4.70
8.90*3.9 0*4.00
8.90*3.9 0*4.00
10.50*4. 12*4.15
10.50*4. 30*4.23
11.78*4. 40*4.35

Applications:

Chemical, light industry, textile, building material,cultivation, food and beverage, plastic foam,printing, dyeing and washing, rubber processing,paper products, wood processing,hotel, clothing and leather manufacture etc.
High Steam Output SZS Double Drum Series Oil Gas Steam Boiler Large Tonnage Can Be CustomizedHigh Steam Output SZS Double Drum Series Oil Gas Steam Boiler Large Tonnage Can Be Customized

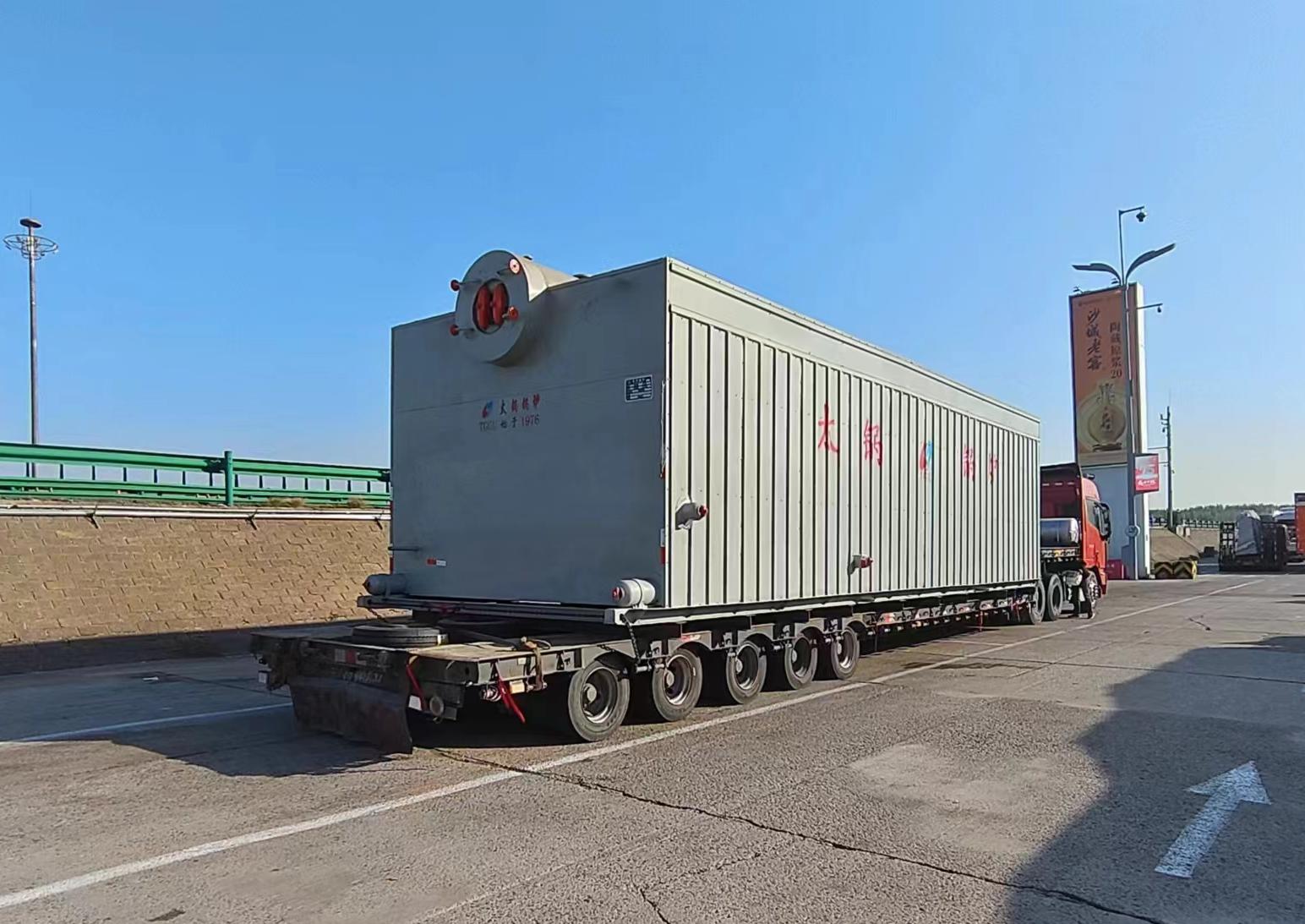

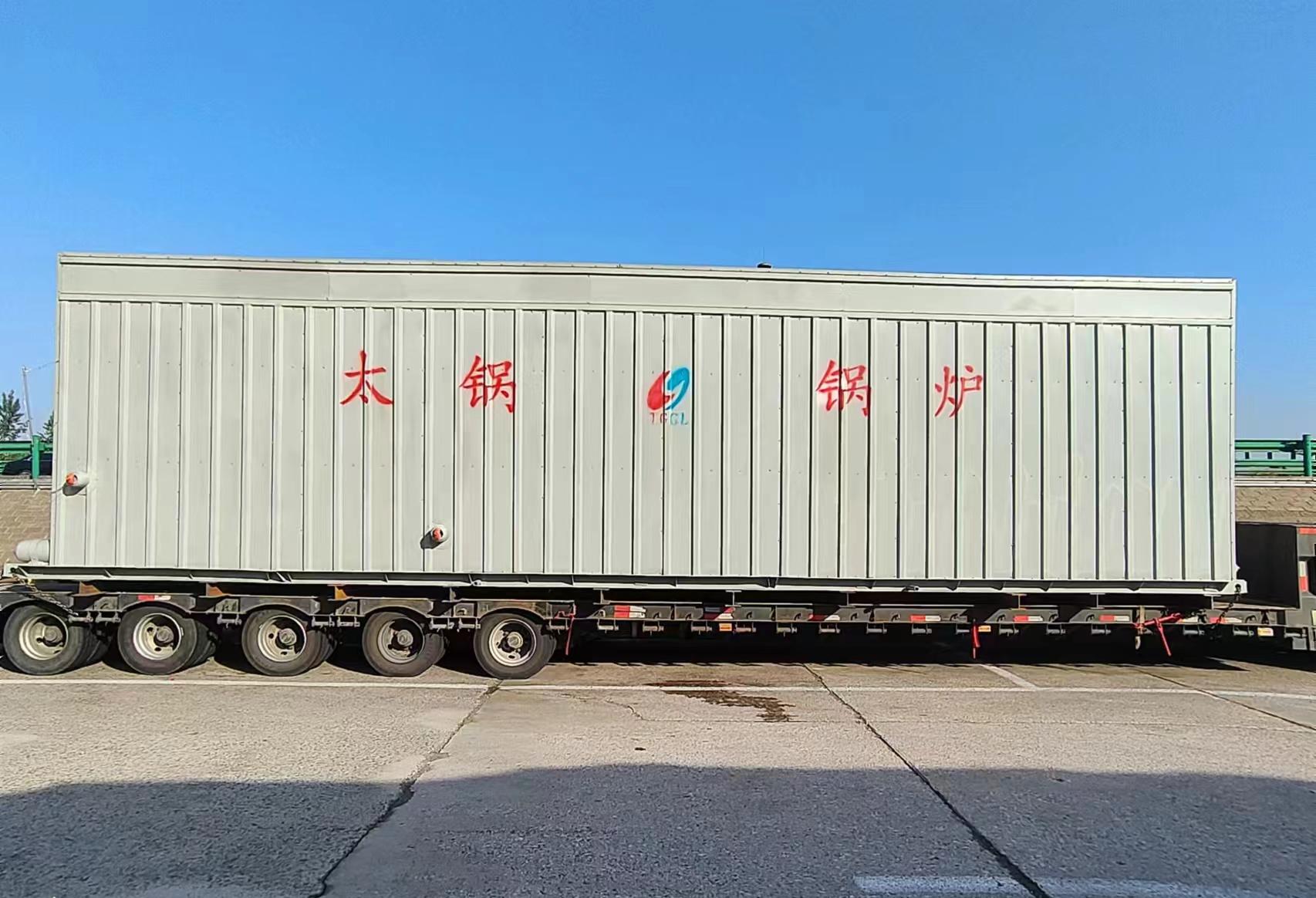

Product picture
High Steam Output SZS Double Drum Series Oil Gas Steam Boiler Large Tonnage Can Be CustomizedHigh Steam Output SZS Double Drum Series Oil Gas Steam Boiler Large Tonnage Can Be Customized
