Product introduction:
Principle of gas steam boiler: Gas steam boiler is the use of natural gas, liquefied gas, city gas and other gas fuel as fuel, burning the heat in the furnace, heating the water in the pot, and vaporizing it into steam heat conversion equipment. The water in the pot (cylinder) is continuously heated by the energy released from the combustion of gas fuel in the furnace to increase the temperature and produce pressurized steam. Since the boiling point of water rises with the pressure, the pot is sealed, the expansion of water vapor inside is limited and the pressure is formed to form thermal power, strictly speaking, the water vapor of the boiler is heated to saturated water in the cylinder at constant pressure and then vaporized, which is widely used as an energy source.
Product advantage:
1. More than 95% of the welding of the boiler adopts intelligent welding, and the one-time molding is more accurate; the external parts are all shot blasted and tested for flaw detection, with a flaw detection pass rate of 100%.
2. The new heat exchange element "finned heat exchange tube" has ultra-high thermal conductivity, increases the heat exchange area by 5 times, fully absorbs the latent heat of flue gas, achieves a larger heat exchange coefficient, and has higher thermal efficiency.
3. The scale barrier plate technology is adopted to adjust the water circulation structure so that the scale is deposited on the upper part of the scale barrier plate instead of the top of the inner tank where it is easy to gather. It only needs to be checked and cleaned regularly.
Technical parameter:
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Thermal Efficiency (%) | Exhaust gas temperature(ºC) | Maximum transport weight of boiler(t) | Maximum transport size of boiler( mm) | Fuel Consumption |
| Light oil (Kg/h) | Natural gas (Nm³/h) |
| WNS1 | 1 | 0.7/ 1.0/ 1.25 | 170/ 184/ 194 | >98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 |
| WNS1.5 | 1.5 | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 |
| WNS2 | 2 | 1.0/ 1.25/ 1.6 | 184/ 194/204 | >98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 |
| WNS3 | 3 | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 |
| WNS4 | 4 | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 |
| WNS5 | 5 | >98 | ≤60 | 14.2 | 5200×2300×2700 | 312.5 | 357 |
| WNS6 | 6 | >98 | ≤60 | 17.5 | 5660×2400×2800 | 375 | 428.4 |
| WNS8 | 8 | 1.25/ 1.6/2.5 | 194/204/225 | >98 | ≤60 | 21.3 | 5900×2500×3000 | 500 | 571.2 |
| WNS10 | 10 | >98 | ≤60 | 22 | 6600×2700×3200 | 625 | 714 |
| WNS12 | 12 | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 |
| WNS15 | 15 | | | >98 | ≤60 | 35.5 | 7500×3400×3600 | 937.5 | 1071 |
| WNS20 | 20 | | | >98 | ≤60 | 45 | 7800×3700×4200 | 1250 | 1428 |
| | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |

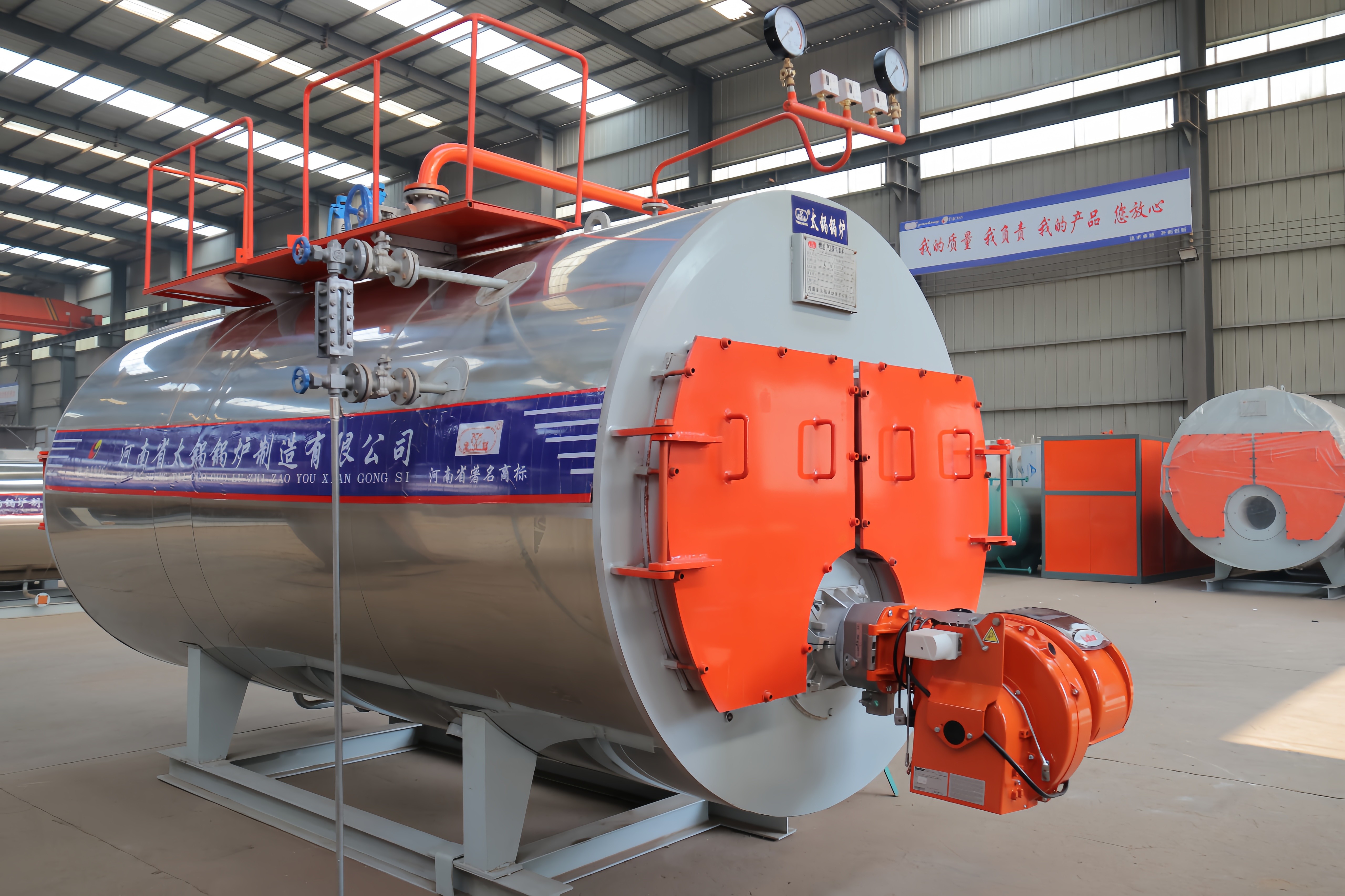

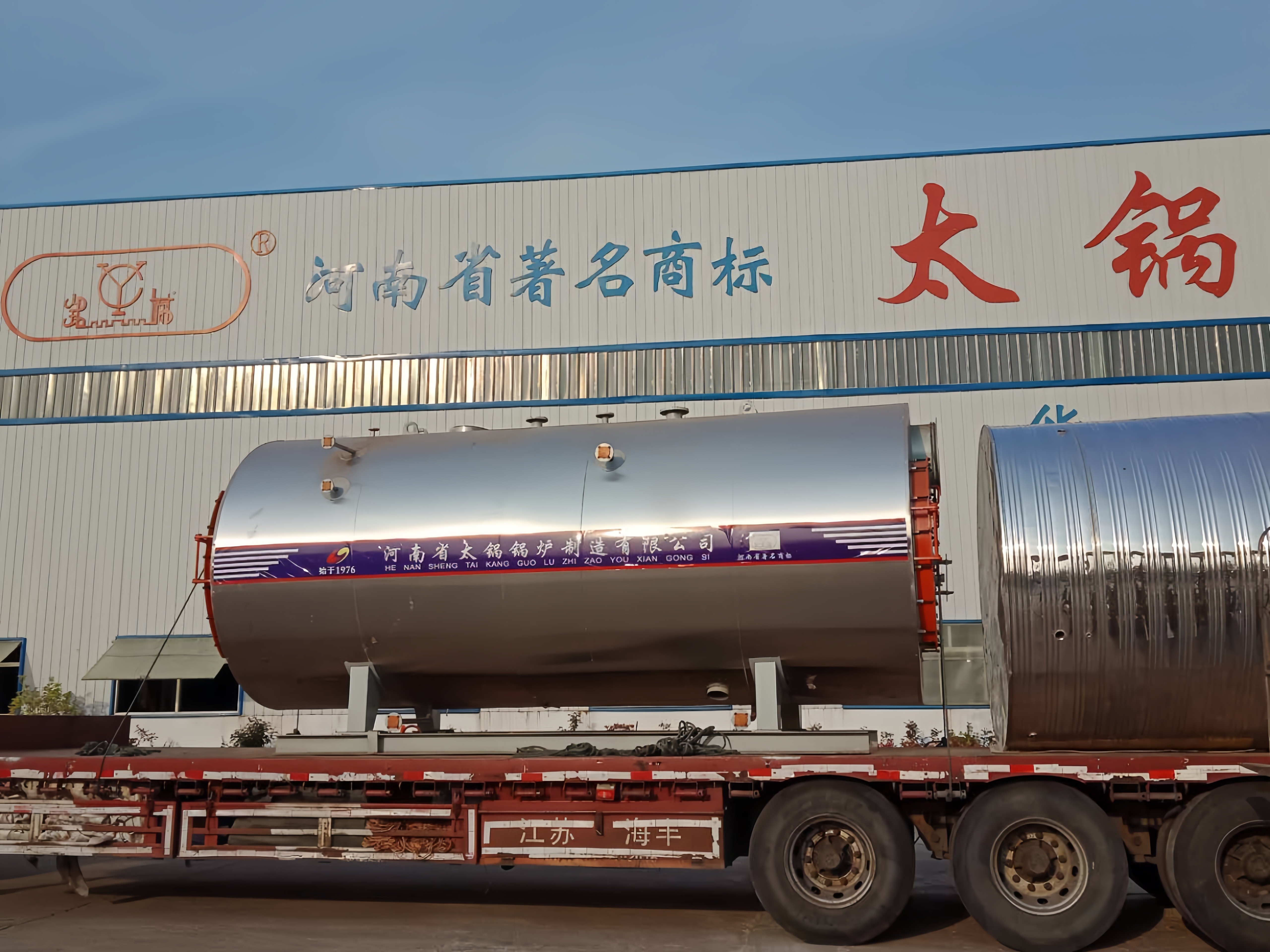

Product display:
Applicable industry:
1. Chemical processes and other production processes
2, food processing (cooking, sterilization, drying, brewing)
3, grain processing (storage, export)
4, wood processing (plate press, wood drying)
5, hotel, bath center, washing, restaurant, canteen
6. Power generation, bioengineering
7, building materials (autoclave, bridge and other pre-products steamed)
8. Foam production
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
