Product introduction:

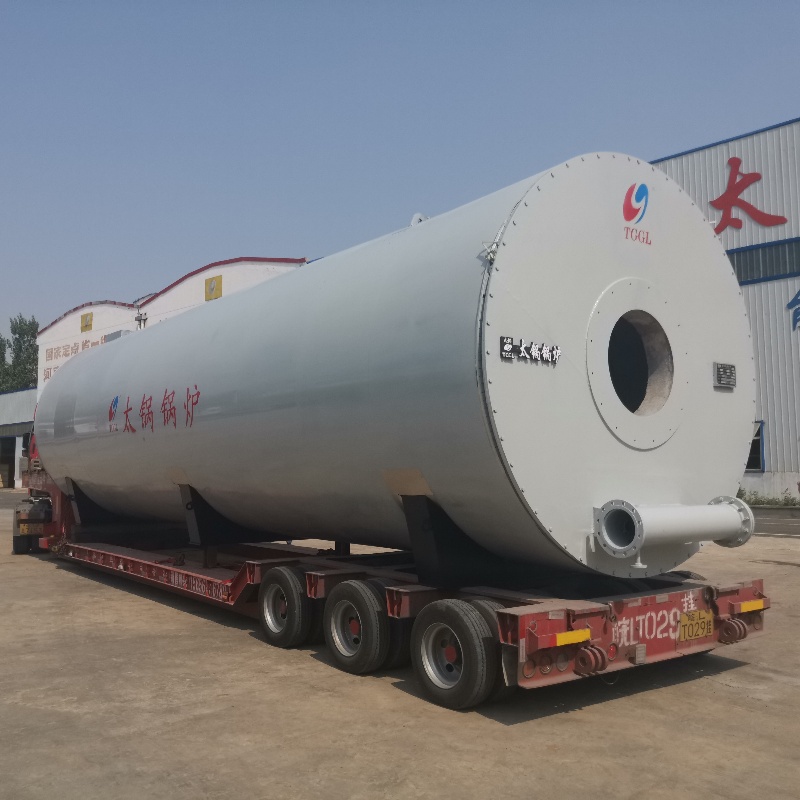

Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
1. Best three -story design, large diameter burning room
The efficiency of boilers with a large heating area is very high
The third tube protects the shell of the boiler to avoid deformation
2. External oil collection box
Protect the high temperature smoke in the heating chimney
Easy to maintain
3. Lead the level of automatic control measures
Multiple control protection and protection of accurate oil temperature control, temperature, pressure and flue gas temperature
Safe and reliable operation
Technical parameter:
|  model
ltem | YY(Q)W 350 | YY(Q)W 500 | YY(Q)W 700 | YY(Q)W 1400 | YY(Q)W 2100 | YY(Q)W 2800 | YY(Q)W 3500 | YY(Q)W 4200 | YY(Q)W 7000 | YY(Q)W 14000 |
| Rated thermal p ower | KW | 350 | 500 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 7000 | 14000 |
| Design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Medium outlet t emperature | C | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
| Heating area | m | 21.3 | 24 | 40 | 78.5 | 94.5 | 157 | 205.2 | 240 | 410 |  710 |
| Fuel | light oil/heavy/LNG/CG |
| Fuel | Light oil | Kg/h | 37 | 52 | 69 | 140 | 210 | 280 | 350 | 420 | 680 | 1360 |
| LNG | Nm3/h | 44 | 63 | 83 | 170 | 260 | 332 | 425 | 498 | 810 | 1620 |
| Thermal efficiency | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% |
| Furnace oil cont ent | m3 | 0.25 | 0.3 | 0.5 | 1.1 | 1.7 | 2.29 | 3.8 | 4.3 | 7 | 15.5 |
| Boiler dimension s | mm | 2100× 1390× 2055 | 2200× 1390× 2055 | 3240× 1470× 2260 | 4145× 1900× 2786 | 5020× 2050× 3080 | 5526× 2326× 3230 | 6555× 2470× 3634 | 6753× 2838× 3704 | 8200× 3050× 3800 | 12000× 3780× 4350 |
| Boiler transport weight | T | 2.58 | 3 | 3.7 | 6.9 | 8.8 | 11.5 | 17.8 | 19.8 | 27.5 | 42 |
| Oil inlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Oil outlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Expansion tank | m3 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 3 | 3 | 4.5 | 6 | 8 |
| Storage tank | m3 | 2.5 | 2.5 | 2.5 | 5 | 5 | 8 | 8 | 10 | 15 | 25 |
| ChimneyΦ | mm | 280 | 280 | 280 | 350 | 400 | 400 | 500 | 500 | 700 | 1000 |
Work flow chart:
