PLC High Temperature Thermal Oil Boiler For Plywood

HENAN TAIGUO BOILER PRODUCTS CO.,LTD.
Contact Now

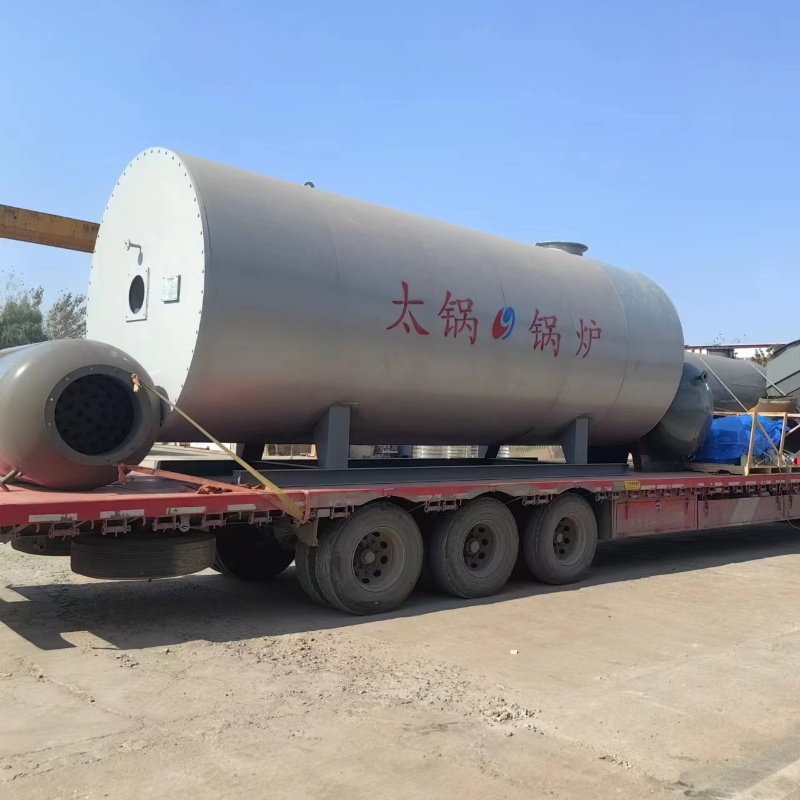

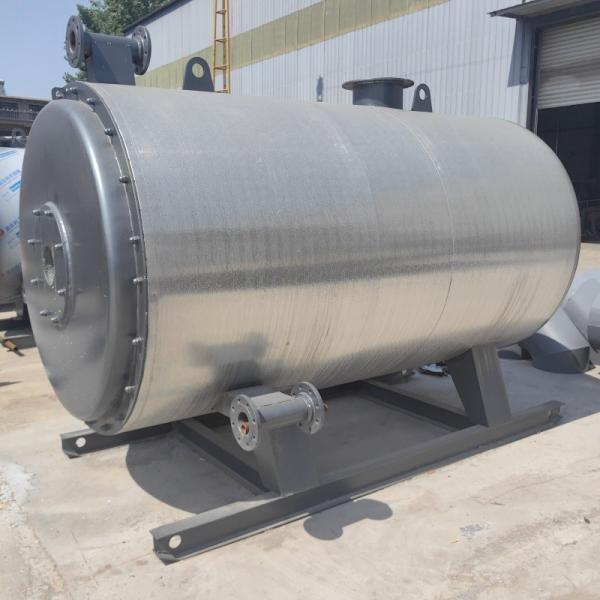

PLC High Temperature Thermal Oil Boiler For Plywood

  • 1
  • 2

Brand Name : TAIGUO

Model Number : YYQW-720Y

Certification : CE\EAC\SGS\ISO19001

Place of Origin : HENAN

MOQ : 1

Price : US9000-29500 set

Payment Terms : T/T, D/P

Supply Ability : 10set

Delivery Time : 15-25DAYS

Packaging Details : Whole box packaging

Burner : Customized

Capacity : Customized

Control System : PLC or DCS

Design : Horizontal or Vertical

Efficiency : High

Fuel : Oil

Installation : On-site or Factory

Material : Carbon Steel or Stainless Steel

Pressure : Customized

Safety : High

Service : OEM or ODM

Temperature : Customized

Type : Thermal Oil Boiler

Warranty : 1 Year

Contact Now

Product introduction:

The heat -conducting oil furnace is directly heated in the electric heating device directly into the organic carrier (thermal conductivity), and the heated thermal conductive oil is transported to the heat -using equipment through the high temperature oil pump for the hydraulic cycle. Heating the electric oil furnace is heated to form a complete circulating heating system. The electric heating heat -conducting oil furnace uses a digital temperature control temperature control temperature, which has ultra -temperature alarm, low oil level alarm, and ultra -pressure alarm function.
This series of boilers has a high -level program control system, equipped with liquid level controller, pressure controller, temperature controller and alarm to ensure the orderly work of the boiler. Therefore, this is a safe boiler with high efficiency and low power consumption.

Product advantage:

1. It has the characteristics of low pressure, high temperature, safety, and efficient energy saving.
2. With complete operational control and safety monitoring devices, the working temperature can be precisely controlled.
3. Reasonable structure, complete supporting, short installation cycle, convenient operation and maintenance, and facilitate boiler layout.
4. Because the electric heating organic heating carrier uses an advanced explosion -proof structure, it can be applied to the factory II explosion -proof, and the explosion -proof level can reach Class C.

Technical parameter:

PLC High Temperature Thermal Oil Boiler For Plywoodmodel

ltem

YY(Q)W

350

YY(Q)W

500

YY(Q)W

700

YY(Q)W

1400

YY(Q)W

2100

YY(Q)W

2800

YY(Q)W

3500

YY(Q)W

4200

YY(Q)W

7000

YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 PLC High Temperature Thermal Oil Boiler For Plywood710
Fuel light oil/heavy/LNG/CG

Fuel

Light oil

Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG

Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5

Boiler dimension

s

mm

2100×

1390×

2055

2200×

1390×

2055

3240×

1470×

2260

4145×

1900×

2786

5020×

2050×

3080

5526×

2326×

3230

6555×

2470×

3634

6753×

2838×

3704

8200×

3050×

3800

12000×

3780×

4350

Boiler transport weight

T

2.58

3

3.7

6.9

8.8

11.5

17.8

19.8

27.5

42

Oil inlet

DN

80 100 100 125 150 150 200 200 250 350
Oil outlet

DN

80 100 100 125 150 150 200 200 250 350
Expansion tank

m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank

m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000

PLC High Temperature Thermal Oil Boiler For PlywoodPLC High Temperature Thermal Oil Boiler For Plywood
